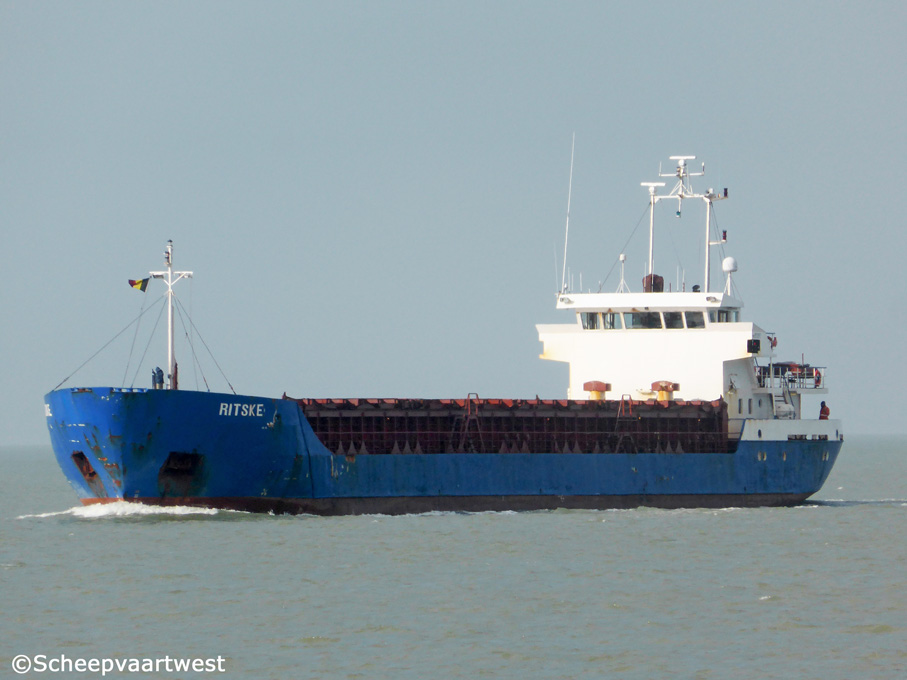

Ritske 13

Westerschelde 10 March 2015

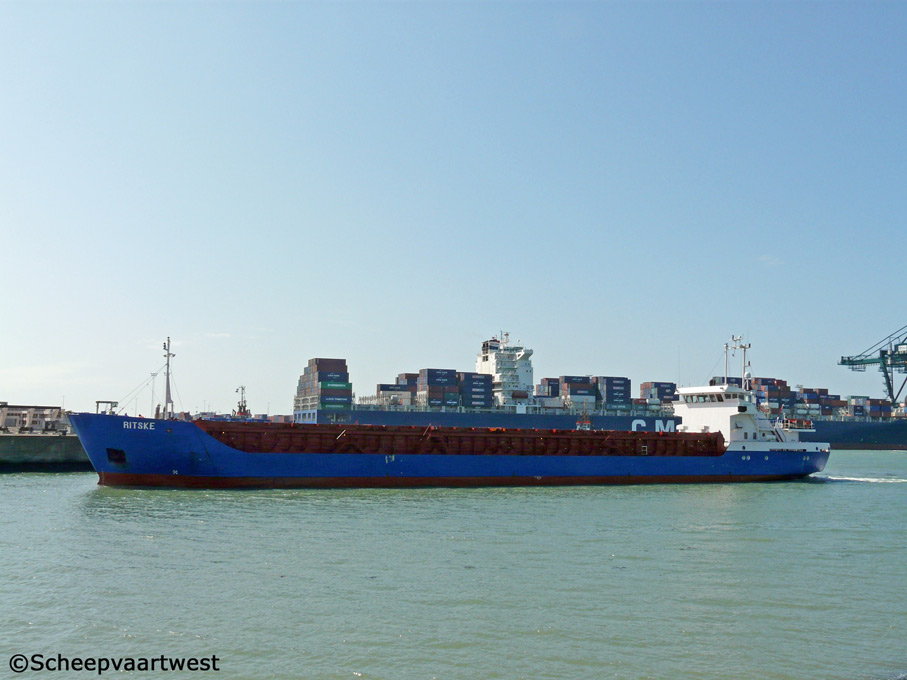

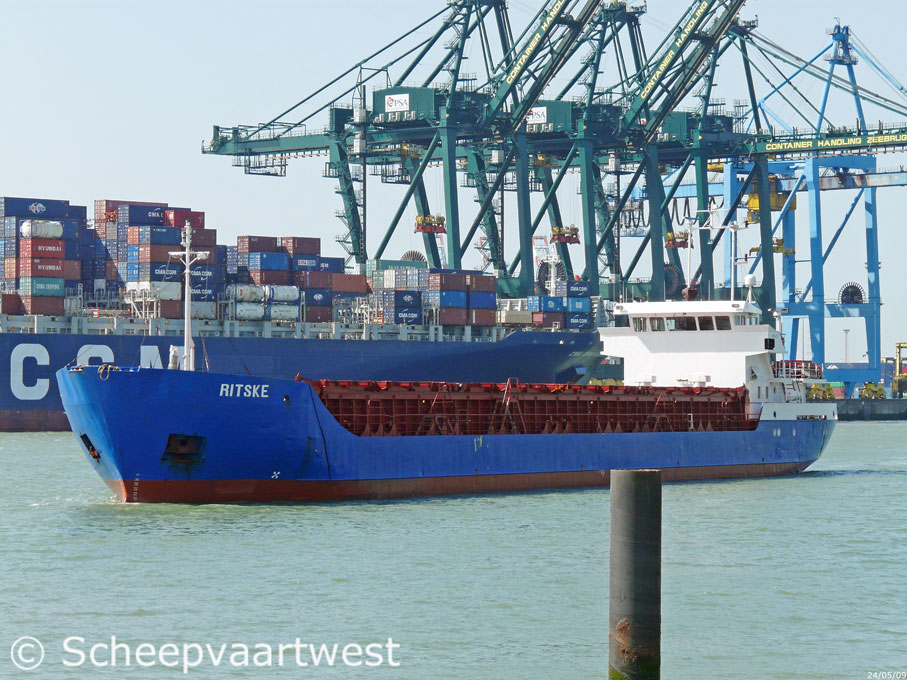

Ritske 11   Ritske 08   Ritske Ritske 03

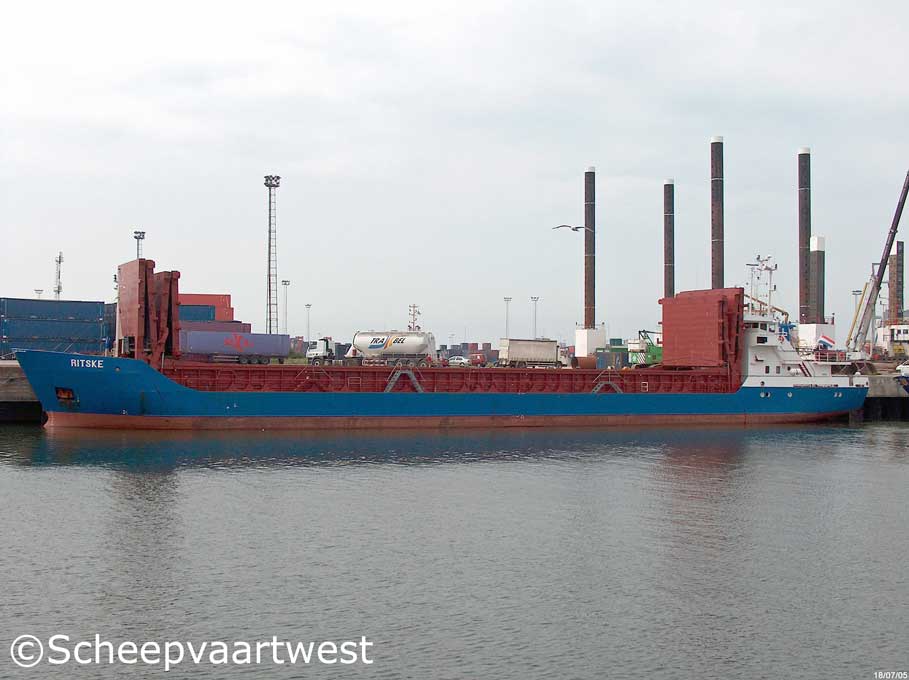

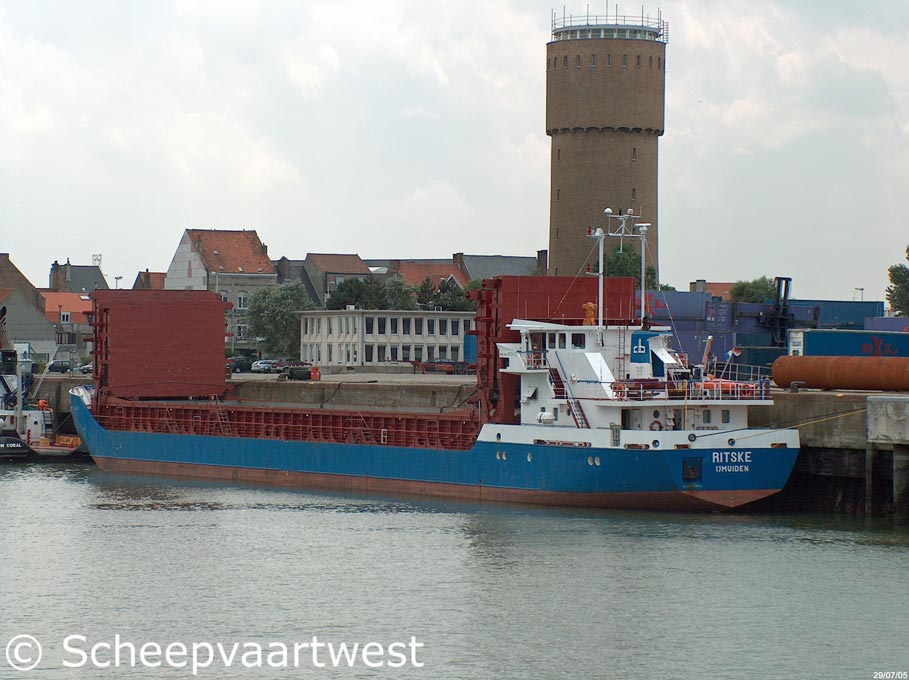

Zeebrugge 24/05/09 Zeebrugge 24/05/09 Zeebrugge 18/07/05 Zeebrugge 29/07/05



Name

RITSKE

Previous names

Launche as: Elena

1990 - 04.1992 Hanse Contor

04.1992 - 06.2005 Hanse
06.2005 Ritske

Type

General cargo ship - Cement cargo

IMO-number

8913473

Call sign

PHDM

Flag

The Netherlands

Port of registry

IJmuiden

Previous flag

1990 - 1992 Germany, Hamburg - Call sign: DGBR

1999 - 06.2005 Germany, Leer - Call sign: DGBR

GT

1.508 t

DWT

Summer: 1.688 t

NT

521 t

Number of 20 ft containers

80

Length

79,70 m overall
75,60 m between perpendiculars

76,34 m registered

Breadth

10,90 m over all

Draught

Summer: 3,53 m

Freeboard

1.975 mm

Depth

5,50 m moulded

Speed

10,5 knots

Built

1990

Keel laid

27.06.1989

Launch date

08.05.1990

Delivery date

23.06.1990

Builder

Shiffswerft Julius Diedrich GmbH & Co K.G
Oldersum

Moormerland
German Federal Republic

Yard number

161

Hull material

Steel

Hull type

Double hull

Watertight compartments

6

Continuous decks

2

Main engine

1x Deutz Type SBV6M628 - 4 stroke 6 cylinder 240 x 280 mm diesel engine - 670 kW/ 910 hp at 680 rpm

Built: 1990

Builder: Klöckner-Humboldt-Deutz A.G., Cologne (Köln) – Germany

Elec. propulsion generator

1x 58 kW - 380 V

Propelling system

1x Screw propeller solid at 280 rpm

Electrical installation

Power Voltage: 380 V

Lighting Voltage: 220 V

Frequency: 50 Hz

Generators

1x Diesel generatorset 72 kVA - 58 kW - 92 hp
1x Diesel generatorset 144 kVA - 115 kW - 177 hp

1x Diesel generatorset 78 kVA - 62 kW - 101 hp

Cargo holds

1

Cargo hold capacity

Grain: 2.797 m³

Bale: 2.791 m³

Crew

6

Manager

Cebo Marine BV
Westerduinweg 4
1976 BV IJmuiden
The Netherlands

Previous names & manager

06.1990 Hanse Contor - Detlef Jensen & Co. Schiffahrts und Reedereigesellschaft m..b.H., Hamburg - German Federal Republic

1992 Hanse - Briese Schiffahrts G.m.b.H., Leer - Germany

Owner

Cebo Marine BV
Westerduinweg 4
1976 BV IJmuiden
The Netherlands

Previous names & owners

06.1990 Hanse Contor - Schiffahrts G.m.b.H. & Co. K.G., Hamburg - German Federal Republic

1992 Hanse - m.s. Pogum, Leer - Germany

Renamed

11.2015 Gramfjord - St. Kitts, Basseterre – Call sign: V4JU3

Latest data adjustment

10 January 2016
