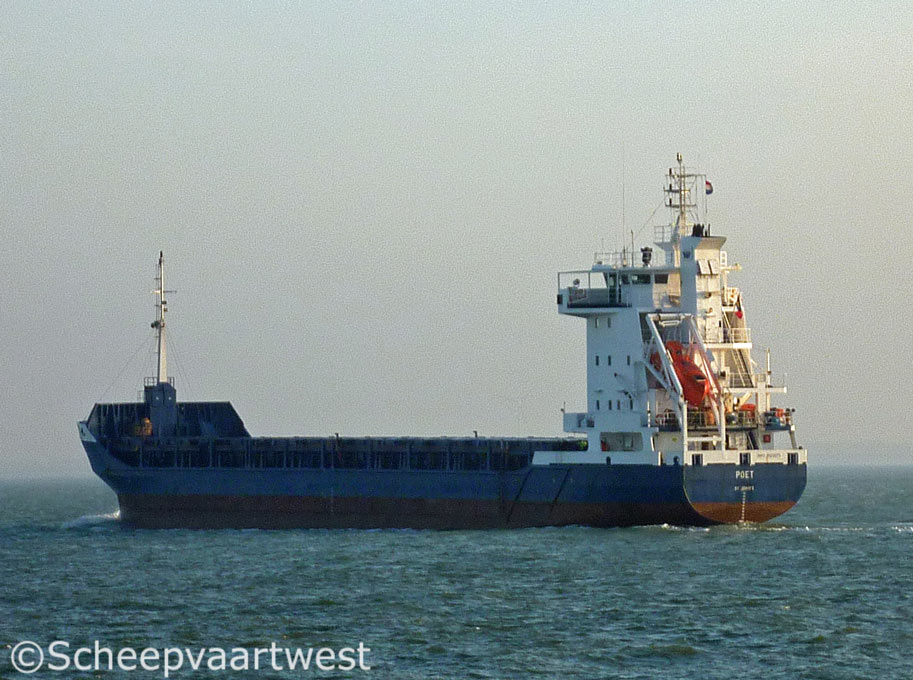

Poet 01
Westerschelde 18 November 2011



Name

POET

Previous names

1997 - 17.04.2000 German Feeder

Type

General cargo ship - Equipped for carriage of containers, strengthened for heavy cargo

IMO-number

9125073

Call sign

V2LA9

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.997 t

DWT

4.444 t

NT

1.741 t

Number of 20ft containers

On deck: 168

In hold: 129

Total: 297

Reefer capacity

30 Reefer plugs on deck

Length

99,88 m overall

95,52 m between perpendiculars

95,80 m registered

Breadth

12,80 m

Draught

5,666 m

Forecastle

6,803 m

Poop

15,937 m

Depth

7,55 m moulded

Speed

13,0 knots

Built

1997

Keel laid

29.03.1996

Launch date

25.02.1997

Date of completion

23.06.1997

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

3004

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Deutz MWM TBD 645 L 6 - 4 stroke 6 cylinder 330 x 450 mm diesel engine - 2.550 kW at 600 rpm

Year of manufacture: 1995

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of German

Reduction gear

Reintjes AF 4425 K 41

Propeller

1x Controllable pitch propeller BERG 710 HX/4 HDX 40 - aft at 304 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Year of manufacture: 1996

Electric installations

2x Plant 380/220 V - 210 kVA

1x Plant 380 V - 800 kVA

1x Plan t380 V - 49 kVA

Shaft generator

1x AEMSE 400 M4 - 800 kVA

Diesel generators

2x DEUTZ MWM TBD 234 V8 - 4 stroke 8 cylinder diesel engines each 190 kW at 1.500 rpm coupled with 2 PILLER NKT 220-4 generators each 210 kVA at 1.500 rpm 3x 400 Volt, 50 Hz

Emergency generator

1x DEUTZ F6L912 - 4 stroke 6 cylinder diesel engine 47 kW at 1.500 rpm coupled with PILLER NKT 50-4 generator 49 kVA at 1.500 rpm, 3x 400 Volt, 50 Hz

Compressed air receivers

2x SAUER & SOHN WP 22 L receivers each 355 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 10 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM Type BU-40F - 220 kW, forward

Cargo capacity

Grain: 5.841 m³ / 204.296 ft³

Number of holds

1

Number of hatch

2x System MacGREGOR Multifold crocodile

Hatch 1: 37,95 x 10,20 x 8,17 m

Hatch 2: 31,20 x 10,20 x 8,17 m

Tank capacities

Gas oil: 196 t

Ballast water 1.702 t / 1.685 m³

Anchor equipment

3x Anchors weight each 2.100 kg
Chain length: 440,00 m

Hold ventilation

6 times

Manager

Wessels Reederei GmbH & Co. KG
Industriestr. 12
49733 Haren/Ems
Federal Republic of Germany

Owner

MS "GERMAN FEEDER" WESCO Shipping GmbH & Co. KG
Industriestr. 12
49733 Haren/Ems
Federal Republic of Germany
