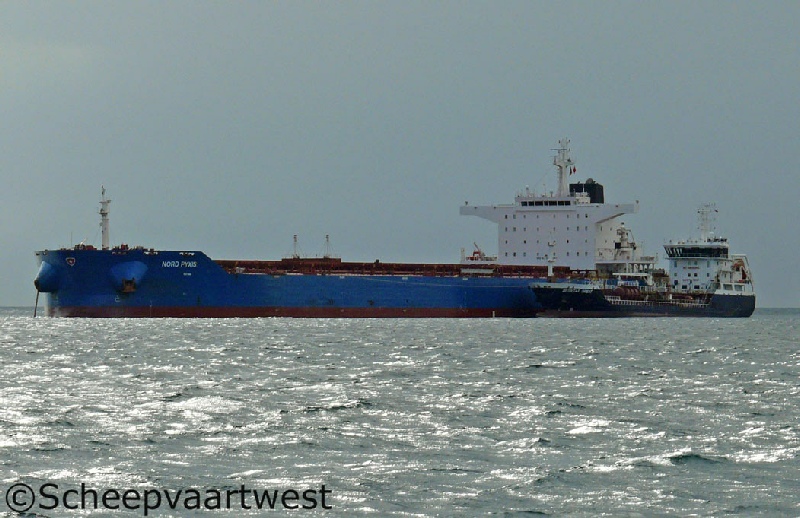

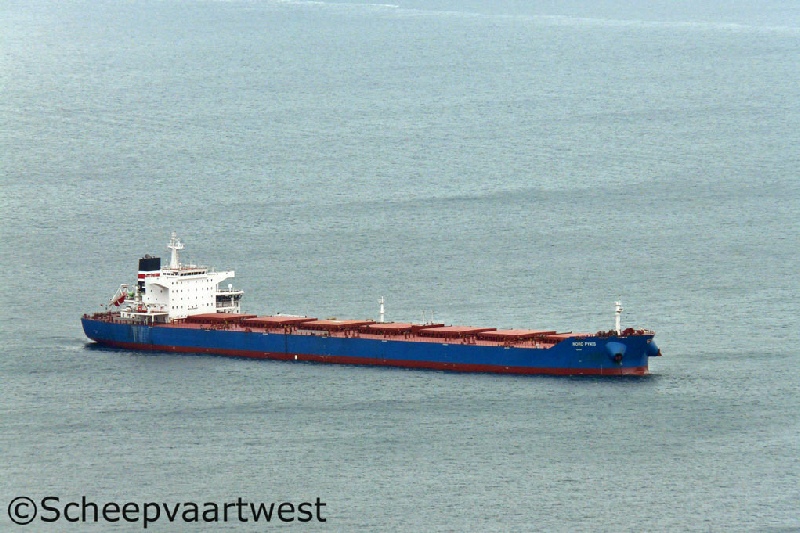

| Gibraltar 21 September 2012 |
 |
| Gibraltar 21/09/11 |
|
Name |
NORD PYXIS |
|
Type |
Bulk carrier |
|
IMO-number |
9448047 |
|
Call sign |
9V8706 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
63.864 t |
|
DWT |
114.500 t |
|
NT |
35.665 t |
|
Length |
250,00 m overall 240,00 m between perpendiculars |
|
Breadth |
43,00 m |
|
Draught |
14,50 m |
|
Freeboard |
6.328 mm |
|
Depth |
21,30 m |
|
Speed |
14,7 knots |
|
Built |
2010 |
|
Date of completion |
30.06.2010 |
|
Builder |
Shanghai Shipyard Co.,Ltd. |
|
Yard number |
SS1141 |
|
Hull material |
Steel |
|
Watertight compartments |
9 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN B&W 7S60MC-C7 - 2 stroke 7 cylinder 600 x 2.400 mm diesel engine - 15.520 kW / 21.495 hp at 105,0 rpm Built: 25.01.2010 Builder: Hyundai Heavy Industries Co.,Ltd., Ulsan - South Korea |
|
Propelling system |
1x Screw propeller solid at 105 rpm |
|
Boilers |
1x CHM Aalborg 343,00 m² - 9,0 bar |
|
Diesel generators |
3x Diesel generatorsets each 938 kVA - 750 kW - 1.087 hp |
|
Emergency generators |
1x Diesel generatorset 188 kVA - 150 kW - 245 hp |
|
Number of holds |
7 |
|
Number of hatches |
7 |
|
Cargo capacity |
Grain: 131.202 m³ Bales: 125.598 m³ |
|
Manager |
Dampskibsselskabet Norden A/S Strandvejen 52 |
|
Operator |
Norden A/S Dampskibsselskabet |
|
Owner |
Norden Shipping (Singapore) Pte. Ltd. |
