| Antwerpen 20 May 2011 |
|
Name |

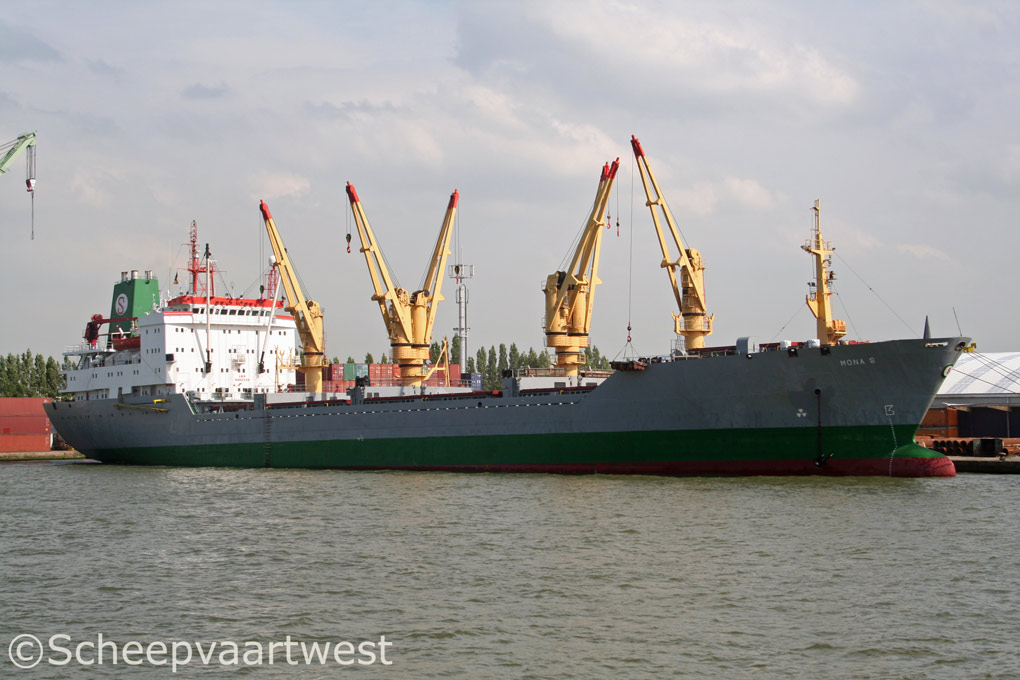

MONA S |
|
Previous names |
1987 - 2000 Lubin II |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
8302210 |
|
Official number |
317/L |
|
Call sign |
YKNT |
|
Flag |
Syrian Arab Republic |
|
Port of registry |
Lattakia |
|
GT |
11.573 t |
|
DWT |
13.593 t |
|
NT |
6.179 t |
|
Number of 20ft containers |
323 |
|
Length |
149,51 m overall 140,76 m registered |
|
Breadth |
22,00 m registered |
|
Draught |
9,14 m |
|
Depth |
12,01 m moulded |
|
Speed |
16,0 knots |
|
Built |
1987 |
|
Keel laid |
24.01.1986 |
|
Launch date |
08.1986 |
|
Builder |
Stocznia Im. Komuny Paryskiey |
|
Yard number |
B354/03 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Cegielski 6 RTA 58 - 2 stroke 6 cylinder 580 x 1.700 mm diesel engine - 7.080 kW at 116 rpm Year of manufacture: 1985 Manufacturer: Zaklady Przemyslu Metalowego "H. Cegielski" |
|
Propeller |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,0 bar Heating surface: 62,6 m² 1x Steam boiler, exhaust gas heated - 7,0 bar Heating surface: 176,0 m² Year of manufacture: 1985 Manufacturer: Gdanska Stocznia Remontowa |
|
Electric installations |
1x Plant 380/220 V - 1.000 kVA 1x Plant 380/220 V - 1.000 kVA 1x Plant 380/220 V - 1.000 kVA 1x Plant 380 V - 1.300 kVA 1x Plant 380 V - 112 kVA |
|
Shaft generator |
1x 1300 kVA |
|
Generators |
3x Main diesel generatorsets each 1.000 kVA |
|
Emergency generator |
1x Diesel generatorset 112 kVA |
|
Compressed air receivers |
1x Receiver 400 litres - 30,0 bar 1x Receiver 160 litres - 30,0 bar 2x Receivers each 6.300 litres - 29,0 bar |
|
Bow thruster |
1x Transverse thruster - 590 kW, forward |
|
Cargo capacity |
Grain: 15.373 m³ Bales: 14.596 m³ |
|
Number of holds |
5 |
|
Number of hatches |
9 hatches, MacGregor type |
|
Ballast water |
3.205 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain Length: 577,50 m |
|
Lifting equipment |
5x Cargo cranes - SWL 12,5 t each 2x Derricks each SWL 5,0 t |
|
Manager |
Samin Shipping Co. Ltd. |
|
Owner |
Hassan Ali Samin Husein Mohamed Shehadeh Ahmad |
