| Antwerpen 13 April 2012 |
|
Name |

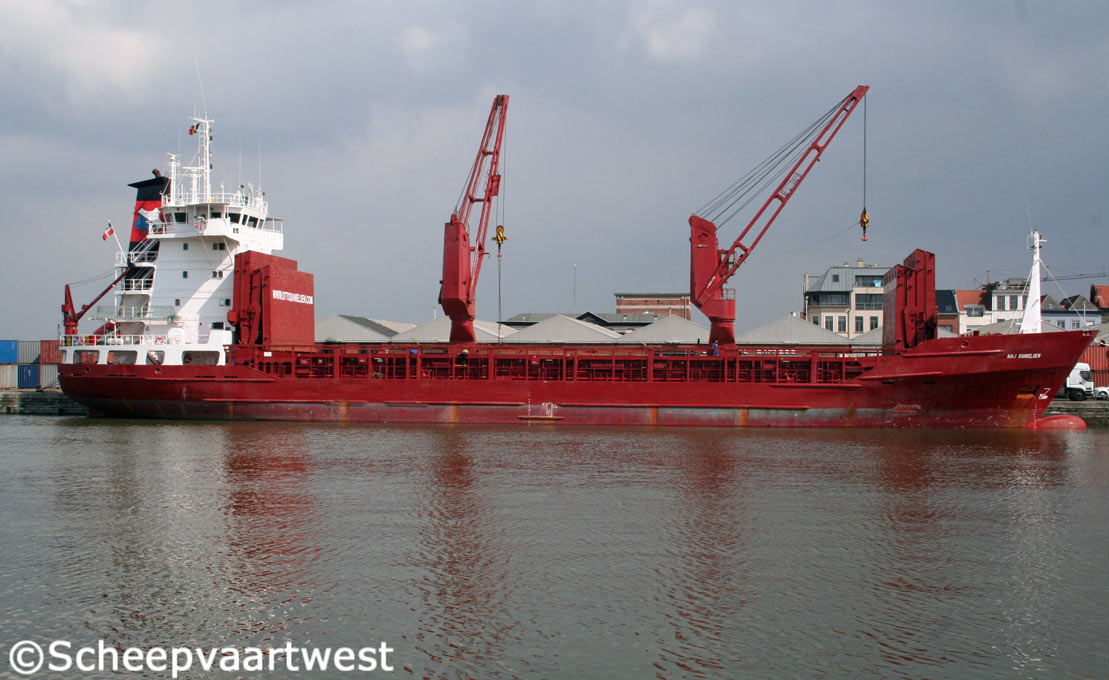

MAJ DANIELSEN |
|
Previous names |
02.11.1985 Tinto |
|
Type |
Multi-purpose caro vessel - Boxshaped single / Tweendecker |
|
IMO-number |
8500068 |
|
Call sign |
C6OO5 |
|
Flag |
Bahamas |
|
Previous flags |
1985 - 17.02.1987 Germany |
|
Port of registry |
Nassau |
|
GT |
3.120 t |
|
DWT |
Summer: 4.103 t |
|
NT |
1.733 t |
|
Container capacities |
256 TEU |
|
Container capacity 14 t |
170 |
|
Reefer point |
20 - 380 V 50 Hz |
|
Length |
88,60 m overall |
|
Breadth |
15,70 m overall |
|
Draught |
6,45 m |
|
Freeboard |
Summer: 1.855 mm |
|
Depth |
8,30 m |
|
Speed |
13,5 knots |
|
Built |
1985 |
|
Date of order |
01.01.1985 |
|
Launch date |
30.09.1985 |
|
Date of completion |
11.1985 |
|
Builder |
Sietas Schiffswerft, J J |
|
Yard number |
958 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight Compartments |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä Vasa 6R32- 4 stroke 6 cylinder 320 x 350 mm internal combustion diesel engine - 2.220 kW / 3.018 bhp at 720 rpm |
|
Elec. propulsion generator |
1x 750 kW |
|
Propelling system |
1x Screw propeller controllable pitch at 182 rpm |
|
Electrical installation |
Power voltage: 380 V |
|
Shaft generator |
1x 750 kW |
|
Generators |
2x Deutz BA6M816LLK-U diesel generatorsets each 349 bhp - 257 kW |
|
Bow thruster |
184 kW |
|
Tank capacities |
Bunker: 407 t |
|
Cargo Holds |
1x Boxlike, steel floored |
|
Cargo capacity |
Grain: 5.553 m³ / 196.099 ft³ |
|
Cargo Handling |
2x NMF Cranes - Each up to 30 t SWL. |
|
Hatchways |
1 |
|
Air change |
Electrically ventilated 25 air changes per hr |
|
Manager |
Danielsen Otto Rederiet |
|
Operator |
Danielsen Otto |
|
Owner |
Capricorn Shipping K/S |
