Laganborg IMO 9407419 04
Vlissingen, The Netherlands 16 April 2019

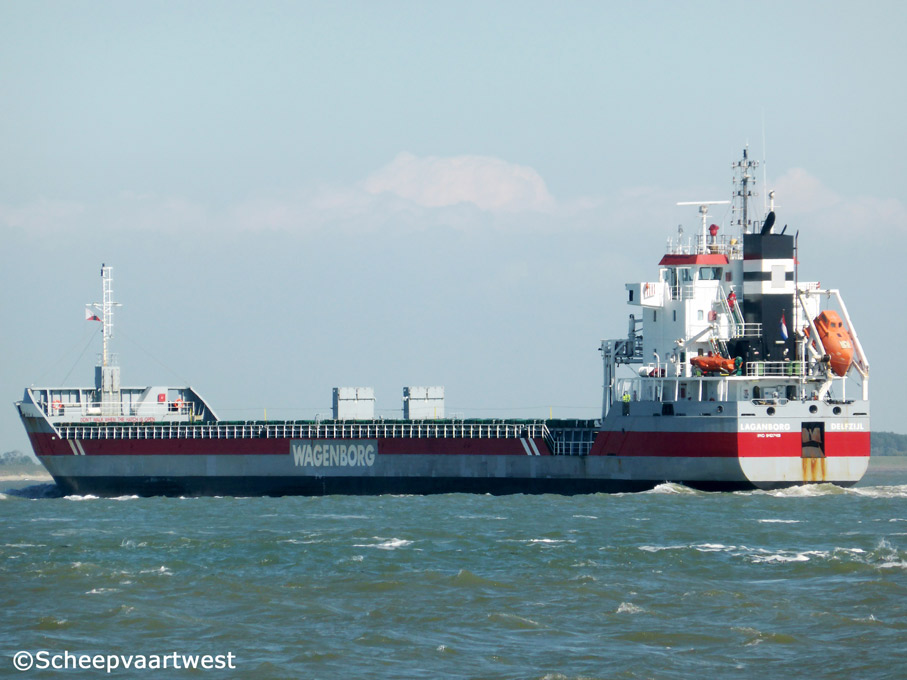

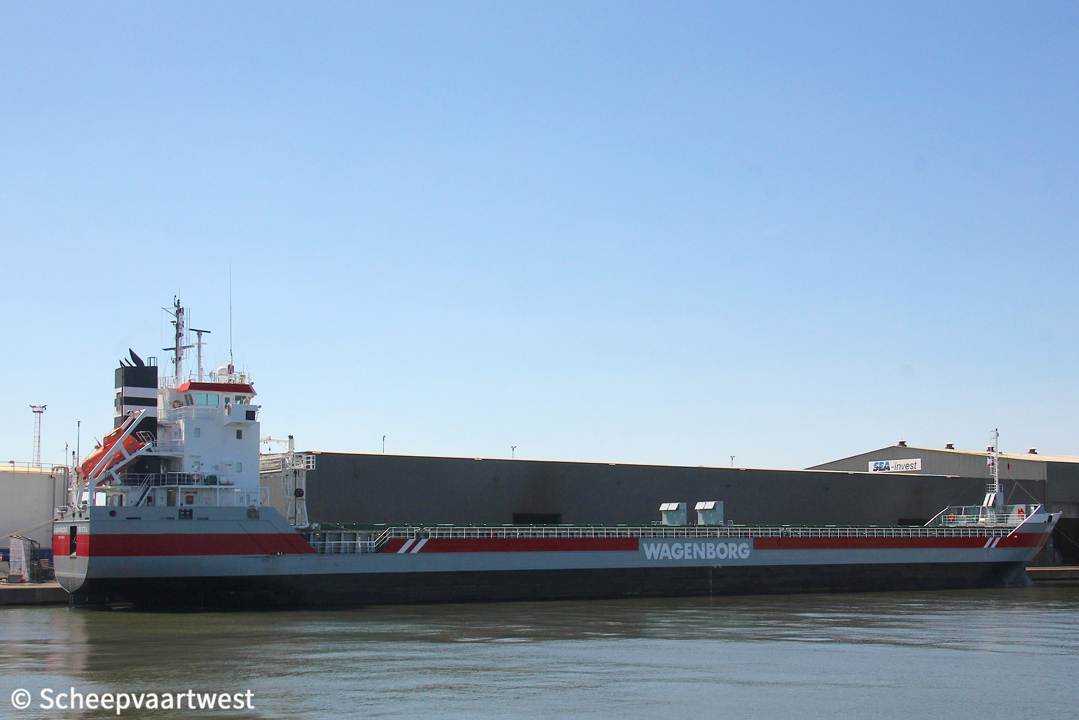

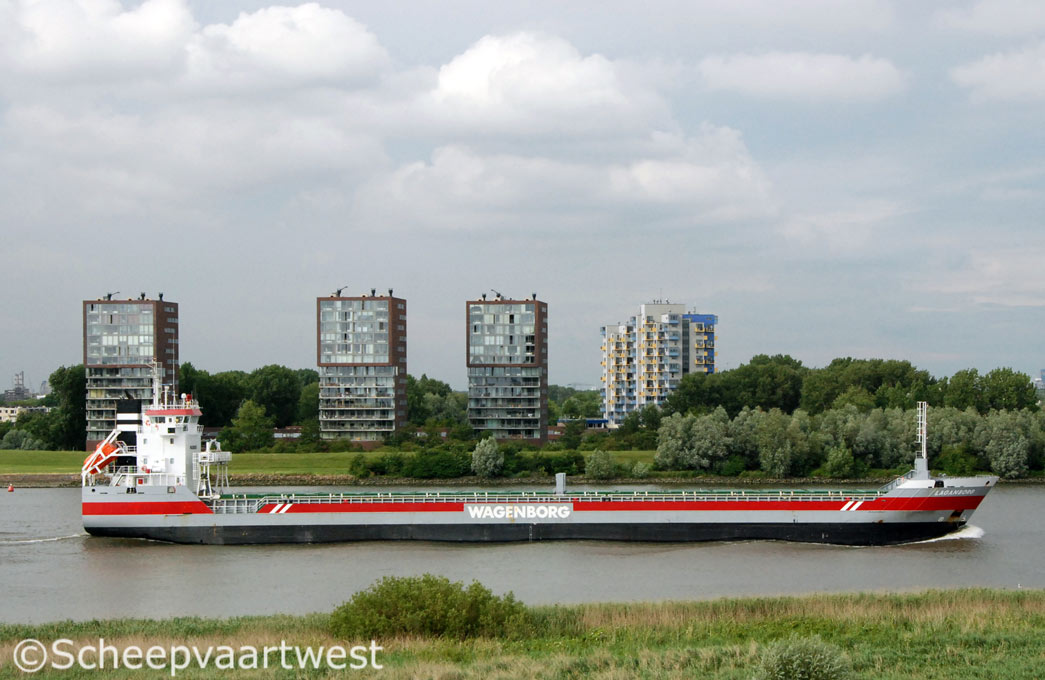

Laganborg 01   Laganborg 02   Laganborg 03
Spijkenisse 16/07/10 Westerschelde 21/05/15 Antwerpen 23/07/19



Name

LAGANBORG

Type

Multi-purpose dry cargo carrier - heavy cargo - Container ship

IMO-number

9407419

Call sign

PHQB

Flag

The Netherlands

Port of registry

Delfzijl

GT

4.695 t

DWT

7.433 t

NT

2.558 t

Number of 20ft containers

304

Length

122,34 m overall

115,97 m between perpendiculars

Breadth

14,40 m moulded

Draught

6,51 m

Air draft

32,40 m

Freeboard

1.613 mm

Speed

13,0 knots

Built

2008

Keel laid

20/12/2006

Launch date

09/10/2008

Delivery date

05/12/2008

Builder

Koninklijke Niestern Sander BV

Delfzijl

The Netherlands

Yard number

837

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

1x Caterpillar MaK 9M25C - 4 stroke 9 cylinder 255 x 400 mm combustion engine 2.970 kW / 4.035 hp at 750 rpm

Built: 2008

Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Electrical propulsion gen.

1x 275 kW - 400 Volt

Propelling system

1x Screw propeller controllable pitch at 194 rpm

Generators

1x Diesel generatorset 120 kVA - 96 kW - 150 hp

2x Diesel generatorsets each 231 kVA - 185 kW - 272 hp

Bow thruster

350 kW

Cargo capacity

323.779 ft³ / 9.163 m³

Number of holds

2

Hold 1: 45,18 x 11,71 x 8,98 m

Hold 2: 44,48 x 11,71 x 8,98 m

Number of hatches

2

Hatch 1: 45,18 x 11,71 m

Hatch 2: 44,48 x 11,71 m

Fuel capacity

377 m³

Manager

Koninklijke Wagenborg Shipping B.V

Delfzijl

The Netherlands

Operator

Wagenborg

Registered owner

Scheepvaartonderneming Laganborg B.V.

Delfzijl

The Netherlands

Latest data adjustment

18 February 2022
