| Antwerpen 16 April 2013 |
|
Name |

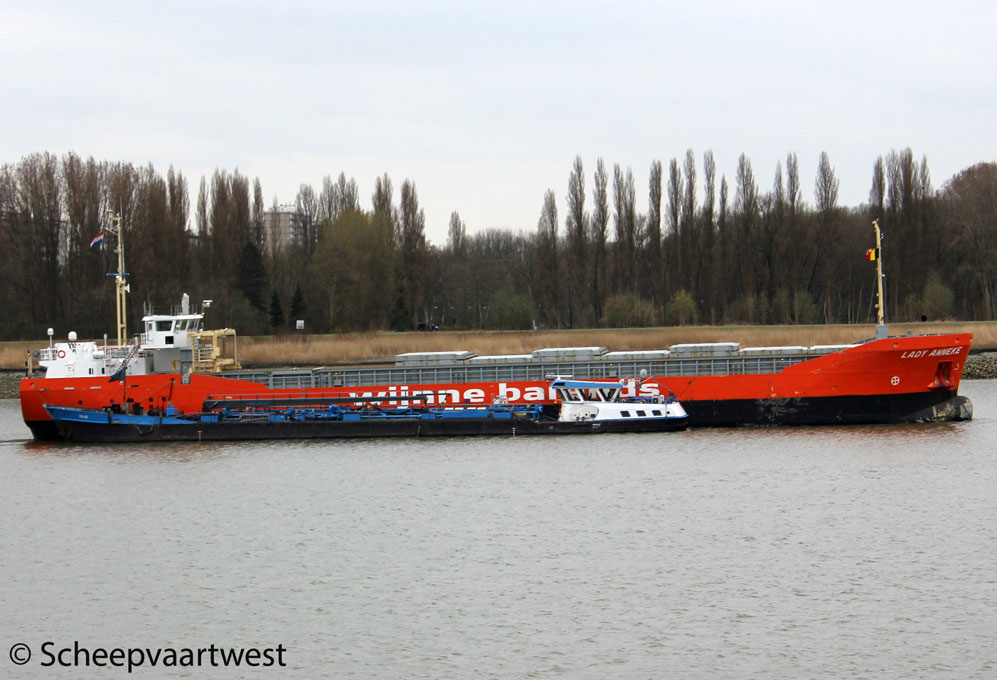

LADY ANNEKE |
|
Type |
General cargo ship |
|
IMO-number |
9624823 |
|
Call sign |
PCNQ |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
2.544 t |
|
DWT |
Summer: 3.718 t |
|
Length |
88,00 m |
|
Breadth |
13,39 m |
|
Draught |
Summer: 4,90 m loaded |
|
Air draft |
8,70 m in ballast |
|
Depth |
7,05 m |
|
Speed |
10,0 knots |
|
Built |
2012 |
|
Launch date |
16.12.2011 |
|
Date of completion |
18.04.2012 |
|
Builder |
Groningen Shipyard |
|
Yard number |
128 |
|
Hull material |
Steel |
|
Movable bulkhead |
2 |
|
Main engine |
1x Caterpillar 3508 (B) DI-TA electronic - 4 stroke single acting 8 cylinder 170 x 190 mm diesel engine - 746kW / 1.014 hp at 1.600 rpm Builder: Caterpillar Inc – USA |
|
Gearbox |
1x Reintjes type WAF 572 L Reduction: 7,474:1 |
|
Propellers |
1x Fixed pitch propeller - aft at 214 rpm |
|
Generators |
1x Caterpillar diesel generatorset C6.6 - 125 kW 1x Caterpillar diesel generatorset C4.4, - 65 kW |
|
Bow thruster |
1x Veth Jet type 4-K-1000V met vertical electro motor - 265 kW at 1.800 rpm |
|
Number of holds |
1 62,30 x 10,80 x 7,73 m |
|
Number of hatches |
1 Dimensions: 62,30 x 10,80 m |
|
Cargo capacity |
182.000 ft³ / 5.097 m³ |
|
Capacity timber |
5.300 m³ |
|
Manager |
Wijnne & Barends cargadoors B.V. |
|
Owner |
B.V. Beheermaatschappij Lady Anneke (Leon Grebennikov) |
|
Last update |
24.04.2013 |
