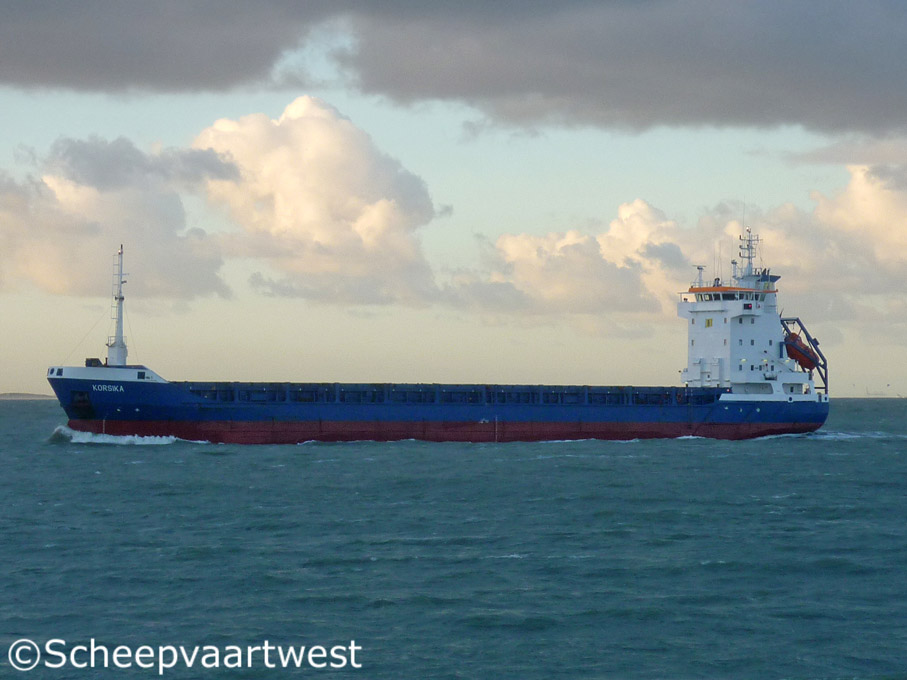

Korsika 01
Westerschelde 10 December 2011



Name

KORSIKA

Type

General cargo ship - Equipped for carriage of containers

IMO-number

9192636

Call sign

V2PR1

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.997 t

DWT

4.443 t

NT

1.741 t

Number of 20ft containers

In hold: 168

On deck: 129

Total: 297

Length

99,90 m overall

95,80 m registered

Breadth

12,80 m registered

Draught

5,67 m

Air draft

23,00 m

Depth

7,55 m

Speed

13,3 knots

Built

2001

Keel laid

23.04.1998

Launch date

29.11.2000

Date of completion

10.05.2001

Builder

Slovenske Lodenice a.s.
Rolnickej Skoly 1519
945 25 Komarno
Slovak Republic

Yard number

3022

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Deutz TBD 645 L 6 - 4 stroke 6 cylinder 330 x 450 mm diesel engine - 2.55 kW at 600 rpm

Year of manufacture: 1999

Manufacturer: Deutz MWM Motoren-Werke Mannheim AG
Mannheim
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 304 rpm

Boilers

1x Water heater, oil fired - 4,0 bar

Electric installations

2x Plant 380/220 V each 210 kVA

1x Plant 380 V - 844 kVA

1x Plant 380 V - 49 kVA

Shaft generator

1x 844 kVA

Generators

2x Main diesel generatorsets each 210 kVA

Emergency generator

1x Diesel generatorset 49 kVA

Compressed air receivers

1x Receiver 355 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 220 kW, forward

Number of holds

1

70,85 x 10,20 x 8,17 m

Number of hatches

2

Hatch 1: 37,95 x 10,20 m

Hatch 2: 31,25 x 10,20 m

Hatch type

Hydraulic folding type

Cargo capacity

Bales & Grain: 5.842 m³ / 206.310 ft³

Ballast water

1.705 m³

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440.00 m

Crew size

14

Manager

Bojen Bereederung GmbH & Co. KG
Borgwardring 80
26802 Moormerland
Federal Republic of Germany

Registered owner

Korsikahill Shipping Ltd.
60, Nevis Street
St. John's
Antigua and Barbuda
