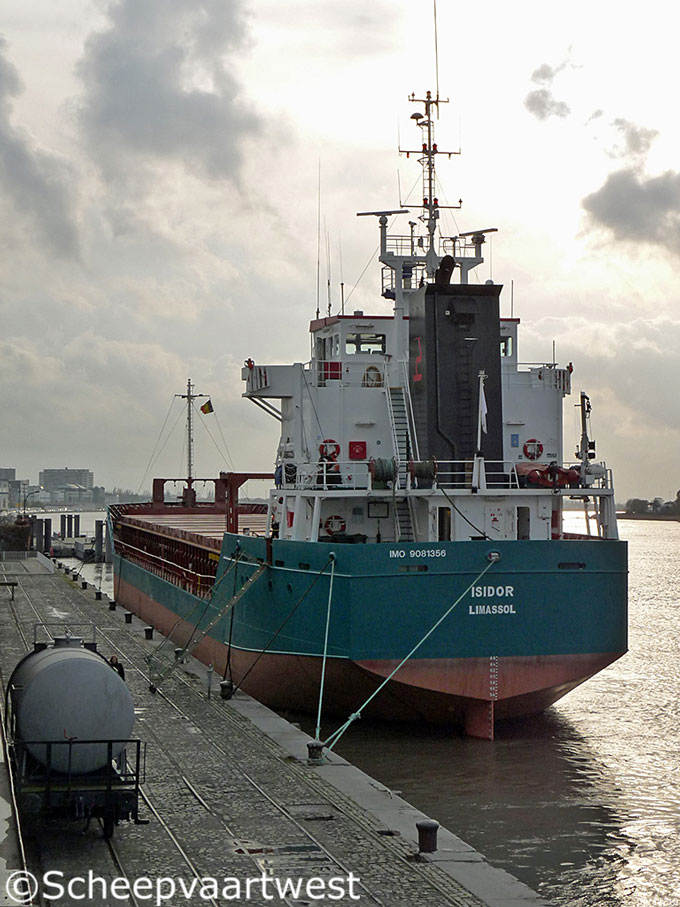

| Antwerpen 06 November 2010 |
 |
| Ant 06/11/10 |
|
Name |
ISIDOR |
|
Previous names |
1993 - 2005 Ikiena 29-11-2005 Isidor |
|
Type |
General cargo - Container facility |
|
IMO-number |
9081356 |
|
Call sign |
C4GU2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
2.735 t registered |
|
DWT |
4.273 t |
|
NT |
1.587 t registered |
|
Displacement |
6.521 t registered |
|
Number of 20ft containers |
190 Hold: 115 Deck: 75 |
|
Length |
89,56 m overall 84,80 m between perpendiculars |
|
Breadth |
13,17 m overall |
|
Draught |
Summer load: 5,70 m |
|
Air draft |
Min.: 18,60 m |
|
Distance keel to antenna |
Aft: 31,00 m, can be reduced to 22,50 m Fore: 21,00 m |
|
Distance keel to hatch coaming |
9,35 m |
|
Depth |
7,10 m moulded |
|
Speed |
12,0 knots |
|
Built |
1993 |
|
Date of completion |
15.10.1993 |
|
Builder |
Ferus Smit Scheepswerf BV |
|
Yard number |
294 |
|
Hull Type |
Single hull |
|
Bulkheads |
2x Portable bulkheads may be placed in 6 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x Nohab Wärtsilä 8V25 - 8 cylinder diesel engine - 1690 kW Built: Sweden 1993 |
|
Propelling system |
1x Berg 800HX controllable pitch propeller - 4 blades |
|
Shaft alternator |
1x Shaft alternator |
|
Generator |
2x Valmet 620 DSG diesel engines each 90 kVA at 1.500 rpm coupled with 2 Stamford UCM274 E23 each 112 kVA 1x Valmet 411 DO - 40 kW at 1.500 rpm dieel generatorset |
|
Bow thruster |
1x 260 kW |
|
Holds |
1 63,70 x 10,85 x 8,35 m |
|
Hatches |
Hatch 1: 32,50 x 10,85 m Hatch 2: 30,50 x 10,85 m Coops en Nieborg system 10 steel pontoons moved by 1 travelling gantry crane |
|
Maximum loading |
Hatch top: 1,6 t/m² Tank top: 15,0 t/m² |
|
Cargo capacity |
Grain: 5.725 m³ |
|
Tank capacities |
Water ballast: 1.560,0 m³ Fuel: 215,0 m³ Fresh water: 52,0 m³ Lub oil: 6,0 m³ |
|
Crew size |
8 |
|
Manager |
Craftchart Fr. R. Kreutzwaldi 10-9 |
|
Previous owner |
1993 - 2005 Arklow Shipping Nederland B.V. |
|
Registered owner |
Intermar Prosperity Shipping Co Ltd. |
