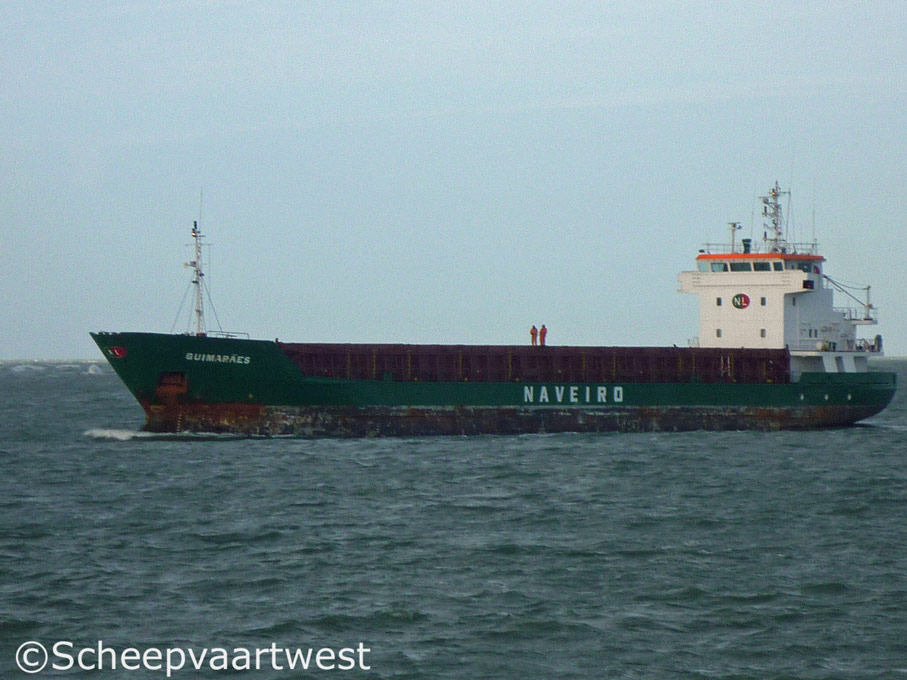

| Westerschelde 13 September 2011 |
|
Name |
GUIMARAES |
|
Previous names |
24.02.1994 Patricia |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9006344 |
|
Call sign |
CQOL |
|
Flag |
Madeira - Portugal |
|
Port of registry |
Funchal |
|
GT |
2.450 t |
|
DWT |
3.715 t |
|
DWCC |
Summer: 3.450 t Winter: 3.550 t |
|
NT |
1.380 t |
|
Number of 20ft containers |
144 |
|
Length |
87,86 m overall 81,84 m registered |
|
Breadth |
12,80 m registered |
|
Draught |
5,468 m |
|
Forecastle |
6,40 m |
|
Depth |
7,10 m moulded |
|
Speed |
10,0 knots |
|
Built |
1994 |
|
Keel laid |
01.03.1993 |
|
Launch date |
20.10.1993 |
|
Date of completion |
03.1994 |
|
Builder |
Peene + S Werften GmbH |
|
Yard number |
409 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x MWM-Deutz SBV 8 M 628 - 4 stroke single acting 8 cylinder 240 c 280 mm diesel engine - 1.500 kW at 900 rpm Year of Manufacture: 1991 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propeller |
1x Solid propeller - aft at 228 rpm |
|
Boiler |
1x Water heater, oil fired - 4,0 bar Heating surface: 4,71 m² Year of manufacture: 1991 |
|
Electric installations |
1x Plant 400/220 V - 210 kVA 1x Plant 400/220 V - 210 kVA 1x Plant 400 V - 72 kVA |
|
Generators |
2x Main diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 72 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 184 kW, forward |
|
Number of holds |
1 Dimension: 56,54 x 10,20 m x 7,99 m |
|
Number of hatch |
1 Dimension: 56,54 x 10,20 m |
|
Type of hatch |
Hydraulic folding |
|
Cargo capacity |
Grain: 4.666 m³ / 163.381 ft³ Bales: 4.635 m³ / 160.159 ft³ |
|
Water ballast |
1.642 m³ |
|
Anchor equipment |
3x Anchors weight each 1.740 kg Chain length: 440,00 m |
|
Manager |
NAVEIRO |
|
Operator |
Naveiro - Transportes Maritimos |
|
Owner |
Besleasing e Factoring - Instituição |
|
Registered owner |
Naveiro Transportes Maritimos, S.A. |
