Westerschelde 15 April 2020 |
 |
 |
 |
||
| Westerschelde 21/11/12 | Westerschelde 01/04/16 | Westerschelde 24/07/15 | ||
|
Name |

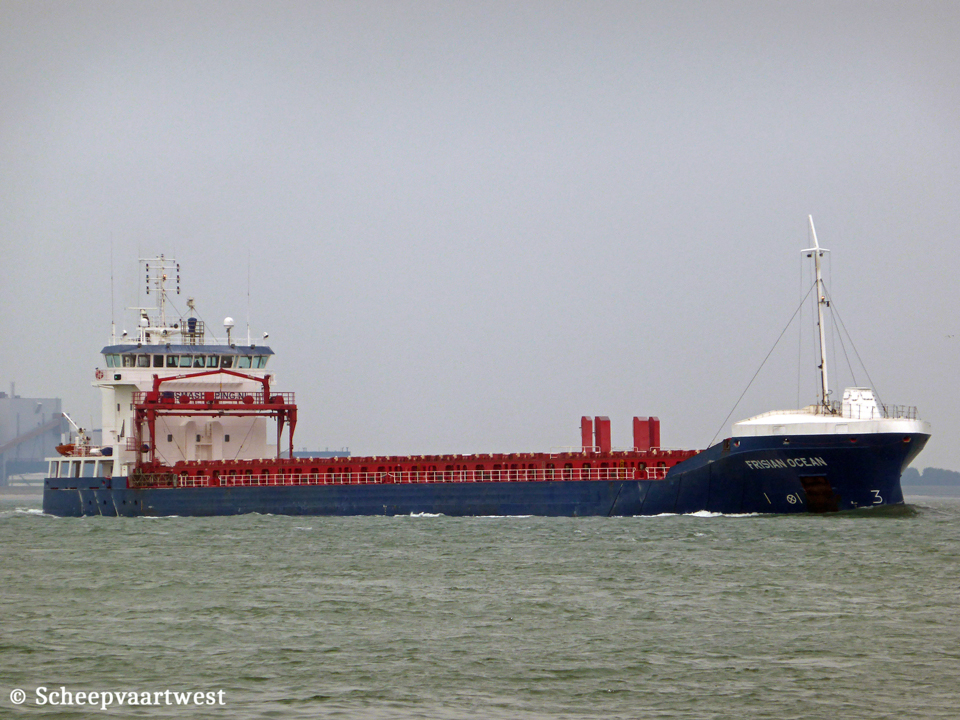

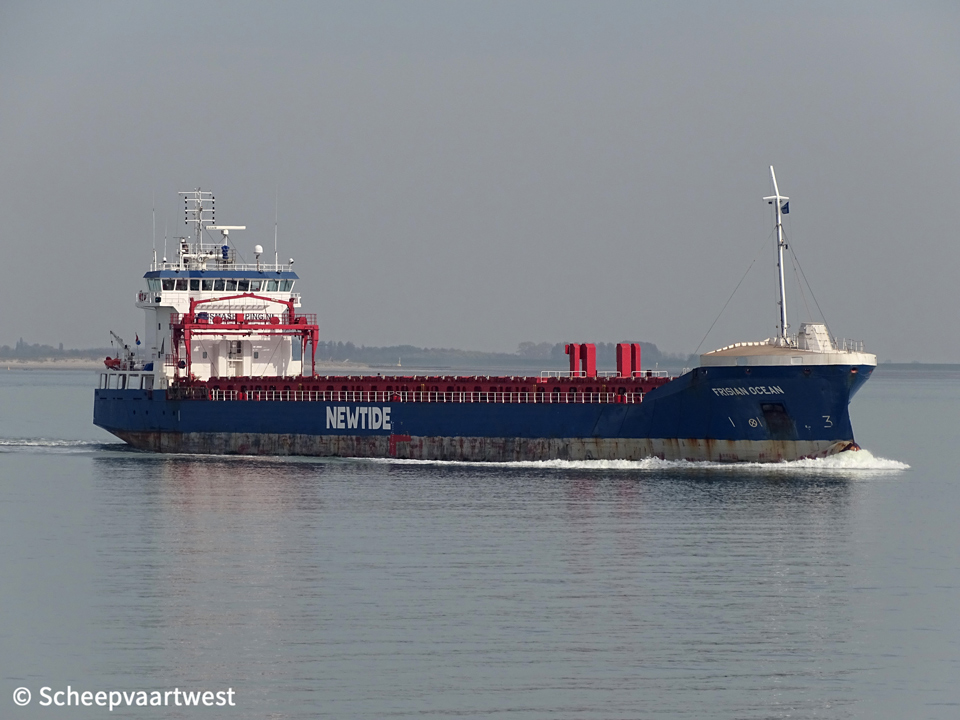

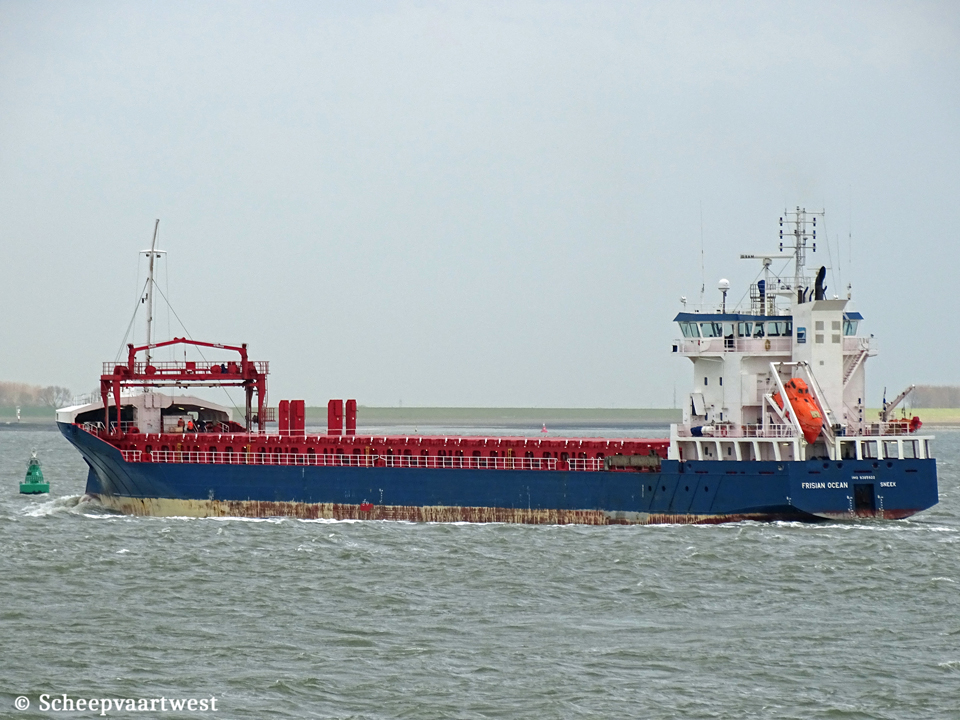

FRISIAN OCEAN |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9385922 |
|
Call sign |
PCFY |
|
Flag |
The Netherlands |
|
Port of registry |
Sneek |
|
GT |
5.904 t |
|
DWT |
Summer: 8.052,8 t |
|
DWCC |
Summer: abt 7.400 t full bunkers Winter: abt 7.150 t full bunkers |
|
NT |
2.710 t |
|
Number of 20ft containers |
355 |
|
Length |
128,45 m overall 123,59 m between perpendiculars |
|
Breadth |
16,07 m extreme 15,87 m moulded |
|
Draught |
Summer: 6,80 m |
|
Air draft |
25,50 m in ballast |
|
Depth |
9,90 m moulded |
|
Speed |
12,5 knots loaded 14,0 knots in ballast |
|
Built |
2011 |
|
Keel laid |
23/12/2008 |
|
Launch date |
25/04/2011 |
|
Delivery date |
01/09/2011 |
|
Builder |
Korabostroitelnitza Ruse AD (Rousse Shipyard J.S.C.) Rousse Bulgaria |
|
Yard number |
824 |
|
Hull material |
Steel |
|
Grain bulkhead |
2x Bulkheads in hold 2 |
|
Continuous decks decks |
1 |
|
Watertight bulkheads |
2x Grain bulkhead for 8 positions including storage positions |
|
Main engine |
1x MaK 6M32C - 64 stroke single acting 6 cylinder 320 x 480 mm combustion engine 2.999 kW / 4.078 bhp at 600 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
950 kVA |
|
Generators |
2x MAN D2876LE301 - 4 stroke 6 cylinder 128 x 166 mm diesel engines each 530 kW connected with generators each 328 kVA |
|
Emergency & harbour gen |
1x MAN D2866LXE20 diesel generatorset 242 kVA |
|
Bow thruster |
1x 500 kW |
|
Number of holds |
2x Box shaped Hold 1: 25,20 x 12,72 x 10,56 m Hold 2: 61,60 x 12,72 x 10,56 m |
|
Hold capacity |
Grain & bale: 10.980 m³ / 387.750 ft³ |
|
Hold ventilation |
6x Air changer/hour |
|
Number of hatches |
2 Hatch 1: 25,20 x 12,80 m Hatch 2: 61,60 x 12,80 m |
|
Type of hatch |
Pontoon covers |
|
Strength |
Tanktop strength 15 t/m² Hatch cover strength 1,75 t/m² |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Tank capacities |
Fuel oil: 489 m³ Diesel oil: 63 m³ Fresh water: 42 m³ Ballast water: 4.288 m³ |
|
Ventilation |
6x Air changes / hour |
|
Manager |
Boomsma Shipping BV Hegedyk 6 8601 ZR Sneek The Netherlands |
|
Commercial manager |
New Tide Maastoren - 32nd floor, Wilhelminakade 1 3072 AP Rotterdam The Netherlands |
|
Registered owner |
Frisian Ocean B.V. Hegedyk 6 8601 ZR Sneek The Netherlands |
|
Last update |
27 September 2024 |
