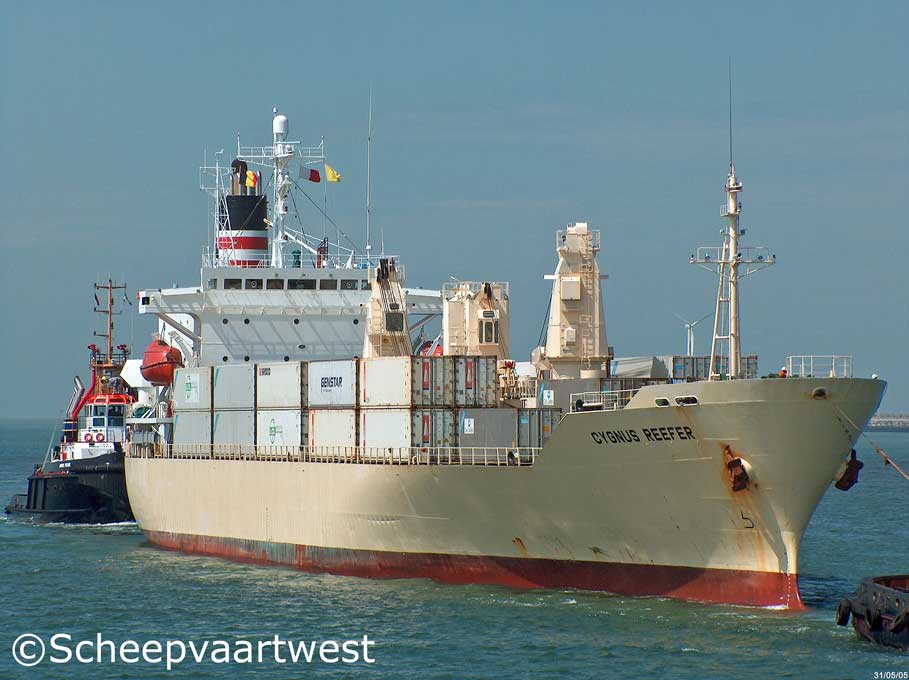

Cygnus Reefer
Zeebrugge 31 August 2005



Name

CYGNUS REEFER

Type

Frozen cargo
Refrigerated cargo ship / Containership

IMO-number

8911114

Call sign

ELLM6

Flag

Liberia

Port of registry

Monrovia

GT

8.818 t

DWT

9.683 t

NT

3.810 t

Length

144,03 m overall
136,00 m between perpendiculars
136,42 m registered

Breadth

21,60 m moulded

Moulded L x B x D

136,00 x 21,60 x 12,85 m

Registered L x B x D

136,42 x 21,60 x 12,85 m

Draught

Summer: 8,124 m

Freeboard

Summer: 4.762 mm

Depth

12,85 m moulded

Speed

Service: 20,5 knots

Trial: 21,3 knots

Built

1990

Keel laid

03.08.1989

Launch date

15.11.1989

Date of completion

02.03.1990

Builder

Shin Kurushima Dockyard Co. Ltd.
Onishi
Japan

Yard number

2657

Hull type

Single hull

Main engine

1x Mitsubishi model 6UEC52LS - 2 Stroke single acting 6 cylinder 520 x 1.850 mm diesel engine - 10.801 bhp / 7.945 kW at 120 rpm

Builder: Kobe Works Diesel Hatsudoki Co. Ltd., Kobe - Japan

Propeller

1x Fixed pitch

Boiler

1x Auxiliary vertical boiler - 6,9 bar
Evaporation: 2,56 t/h
Manufacturer: Tortoise Engineering Co. Ltd.

Generators

5x Diesel generatorsets 3.060 kVA

Number of cargo holds

4

Number of hatch covers

4

Number of tween decks

4

Cargo hold volume

12.833 m³ / 455.000 ft³

TEU: 76

FEU: 50

Tank capacities

Fuel oil: 1.275 m³

Fresh water: 252 m³

Water ballast: 1.725 m³

Cargo cranes

1x Crane - SWL 2,0 t

2x Cranes - SWL 30,4 t each
2x Cranes - SWL 5,0 t each

Manager

Wallem Group
Hong Kong
China

Owner

NYK Star Reefers Ltd.
London
United Kingdom

Registered Owner

NYK Reefers Limited
