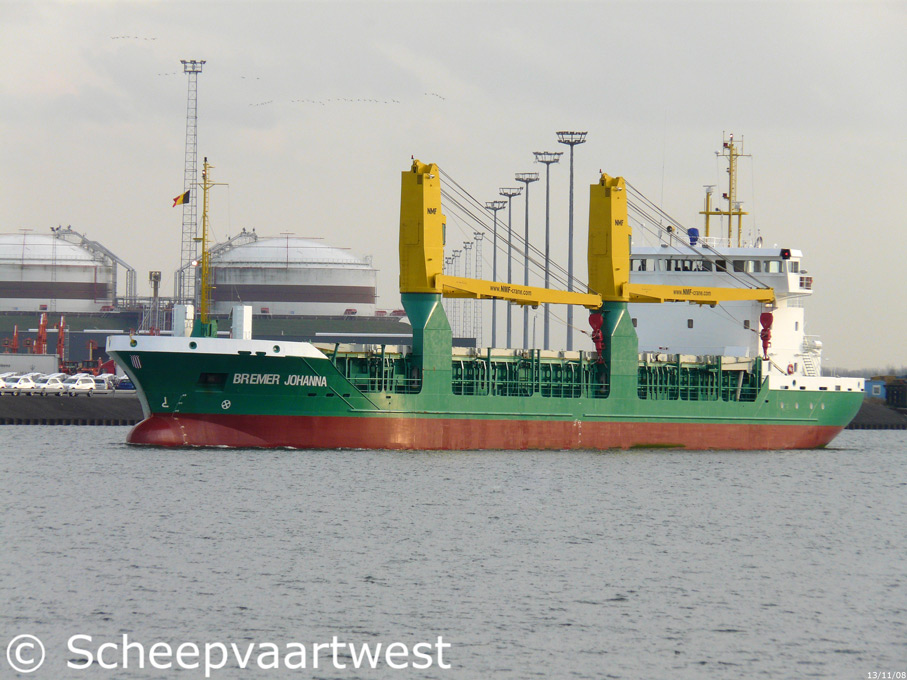

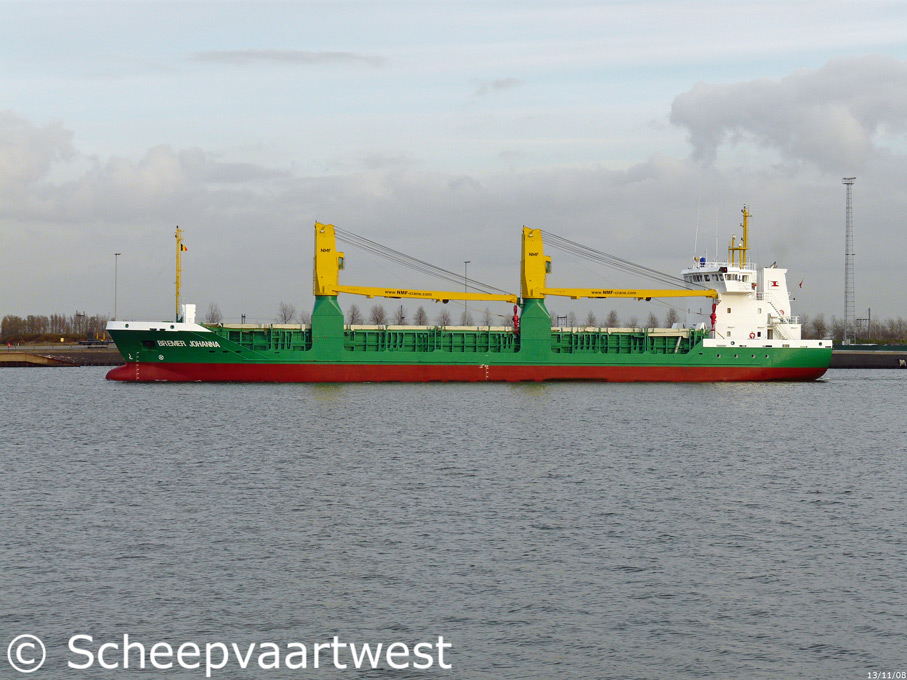

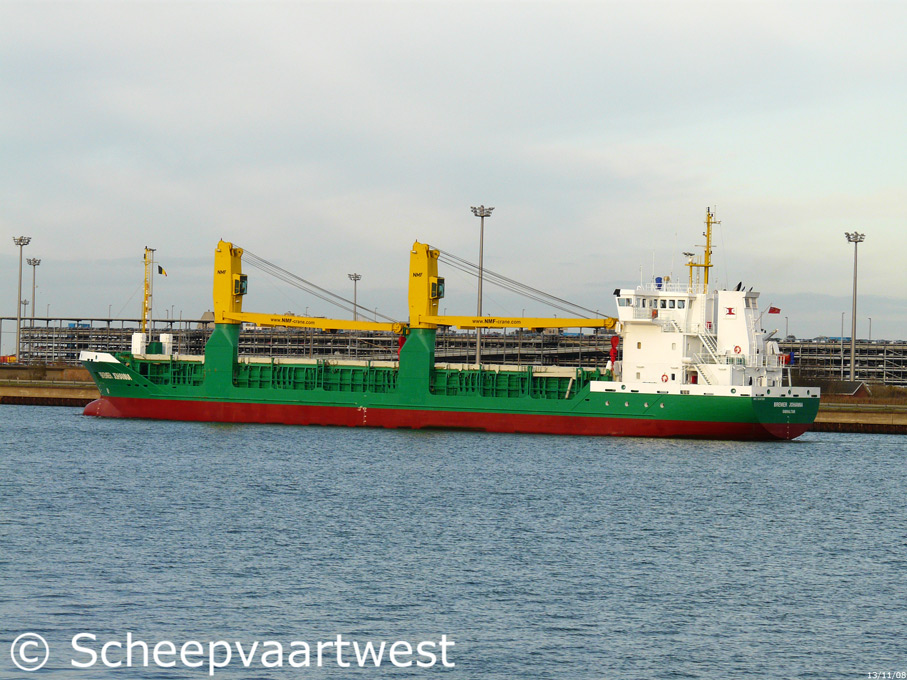

| Zeebrugge 13 November 2008 |
 |
 |
|
| Zeebrugge 13/11/08 | Zeebrugge 13/11/08 |
|
Name |
BREMER JOHANNA |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9347085 |
|
Call sign |
CQEQ9 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2009 - 2016 Gibraltar - Call sign: ZDIP5 2016 - 2021 Germany - Call sign: DEBK |
|
GT |
3.172 t |
|
DWT |
4.309,7 t |
|
DWCC |
4.100 t |
|
NT |
1.788 t |
|
Number of 20ft containers |
221 |
|
Length |
89,98 m overall 84,97 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
Max: 5,32 m In ballast: 3,70 m |
|
Keel to mast end |
31,50 m |
|
Air draft |
In ballast: 24,00 m |
|
Forecastle |
8,368 m |
|
Bridge |
51,75 m |
|
Quarterdeck |
14,985 m |
|
Freeboard |
1.596 mm |
|
Depth |
6,90 m moulded |
|
Speed |
12,5 knots |
|
Built |
2007 |
|
Keel laid |
22/06/1998 |
|
Launch date |
26/10/2007 |
|
Date of completion |
05/06/2008 |
|
Builder casco |
ATG Giurgiu Santierul Naval Giurgiu Romania |
|
Outfitting yard |
Shipbuilder Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
677 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine 1.850 kW / 2.515 hp at 750 rpm Year of manufacture: 2008 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propeller |
1x Controllable pitch propeller - aft at 221 rpm |
|
Boiler |
1x Water heater, oil fired - 5,0 bar Year of manufacture: 2006 |
|
Electric Installations |
1x Plant 400 V - 668 kVA 1x Plant 400 V - 435 kVA 1x Plant 400 V - 130 kVA |
|
Shaft generator |
1x 435 kVA |
|
Generators |
2x Volvo Penta D12D-A MG main diesel generatorsets each 280 kW / 334 kVA |
|
Emergency generator |
1x Volvo Penta D7A-T diesel generatorset 130 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Jastram BU 50F - 300 kW, forward |
|
Number of holds |
1x Boxshaped, vertical sides 57,05 x 12,65 x 8,26 m |
|
Cargo hold capacity |
Bale: 5.960 m³ Grain: 6.173 m³ |
|
Timber capacity |
5.500 m³ |
|
Hold ventilation |
6x Air-changes/h |
|
Number of hatches |
2 Pairs of hydraulic folding 57,05 x 12,65 m |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,6 t/m² |
|
Tank capacities |
Ballast: 2.121,12 m³ Fuel oil: 201 m³ Gasoil: 50 m³ Fresh water: 40 m³ |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m Diameter: 36 mm |
|
Cranes |
2x NMF deck cranes portside - SWL 36,0 t each Max. outreach: 22,00 m |
|
Crew |
8 |
|
Crew size |
10 |
|
Commerical manager |
Kapitaen-Alexander-Strasse 16 27472 Cuxhaven Germany |
|
ISM manager |
Briese Dry Cargo GmbH & Co., KG Hafenstrasse 12 26789 Leer Germany |
|
Registered owner |
Breb GmbH & Co., KG Kapitaen-Alexander-Strasse 16 27472 Cuxhaven Germany |
|
Renamed |
09/2021 Ocean Express Republic of Panama, Panama City - Call Sing: HOA4935 Owner: Caribship LLC |
|
Latest data adjustment |
21 December 2021 |
