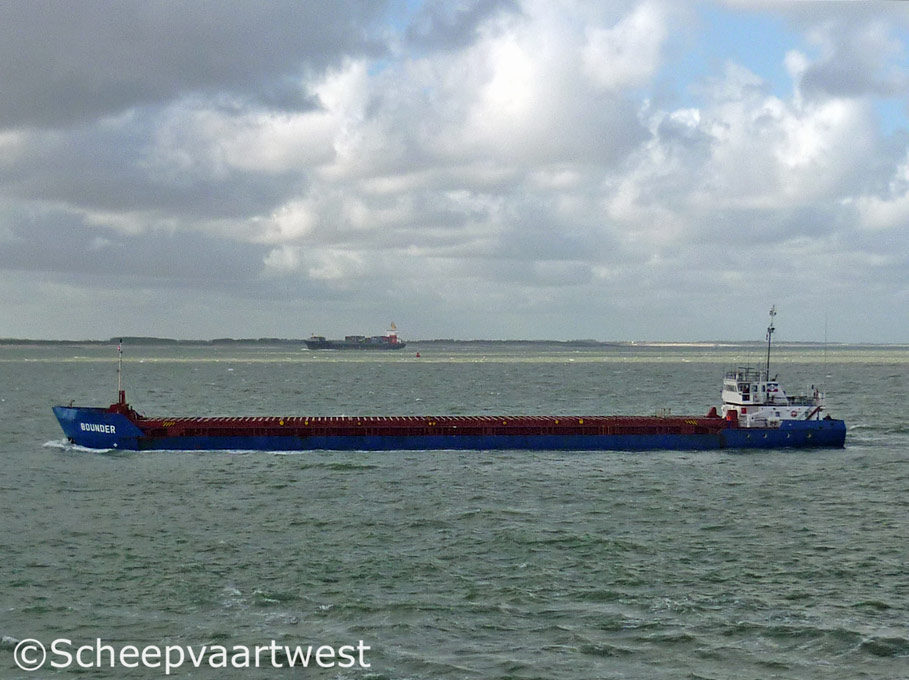

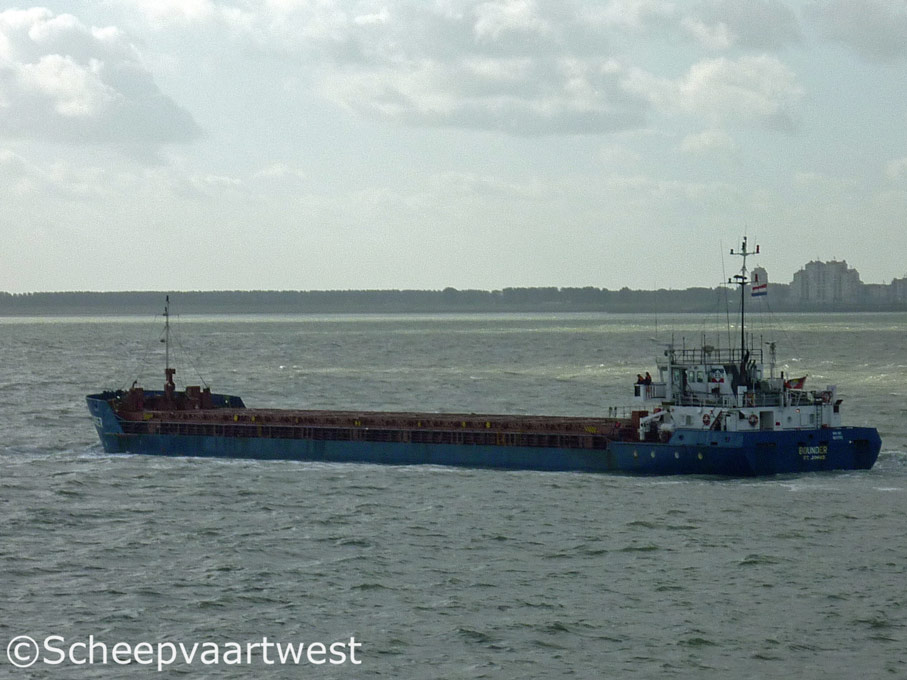

| Westerschelde 14 September 2011 |
 |
| Wsterschelde 14/09/11 |
|
Name |
BOUNDER |
|
Previous names |
1989 - 23.03.1992 Borsteler Berg |
|
Type |
General cargo ship - Mini bulk carriers |
|
IMO-number |
8611192 |
|
Call sign |
V2AU3 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
1.984 t |
|
DWT |
3.223 t |
|
NT |
1.056 t |
|
Number of 20ft containers |
150 |
|
Length |
89,32 m overall 86,28 m registered |
|
Breadth |
12,50 m registered |
|
Draught |
4,703 m |
|
Forecastle |
7,30 m |
|
Depth |
To main deck: 4,45 m To upper deck: 6,35 m |
|
Speed |
11,0 knots |
|
Built |
1989 |
|
Keel laid |
05.05.1986 |
|
Launch date |
24.12.1986 |
|
Date of completion |
01.06.1989 |
|
Builder |
B.V. Scheepswerf Damen Gorinchem |
|
Yard number |
8207 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Caterpillar 3516 B DITA - 4 stroke 16 cylinder 170 x 190 mm diesel engine - 1.566 kW at 1.600 rpm Year of manufacture: 1998 Manufacturer: Caterpillar Tractor Co. |
|
Propeller |
1x Solid propeller - aft at 218 rpm |
|
Electric installations |
1x Plant 380/220 V - 100 kVA 1x Plant 380/220 V - 100 kVA 1x Plant 380 V - 63 kVA |
|
Diesel generators |
2x Caterpillar type 3304 BDI-T diesel engines coupled with 2 generators each 100 kVA - 380/220 Volt, 50 Hz |
|
Emergency generator |
1x Diesel generatorset - 63 kVA, 380/220 Volt, 50 Hz |
|
Compressed air Receivers |
1x Receiver 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
|
Bow thruster |
1x VETH jet - 224 kW, forward |
|
Cargo capacity |
Grain: 3.964 m³ Bales: 3.907 m³ |
|
Hold |
1 63,33 x 10,10 x 6,10 m |
|
Hatch |
1 63,33 x 10,10 m |
|
Hatch cover |
MacGREGOR hydr. folding covers |
|
Water ballast |
1.488 m³ |
|
Anchor equipment |
3x Anchors weight each 1.440 kg Chain length: 412,50 m |
|
Manager |
Strahlmann Reederei |
|
Operator |
Reederei Erwin Strahlmann |
|
Owner |
Erwin Strahlmann |
|
Special annotation |
Wheelhouse hydraulic lowering |
