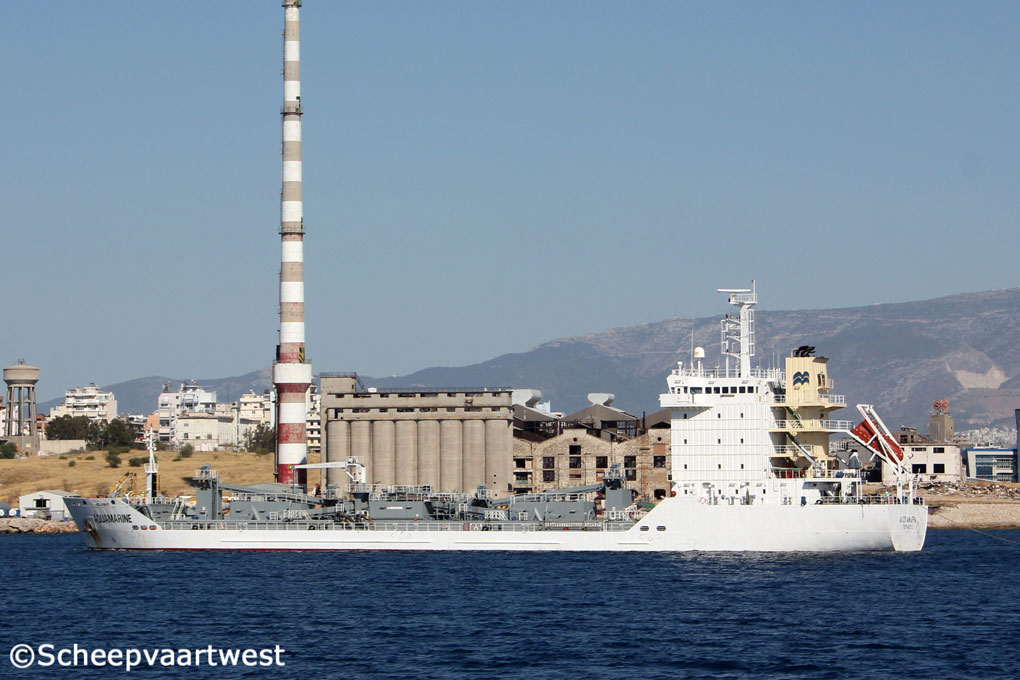

Aquamarine 01
Drapetsona, Greece 03 September 2012

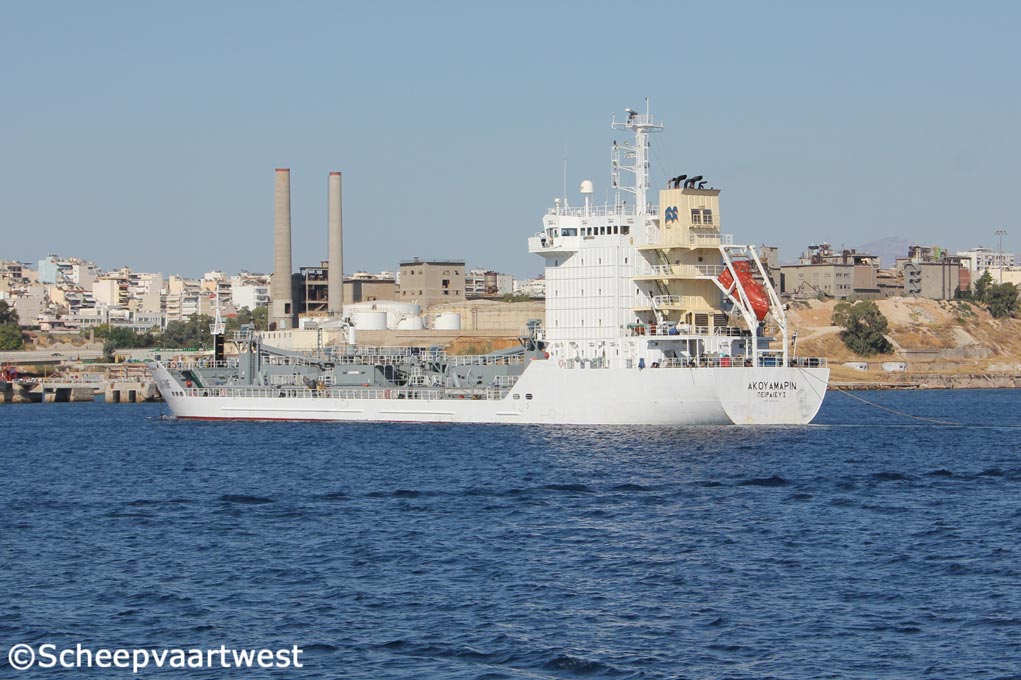

Aquamarine 02
Drapetsona 03/09/12



Name

AQUAMARINE

Hellenic name

ΑΚΟΥΑΜΑΡΙΝ

Type

General cargo - Cement carrier

IMO-number

9323144

Call sign

SXWC

Flag

Hellenic Republic

Port of registry

Piraeus

GT

4.940 t registered

Suez: 4.599,41 t

DWT

6.000 t

NT

1.622 t registered

Panama: 4.209 t

Suez: 3.259,85 t

Length

112,00 m overall

106,90 m between perpendiculars

Breadth

16,30 m moulded

Freeboard

2.112 mm

Depth

8,70 m moulded

Built

2008

Keel laid

25.05.2006

Launch date

05.02.2008

Date of completion

16.04.2008

Builder

Yardimci Gemi Insa

Tuzla
Turkey

Yard number

39

Hull material

Ordinary strength steel

High strength steel

Bulkheads

Water tight: 16

Oil tight: 1

Main engine

2x Wärtsilä 9L20 - 9 cylinder 200 x 280 mm diesel engines each 1.620 kW at 1.000 rpm

Manufacturer: Wärtsilä Finland OY

Shaft generator

2x Marelli Motori MJR 500 SC4 each 1.536 kW

Generators

1x Marelli Motori MJBM 500 SA8 main diesel generator set 648 kW

Cargo hold capacity

5.772,08 m³

Number of tanks

Ballast: 19

Lubricating oil: 7

Fuel oil: 6

Diesel oil: 4

Fresh water: 3

Waste water: 3

Hydraulic oil: 1

Chain: 1

Sludge: 1

Tank capacities

Diesel oil: 70,32 m³ / 63,28 t

Fresh water: 84,4 m³

Fuel oil: 366,55 m³ / 359,21 t

Hydraulic oil: 12,23 m³

Lube oil: 40,54 m³ / 36,48 t

Ballast capacity: 2.964,5 m³ / 3.038,61 t

Manager

Melissa Shipping
Okeanion Building
Akti Miaouli 57
Piraeus
Greece

Operator

Mardian Three Shipping Company
2, Fillelinon Str.
Piraeus
Greece

Registered owner

Mardian Three Shipping Company
