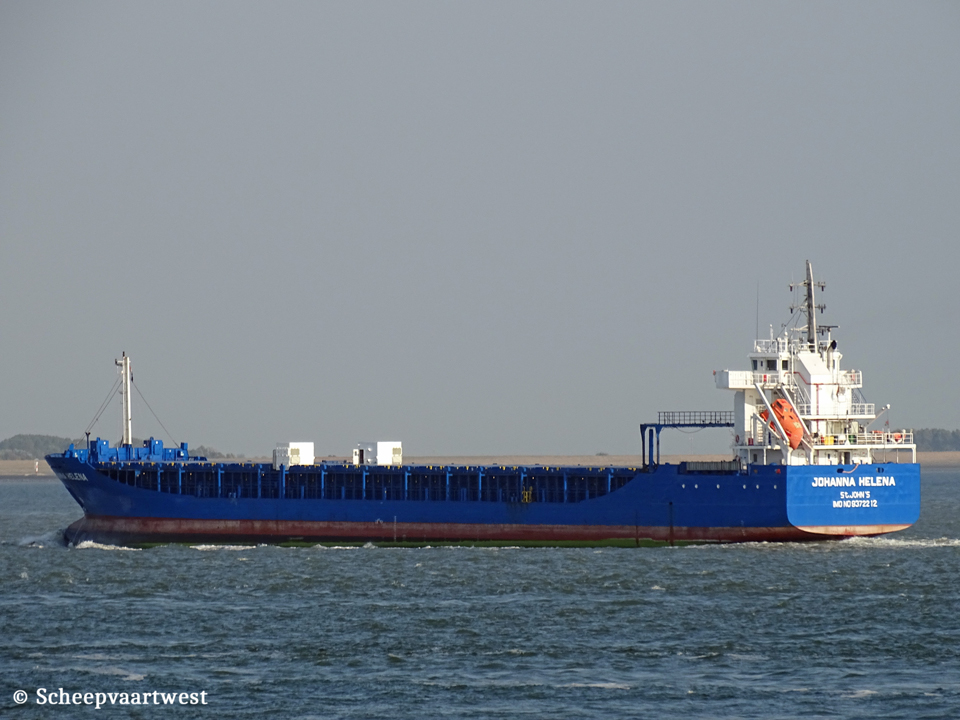

| Westerschelde 14 September 2016 |
|
Name |
JOHANNA HELENA |
|
Previous names |
2011 - 2016 Emssun 2016 - 2019 Johanna Helena 2019 - 2021 Storoe |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Singledecker |
|
IMO-number |
9372212 |
|
Call sign |
5BMF5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2008- 2020 Antigua & Barbuda, St. John’s - Call sign: V2DN8 |
|
GT |
4.842 t |
|
DWT |
Summer:6.605,3 t Winter: 6.403,3 t |
|
DWCC |
Summer: 6.300 t Winter: 6.100 t |
|
NT |
2.619 t |
|
Number of 20ft containers |
In hold: 174 On hatch: 159 Total: 333 |
|
Length |
115,00 m overall 109,70 m between perpendiculars |
|
Breadth |
16,01 m extreme |
|
Draught |
Summer: 5,70 m Winter: 5,58 m |
|
Air draft |
Ballast: 29,00 m |
|
Depth |
7,50 m to main deck |
|
Speed |
Max: 12,5 knots Service: 10,0 knots |
|
Built |
2011 |
|
Keel laid |
01/03/2007 |
|
Launch date |
25/04/2008 |
|
Date of completion |
15/02/2011 |
|
Builder |
Bharati Shipyard Ltd. Ratinagiri India |
|
Yard number |
329 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L26A - 4 stroke 9 cylinder 260 x 320 mm combustion engine 2.937 kW / 3.993 hp at 1.000 rpm Builder: Wärtsilä Italia S.p.a |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x Thermal oil heater, oil fired |
|
Shaft generator |
1x 470 kW |
|
Generators |
2x Sisu Diesel 84.493 CTAG-4V diesel generatorset each 175 kW |
|
Emergency & harbour gen. |
1x Valmet diesel generatorset 70 kVA |
|
Compressed air receivers |
2x Starting air compressors |
|
Bow thruster |
1x Fixed pitch propeller output 350 kW |
|
Number of holds |
2x Boxshaped hold narrowing fore and aft Hold 1: 27,30 x 13,50 x 9,00 m Hold 2: 53,20 x 13,50 x 9,00 m |
|
Cargo holds capacity |
Hold 1: 3.102 m³ Hold 2: 6.463 m³ Total: 9.565 m³ |
|
Hold ventilation |
Elec. driven 6 times |
|
Number of hatches |
2 Hatch 1: 27,30 x 13,50 m Hatch 2: 53,20 x 13,50 m |
|
Hatch cover type |
Steel pontoon hatches with 1 gantry crane |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch covers: 1,63 t/m² |
|
Tank capacities |
Ballast: 2.744,2 m³ MGO: 339,7 m³ Potable water: 62,0 m³ |
|
Anchor equipment |
Length: 440,00 m Diameter: 42 mm |
|
Crew size |
9 |
|
Manager |
Hermann Lohmann Bereederungen GmbH & Co. KG Boschstraße 15 49733 Haren (Ems) Germany |
|
ISM manager |
Hermann Lohmann Schiffahrtsverwaltung GmbH Germany |
|
Registered owner |
Hermann Lohmann Schiffahrts GmbH & Co. KG MS "JOHANNA HELENA" |
|
Latest data adjustment |
23 February 2024 |
