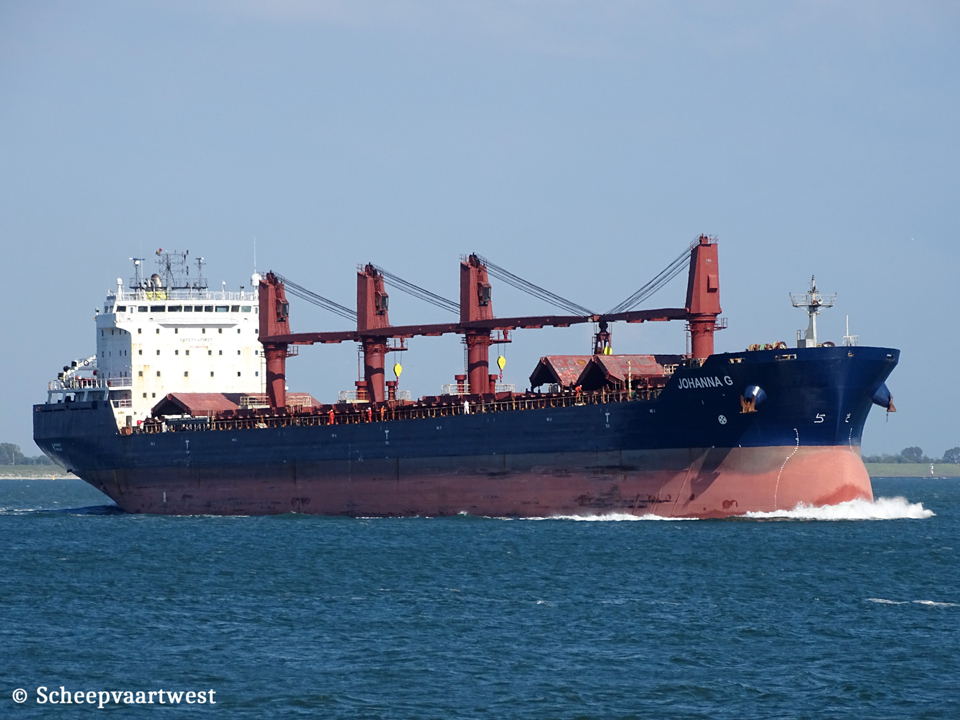

Johanna G IMO 9285940 01

Westerschelde 20 June 2019



Name

JOHANNA G

Previous names

2004 - 2018 Redhead

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9285940

Call sign

CQAA3

Flag

Portugal

Port of registry

Madeira

Previous flags

Hong Kong, China - Call sign: VRAK4

GRT

22.792 t

DWT

Summer: 37.250 t

NRT

12.130 t

Length

199,90 m overall

192,00 m between perpendiculars

Breadth

23,73 m

Draught

Summer: 11,28 m

Moulded L x B x D

192,00 x 23,70 x 15,30 m

Registered L x B x D

192,71 x 23,70 x 15,30 m

Keel to mast end

40,90 m

Freeboard

Summer: 4.054 mm

Depth

15,30 m

Speed

14,5 knots

Built

2004

Keel laid

06/04/2004

Launch date

28/06/2004

Delivery date

25/10/2004

Builder

Tianjin Xingang Shipbuilding Heavy Industry Co., Ltd

China

Yard number

SB340

Hull material

High strength steel

Ordinary strength steel

Watertight bulkheads

18

Main engine

1x MAN-B&W/Hudong 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine Mcr 7.860 kW / 10.686 hp at 129,0 rpm

Manufacturer: Hudong Heavy Machinery Co. Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 520 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,9 MPa

Evaporation: 2,20 t/h

Manufacturer: Aalborg Industries Limited

Generators

3x Taiyo FE547B main diesel generatorsets each 825 ekW

Bow thruster

1x 900 kW

Number of holds

6

Cargo hold capacity

Grain: 42.778,7 m³

Bale: 42.351,0 m³

Number of tanks

Ballast: 24

Fuel oil: 10

Lubricating oil: 8

Fresh water: 5

Diesel oil: 3

Waste water: 2

Chain: 2

Sludge: 2

Organic compound: 1

Tank capacities 100%

Diesel oil: 120,99 m³

Freshwater: 487,03 m³

Fuel oil: 1.776,54 m³

Lube oil: 162,02 m³

Tank ballast: 8.115,75 m³

Lifting equipment

1x Engine room overhead crane - SWL 3,0 t

Manufacturer: Jiangyin East China Marine Fitting Co. Ltd.

1x Provision crane - SWL 2,0 t

Cargo gear

4x Deck cranes - SWL 40,0 t each

Crew size

22

Commerical manager

Brochart KB

Trappvagen 5

SE-191 35 Sollentuna

Sweden

ISM manager

Franco Compania Naviera SA

225-227, Kifisias Avenue, Kifisia

145 61 Athens

Greece

Registered owner

Seabulk Shipping AB

Care of Brochart KB

Trappvagen 5

SE-191 35 Sollentuna

Sweden

Previous names & owners

2004 - 2018 Redhead - Pretty Rainbow Shipping S.A. - Hong Kong

Latest data adjustment

16 September 2021
