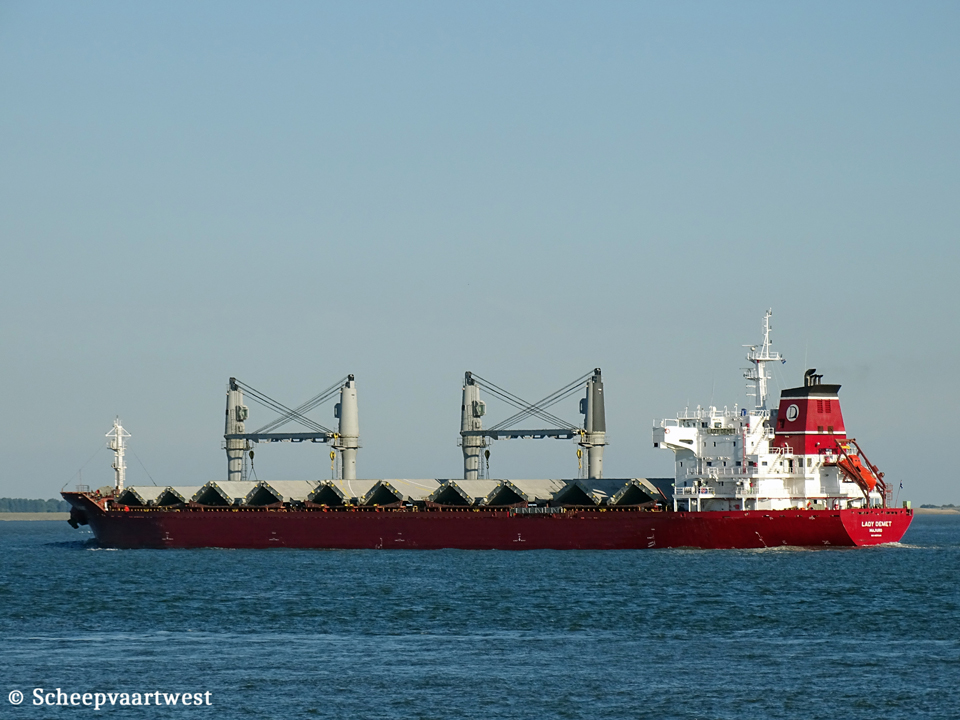

| Westerschelde 07 September 2016 |
|
Name |
LADY DEMET |
|
Type |
Geared grab fitted bulk carrier - Carriage of dangerous goods |
|
IMO-number |
9625592 |
|
Call sign |
V7KX9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2012 - 2016 Turkey - Call sign: TCSF6 |
|
GT |
19.999 t |
|
DWT |
31.017 t on 10,02 summer draft Winter: 30.116 t |
|
NT |
10.351 t |
|
Displacement |
38.529 t |
|
Light ship |
8.399 t |
|
Length |
178,70 m overall 170,00 m between perpendiculars |
|
Breadth |
28,05 m |
|
Draught |
Summer: 10,02 m Winter: 9,81 m |
|
Keel to mast end |
43,70 m |
|
Freeboard |
Summer: 4.032 mm Winter: 4.237 mm |
|
Depth |
14,00 m moulded |
|
Speed |
14,1 knots |
|
Built |
2012 |
|
Keel laid |
27/12/2010 |
|
Delivery date |
12/01/2012 |
|
Builder |
Tsuji Heavy Industries (Jiangsu) Co., Ltd. Dujinggang Dongce, Daxin Zhen Zhangjiagang Along Yangtsu-River Economy & Technology Development Zone, Zhangjiagang, 215636 China |
|
Yard number |
S1011 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Makita/MAN- B&W 6S42MC7 - 2 stroke 6 cylinder 420 x 1.764 mm combustion engine Mcr 6.232 kW at 130,8 rpm Manufacturer: STX Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch solid keyless propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Fired exhaust gas boiler - 9,0 MPa Manufacturer: Alfa Laval Aalborg Qingdao Ltd. |
|
Generators |
3x Yanmar main diesel generatorsets each 550 kW Manufacturer: HHI Electro Electric System |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain / Bale: Hold 1: 5.922 / 5.626 m³ Hold 2: 8.638 / 8.206 m³ Hold 3: 9.078 / 8.624 m³ Hold 4: 8.931 / 8.484 m³ Hold 5: 8.062 / 7.659 m³ Total: 40.633 / 38.601 m³ |
|
Number of hatches |
5 Hatch 1: 16,60 x 15,00 m Hatch 2: 20,80 x 21,00 m Hatch 3: 20,80 x 21,00 m Hatch 4: 20,80 x 21,00 m Hatch 5: 20,80 x 21,00 m |
|
Hatch cover type |
Hydraulic folding type |
|
Tank capacities |
Fresh water: 250,40 m³ Fuel oil: 1.324,30 m³ Diesel oil: 123,00 m³ Lub oil: 83,00 m³ Ballast: 10.410,10 m³ |
|
Max permitted loads |
Tanktop: 20,0 t/m² Hatch covers: 1,75 t/m² |
|
Lifting equipment |
1x Engine room overhead crane - SWL 3,0 t Manufacturer: Jiang Yin Safety Sea Marine Equipment Co., Ltd. 1x General use crane - Port - SWL 3,0 t Manufacturer: Zhengjiang Marine Auxiliary Works 1x General use crane - Starboard - SWL 3,0 t Manufacturer: Jiangsu Jiaoyan Marine Equipment Co., Ltd. |
|
Crew size |
4x Deck cranes - SWL 30,5 t each Grabs: 2x 12,0 m³ Manufacturer: Tsuji Heavy Industries Co., Ltd., Jiangsu, China Design Department |
|
ISM & commercial manager |
Devbulk Gemi Isletmeciligi AS 111 Pasalimani Caddesi, Kuzguncuk Mah, Uskudar 34674 Istanbul Turkey |
|
Registered owner |
Lady Demet Shipping Ltd. Care of Devbulk Gemi Isletmeciligi AS , 111 Pasalimani Caddesi, Kuzguncuk Mah, Uskudar 34674 Istanbul Turkey |
|
Renamed |
02/2023 Devbulk Demet Marshall Islands, Majuro - Call sign: V7KX9 Owner: Devbulk Demet Shipping Ltd.,Istanbul - Turkey |
|
Latest data adjustment |
04 January 2024 |
