| Westerschelde 28 December 2015 |
|
Name |

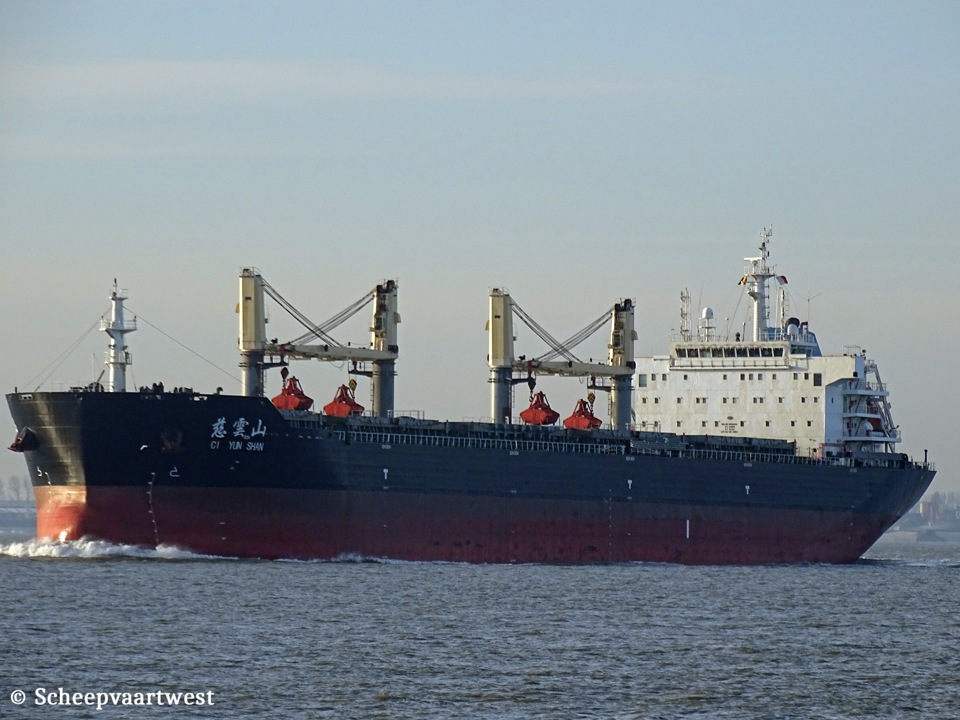

CI YUN SHAN |
|
Chinese name |
慈云山 |
|
Type |
Bulk carrier - Handymax |
|
IMO-number |
9592886 |
|
Call sign |
VRHK7 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
32.899 t |
|
DWT |
56.687 t |
|
NT |
19.142 t |
|
Length |
189,99 m overall 185,00 m between perpendiculars |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 11,30 m |
|
Keel to mast end |
46,00 m |
|
Forecastle |
13,09 m |
|
Deckhouse |
22,46 m |
|
Freeboard |
5.224 mm |
|
Depth |
18,00 m |
|
Speed |
14,2 knots |
|
Built |
2010 |
|
Date of completion |
10/11/2010 |
|
Builder |
COSCO Shipping Heavy Industry (Yangzhou) Co., Ltd. Jiangsu China |
|
Hull material |
Steel |
|
Bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S50MC-C7 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW at 127,0 rpm Build: 2010 Manufacturer: Hu Dong Heavy Machinery Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiluiary boiler - 0,7 MPa Heating surface: 305 m³ Manufacturer:Zhangjiagang Greens-shazhou Boiler Co.,Ltd. |
|
Generators |
3x Main diesel generatorsets each 600 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: Hold 1: 13.009,86 m³ Hold 2: 15.333,25 m³ Hold 3: 14.553,08 m³ Hold 4: 15.333,27 m³ Hold 5: 13.404,64 m³ Total: 71.634,1 m³ |
|
Number of hatches |
5 4x 21,32 x 18,26 m 1x 18,86 x 18,26 m |
|
Tank capacities |
Ballast: 16.333 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 3,0 t 1x Provision crane - SWL 4,0 t |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
ISM manager |
COSCO Shipping Bulk Co., Ltd. Room 904, 162, Gangqian Dadaonan, Nansha Xinqu, Guangzhou Guangdong, 511458 China |
|
Previous managers |
COSCO shipping seafarer Management Room A-1309, 188, Yesheng Lu, Pilot Free Trade Zone, Pudong Xinqu Shanghai, 200120 China |
|
Registered owner |
Yin Yan Shipping Company Limited Care of COSCO Shipping Seafarer Management Co Ltd, Room A-1309, 188, Yesheng Lu, Pilot Free Trade Zone, Pudong Xinqu Shanghai, 200120 China |
|
Latest data adjustment |
04 December 2023 |
