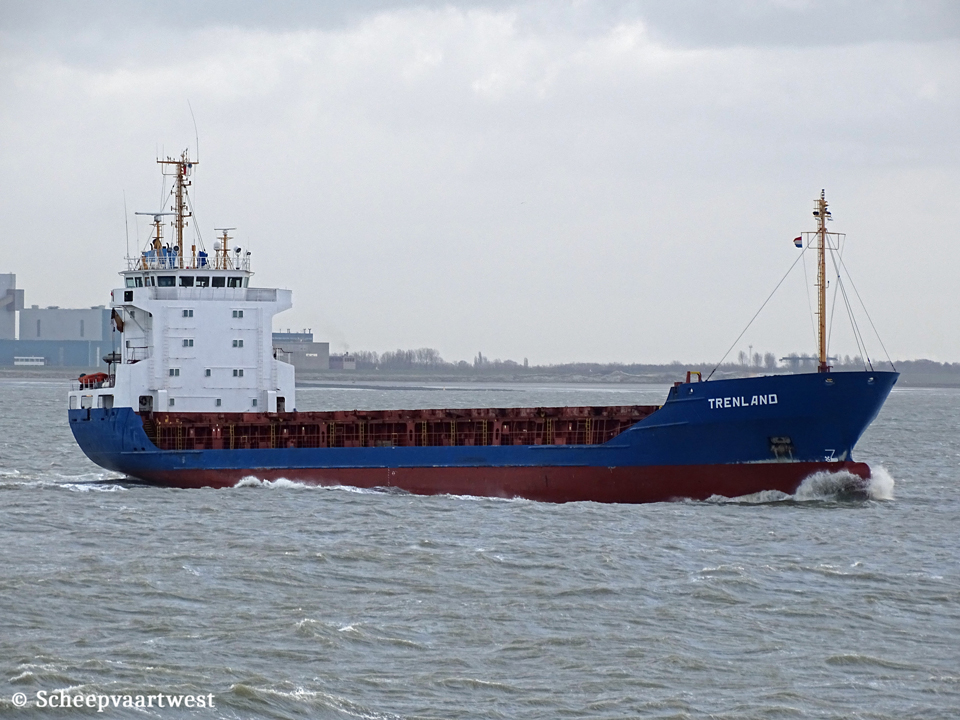

| Westerschelde 12 February 2020 |
 |
|
| Westerschelde 12/02/20 | |
|
Name |
TRENLAND |
|
Previous names |
1989 - 2011 Trenden |
|
Type |
General cargo vessel |
|
IMO-number |
8820107 |
|
Call sign |
9HA2729 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
1989 - 2011 Finland, Helsinki - Call sign: OIZF |
|
GT |
3.826 t |
|
DWT |
4.402 t |
|
DWCC |
Summer: 4.735 t Winter: 4.480 t |
|
NT |
2.013 t |
|
Number of 20ft containers |
In hold: 140 On deck: 186 Total: 326 |
|
Container capacity 14t |
224 |
|
Reefer capacity |
10 |
|
Length |
104,80 m overall 97,40 m between perpendiculars |
|
Breadth |
16,25 m extreme 16,00 m moulded |
|
Draught |
Summer: 6,24 m Winter: 6,05 m |
|
Keel to mast end |
32,00 m |
|
Forecastle |
Summer: 5,78 m |
|
Depth |
7,75 m |
|
Speed |
Max: 15,4 knots Service: 11,0 knots |
|
Built |
1989 |
|
Keel laid |
20/03/1989 |
|
Launch date |
24/04/1989 |
|
Delivery date |
02/06/1989 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Germany |
|
Yard number |
1040 |
|
Hull material |
Steel (standard) |
|
Hull type |
Single hull, partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä Vasa 8R32 D - 4 stroke 8 cylinder 320 x 350 mm combustion engine 2.960 kW / 4.024 hpat 740 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x Piller 1.125 kVA / 900 kW |
|
Generators |
2x Volvo Penta diesel engines each 238 kW connected with Piller generators each 275 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 500 litres - 11,0 bar |
|
Bow thruster |
1x Fixed pitch propeller Pleuger - 300 kW, forward |
|
Number of holds |
1x Steel floor, box shaped 65,70 x 12,82 x 8,25 m |
|
Cargo hold capacity |
Grain: 6.461 m³ Bale: 6.368 m³ |
|
Hatch opening |
65,70 x 12,82 m |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain Length: 495,00 m |
|
Crew size |
12 |
|
Manager |
Klip Marine Tallinn Estonia |
|
Owner |
Trenland Shipping Ltd. |
|
Renamed |
2021 Manuela S Cyprus, Limassol - Call sign: 5BTW5 Owner & manager: Kevin S GmbH & Co KG - Germany |
|
Latest data adjustment |
19 September 2023 |
