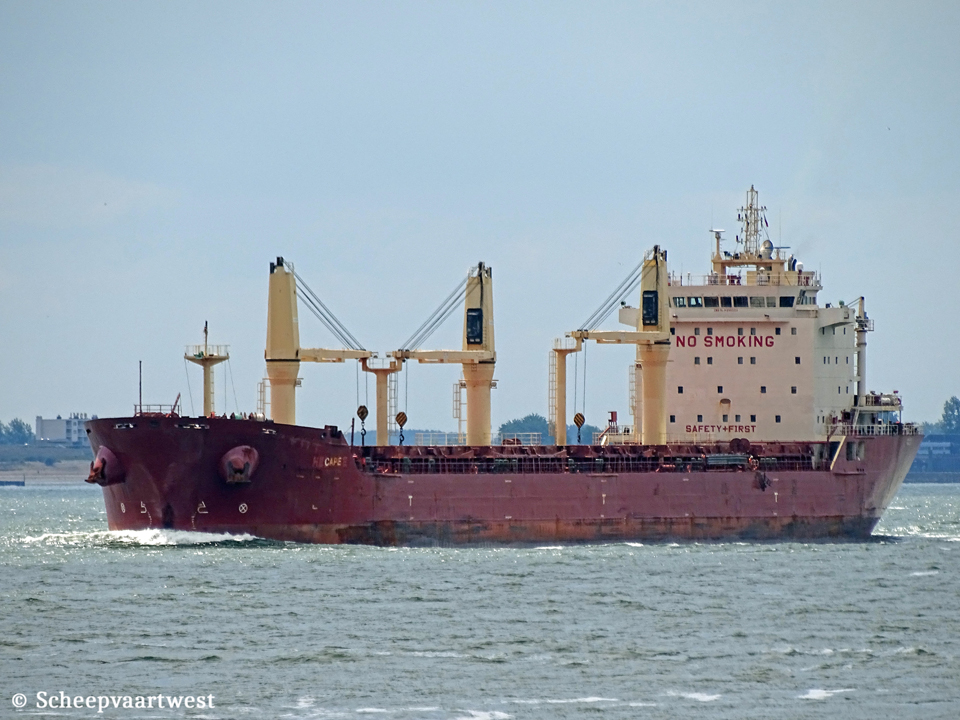

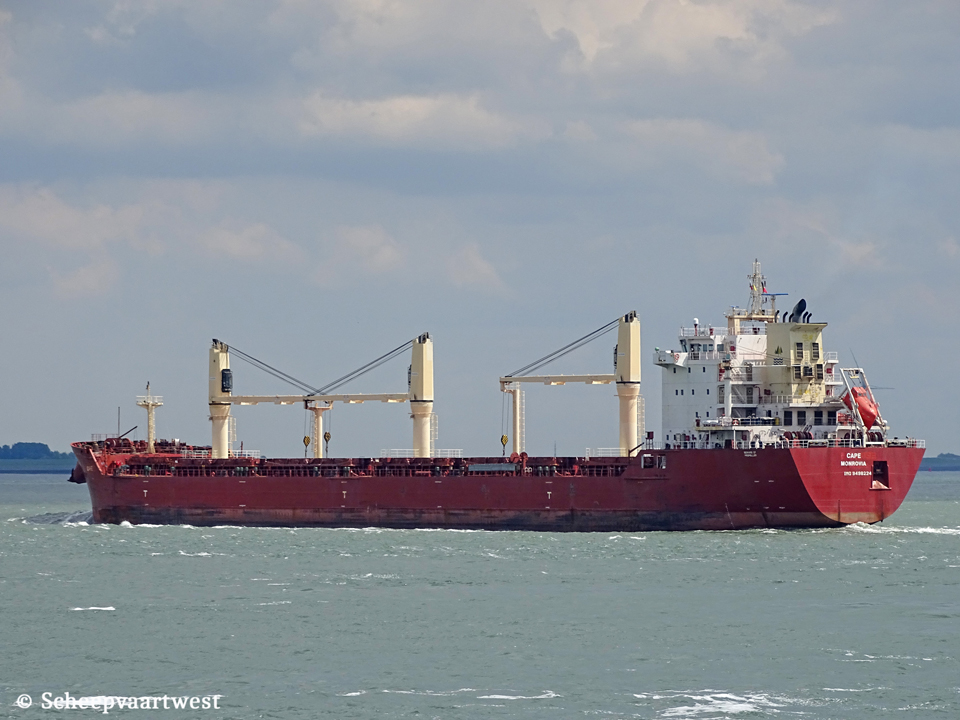

| Westerschelde 20 May 2017 |
 |
|
| Westerschelde 20/05/17 | |
|
Name |
CAPE |
|
Previous names |
03/2010 - 12/2015 Heloise |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9498224 |
|
Call sign |
V7A6080 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
03/2010 - 12/2015 Republic of Panama, Panama City - Call sign: 3FLA7 12/0215 - 2023 Liberia, Monrovia - Call sign: D5KB5 |
|
GT |
19.865 t Suez: 20.753 t |
|
DWT |
Summer: 30.688,2 t Winter: 29?788,3 t |
|
NT |
10.279 t Suez: 10.279 t Panama: 16.622 t |
|
Length |
186,00 m overall 178,80 m between perpendiculars |
|
Breadth |
23,70 m extreme |
|
Draught |
Summer: 10,41 m Winter: 10,20 m |
|
Keel to mast end |
41,10 m |
|
Freeboard |
Summer: 4.227 mm |
|
Depth |
14,60 m moulded |
|
Speed |
14,0 knots |
|
Built |
2010 |
|
Keel laid |
21/07/2009 |
|
Launch date |
10/11/2009 |
|
Date of completion |
25/03/2010 |
|
Builder |
Shanhaiguan Shipbuilding Industry Co., Ltd. (SHGSIC) Qinhuangdao China |
|
Yard number |
024 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN-B&W 6S46MC-C MARK-V11 - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine Mcr 7.200 bhp kW at 118,2 rpm Manufacturer: Yichang Marine Diesel Engine Co., Ltd. |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Generators |
3x Yanmar 6N21L-SV diesel generatorsets |
|
Number of holds |
6 Hold 1-2-3: 19,30 m Hold 4: 23,20 m Hold 5: 16,40 m Hold 6: 20,80 m |
|
Cargo hold capacity |
Grain / Bale Hold 1: 4.690,5 / 4.431,5 m³ Hold 2: 7.678,3 / 7027,3 m³ Hold 3: 7.400,2 / 6754,8 m³ Hold 4: 6.242,3 / 5791,3 m³ Hold 5: 7.400,2 / 6754,8 m³ Hold 6: 5.461,3 / 5.053,8 m³ Total: 38.872,8 / 35.813,5 m³ |
|
Hold ventilation |
Holds electrically ventilated |
|
Number of hatches |
6 Hatch 1: 10,40 x 13,20 m Hatch 2-3-5: 19,20 x 17,40 m Hatch 4: 16,00 x 17,40 Hatch 6: 13,60 x 17,40 m |
|
Hatch type |
MacGregor electro hydraulic folding type |
|
Number of pumps |
2x Ballast pumps each 560 m³/h |
|
Tank capacities |
Ballast: 9.693 m³ - 100% Fresh water: 270 m³ |
|
Cargo gear |
3x MacGregor Cargo deck cranes - SWL 30,0 t each |
|
Crew size |
25 |
|
Commercial manager |
Canfornav Limited 800 Rene-Levesque Blvd. West Suite # 2300 Montreal, QC H3B 1X9 Canada |
|
ISM manager |
Navarone S.A. Cheimaras 6 Maroussi 15125 Athens Greece |
|
Registered owner |
Highlander Shipping Inc. 11, Grigori Auxentiou Str., Centro Imperio, Office 102, 4003, Mesa Geitonia Limassol Cyprus |
|
Disponent owner |
Canfornav Limited 11, Grigori Auxentiou Str., Centro Imperio, Office 102, 4003, Mesa Geitonia Limassol Cyprus |
|
Latest data adjustment |
11 September 2023 |
