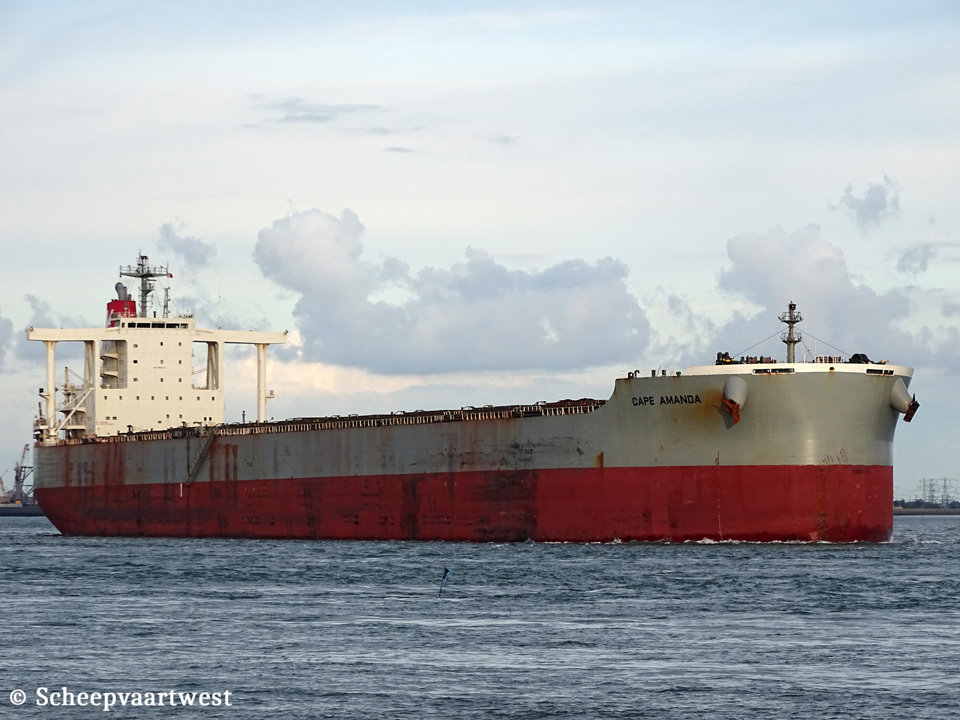

Cape Amanda IMO 9552410 01

Westerschelde 19 September 2017

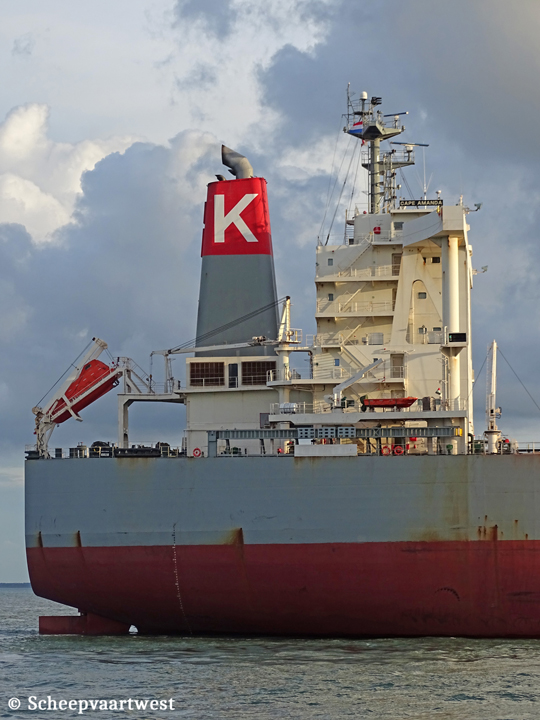

Cape Amanda IMO 9552410 02
WS 19/09/17













Name

CAPE AMANDA

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9552410

Call sign

3FZB

Flag

Republic of Panama

Port of registry

Panama City

GT

93.235 t registered

DWT

Summer: 182.741 t

NT

60.396 t registered

Length

292,00 m overall

Breadth

45,00 m moulded

Draught

Summer: 18,23 m

Moulded L x B x D

288,00 x 45,00 x 24,70 m

Registered L x B x D

288,00 x 45,00 x 24,70 m

Freeboard

Summer: 6.538 mm

Depth

24,70 m moulded

Speed

Max: 17,1 knots

Built

2011

Keel laid

08/11/2010

Launch date

11/01/2011

Date of completion

08/04/2011

Builder

Kawasaki Heavy Industries, Ltd. Ship & Offshore Structure Company Sakaide Shipyard

Japan

Yard number

1672

Hull material

Steel

Main engine

1x Kawasaki/ MAN-B&W 6S70MC-C - 2 stroke single acting 6 cylinder 700 x 2.800 mm combustion engine 17.780 kW at 87,0 rpm

Manufacturer: Kawasaki Heavy Industries, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 700 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 4,15 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Main diesel generatorsets each 620 ekW

Number of holds

9

Cargo hold capacity

Grain: 203.226 m³

Tank capacities

Fuel oil: 4.975 m³

Fresh water: 513 m³

Crew

20

Manager

K-Line RoRo Bulk Ship Management Co., Ltd.

Operator

K-Line Bulk

Registered owner

K-Line Bulk Shipping (UK) Limited & Cardinal Shipping Limited

Latest data adjustment

13 December 2020
