| Westerschelde 11 February 2016 |
|
Name |

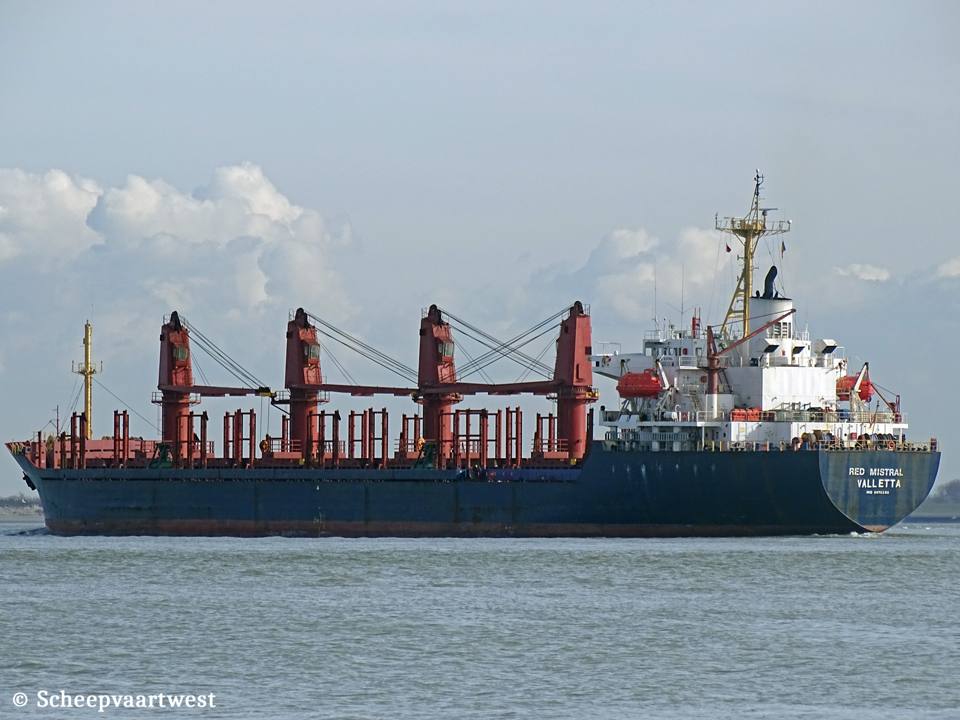

RED MISTRAL |
|
Previous names |
1994 - 2005 Wavelet 2005 - 2007 Wave Bulker 2007 - 2015 CN Big Red |
|
Type |
Bulk carrier / Lumber carrier |
|
IMO-number |
9076399 |
|
Call sign |
9HAF9 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GRT |
16.446 t |
|
DWT |
27.308 t |
|
NRT |
9.409 t |
|
Length |
165,50 m overall |
|
Breadth |
27,00 m moulded |
|
Draught |
Summer: 9,53 m |
|
Moulded L x B x D |
158,00 x 27,00 x 13,30 m |
|
Registered L x B x D |
158,60 x 27,00 x 13,30 m |
|
Freeboard |
Summer: 3.818 mm |
|
Depth |
13,30 m moulded |
|
Speed |
Max: 15,7 knots Service: 14,1 knots |
|
Built |
1994 |
|
Keel laid |
19/10/1993 |
|
Launch date |
12/05/1994 |
|
Date of completion |
11/08/1994 |
|
Builder |
Mitsubishi Heavy Industries Ltd. Shimonoseki Shipyard & Machinery Works Shimonoseki Japan |
|
Yard number |
990 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsui/MAN-B&W 5L50MC - 2 stroke single acting 5 cylinder 500 x 1.820 mm combustion engine 5.369 kW / 7.300 hp at 125,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,69 MPa Evaporation: 1,90 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Generatorsets total 1.200 kVA |
|
Number of hold |
5 |
|
Cargo hold capacity |
Bale: 34.182 m³ Grain: 34.811 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 1.451 m³ Fresh water: 227 m³ |
|
Cargo gear |
4x Deck cranes - SWL 30,5 t each |
|
Crew size |
25 |
|
Registered names & owner |
1994 - 1996 Wavelet - Orix 1996 - 2005 Wavelet - Chuang Zhi 2005 - 2007 Wave Bunker - Orix 2007 - 2015 CN Big Red - Franco Naviera |
|
Renamed |
2016 Winca Republic of Panama, Panama City - Call sign: HPXO Owner: Ever Fortune International Manager: Megawell International Shipmanagement Limited |
|
Latest data adjustment |
27 August 2023 |
