| Westerschelde 09 March 2020 |
|
Name |

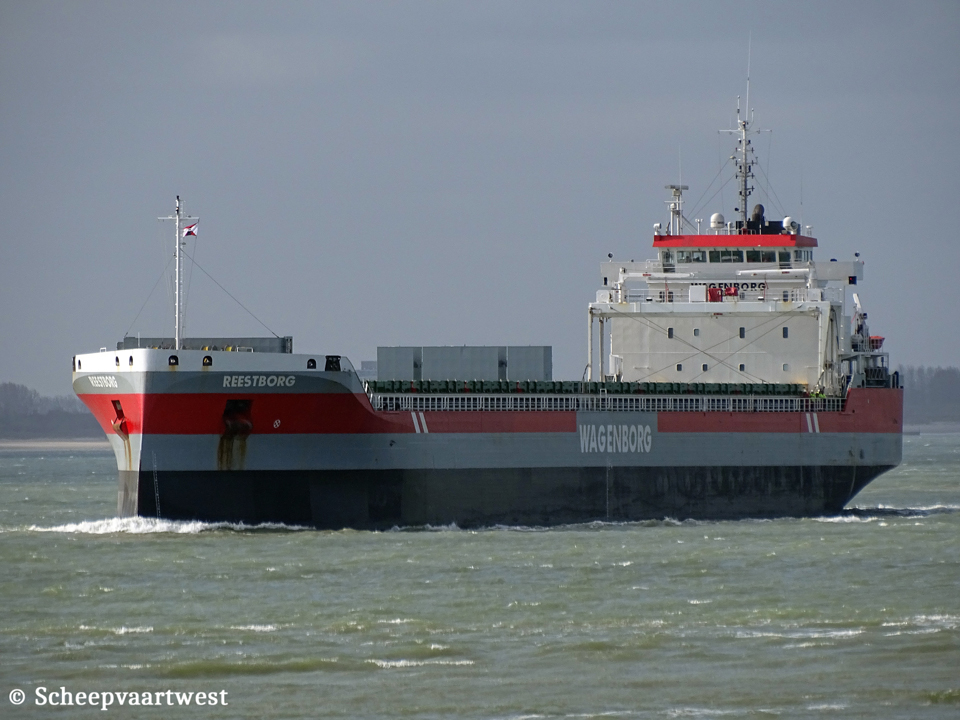

REESTBORG |
|
Type |
Multi-purpose dry cargo - Container ship - Heavy cargo Single-decker |
|
IMO-number |
9592563 |
|
Call sign |
PCSH |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
14.141 t |
|
DWT |
23.249 t |
|
DWCC |
Summer: 22.000 t |
|
NT |
6.853 t |
|
Number of 20ft containers |
562 |
|
Length |
169,75 m overall 165,97 m between perpendiculars |
|
Breadth |
20,40 m moulded |
|
Draught |
Summer: 9,72 m |
|
Air draft |
32,54 m ballast |
|
Freeboard |
4.056 mm |
|
Depth |
13,75 m moulded |
|
Speed |
13,5 knots |
|
Built |
2013 |
|
Launch date |
25/01/2013 |
|
Date of completion |
13/03/2013 |
|
Builder |
Scheepswerf Ferus Smit Leer Germany |
|
Yard number |
403 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Movable bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L32C - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 4.500 kW / 6.115 bhp at 750 rpm Build: 01/07/2012 Builder: Wärtsilä Finland Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Controllable pitch propeller aft at 110 rpm 4 blade with nozzle |
|
Shaft generator |
1x 1.238 kVA - 990 kW |
|
Generators |
2x Main diesel generatorsets each 563 kVA - 450 kW - 611 hp |
|
Emergency generator |
1x Diesel generatorset 183 kVA - 146 kW - 198 hp |
|
Bow thruster |
1x 860 kW |
|
Number of holds |
2x Box shaped- Both holds are open hatch double skinned Hold 1: 60,59 x 17,00 x 13,55 m Hold 2: 60,59 x 17,00 x 13,55 m |
|
Cargo hold capacity |
Grain/bale: Hold 1: 457.000 ft³ Hold 2: 488.000 ft³ Total: 945.000 ft³ / 26.748,89 m³ |
|
Hold ventilation |
12x Electrical ventilation air changes per hour basis empty holds Both holds are fitted with de humidifier system |
|
Number of hatches |
2 Hatch 1: 60,59 x 17,00 m Hatch 2: 60,59 x 17,00 m |
|
Hatch cover tpye |
Coops & Nieborg pontoon hatch covers |
|
Tank capacities |
Water ballast: 10.093 m³ Fresh water: 101 m³ HFO: 1.066 m³ MGO: 120 m³ |
|
ISM & commercial manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Reestborg Beheer BV (C.V. m.s. Reestborg) Care of Wagenborg Shipping BV Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Latest data adjustment |
23 June 2022 |
