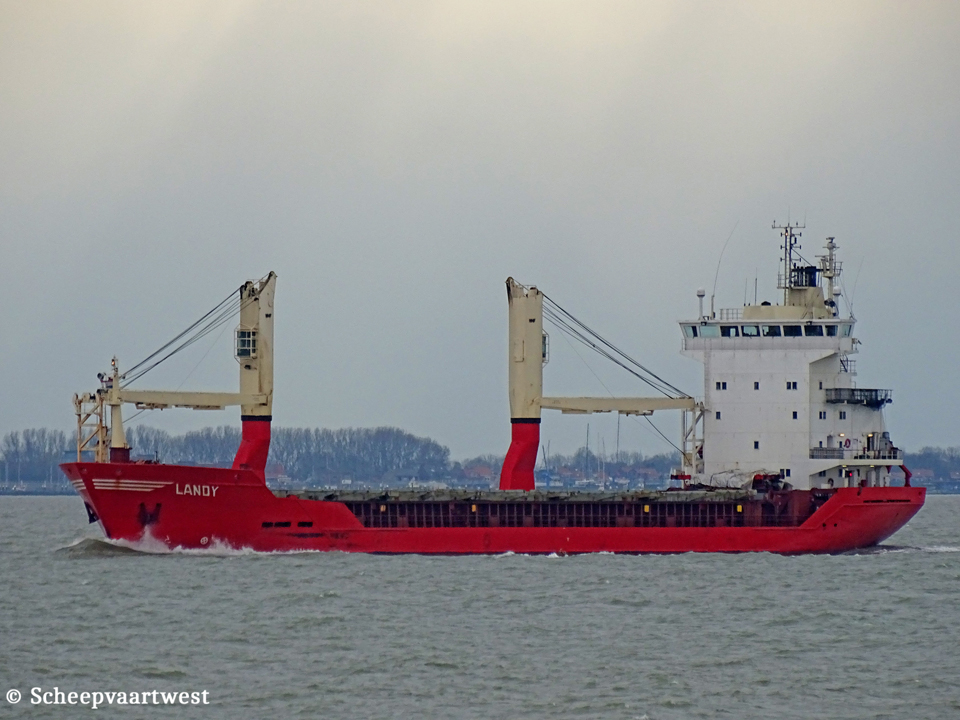

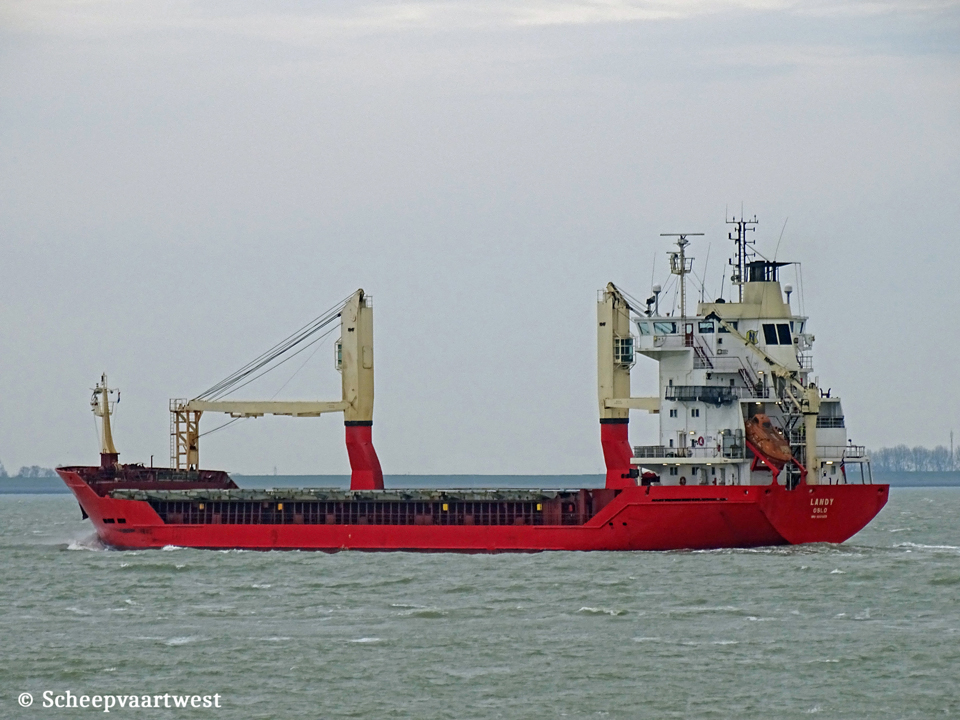

| Westerschelde 09 March 2016 |
 |
|
| Westerschelde 09/03/16 | |
|
Name |
LANDY |
|
Previous names |
1992 - 1996 Gastrikland 1996 - 1998 Sea-Voyager 1998 - 2006 Gastrikland |
|
Type |
General cargo vessel - Strengthened for heavy cargoes - Equipped for carriage of containers |
|
IMO-number |
9031428 |
|
Call sign |
LAFA7 |
|
Flag |
Norway |
|
Port of registry |
Oslo |
|
Previous flags |
1992 - 2006 Germany, Rostock - Call sign: DQGA |
|
GT |
4.090 t |
|
DWT |
4.450 t |
|
NT |
2.131 |
|
Number of 20ft containers |
On deck: 212 In hold: 136 Total: 357 |
|
Length |
111,09 m overall 99,90 m between perpendiculars |
|
Breadth |
16,00 m extreme |
|
Draught |
6,52 m |
|
Depth |
8,40 m |
|
Speed |
Service: 15,3 knots |
|
Built |
1992 |
|
Keel laid |
26/08/1991 |
|
Launch date |
16/04/1992 |
|
Date of completion |
16/06/1992 |
|
Builder |
Schiffswerft Hugo Peters Wewelsfleth Peters & Co. GmbH Germany |
|
Yard number |
641 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MaK9M453C - 4 Stroke single acting 9 cylinder 320 x 420 mm combustion engine Mcr 3.300 kW / 4.487 hp at 600 rpm Builder: Krupp MaK Maschinenbau GmbH, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 171,0 rpm |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Shaft generator |
1x 1.040 kW / 220/380 Volt 50 Hz |
|
Generators |
1x Caterpillar 3406B - 4 stroke 6 cylinder 137 x 165 mm diesel engines each Mcr 300 kW connected width generators each 240 kW - 220/380 Volt 50 Hz |
|
Emergency generator |
1x Caterpillar 3406 DITA diesel generatorset |
|
Bow thruster |
1x Fixed pitch thruster 353 kW / 480 bhp, forward |
|
Number of holds |
1 |
|
Cargo hold capacity |
Grain: 6.687 m³ Bale: 6.604 m³ |
|
Number of hatches |
1 |
|
Tank capacities |
Ballast: 2.499 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Cargo gear |
2x Deck cranes - SWL 25,0 t |
|
Crew size |
12 |
|
Manager |
K.E. Nordgrens Rederi AB Andra Langgatan 21 SE-891 60 Ornskoldsvik Sweden |
|
Renamed |
2020 MC Zion Philippines, Cebu City - Call sign: DUH5377 Owner & Manager: Moreta Shipping Lines Inc. |
|
Latest data adjustment |
13 August 2023 |
