Name |

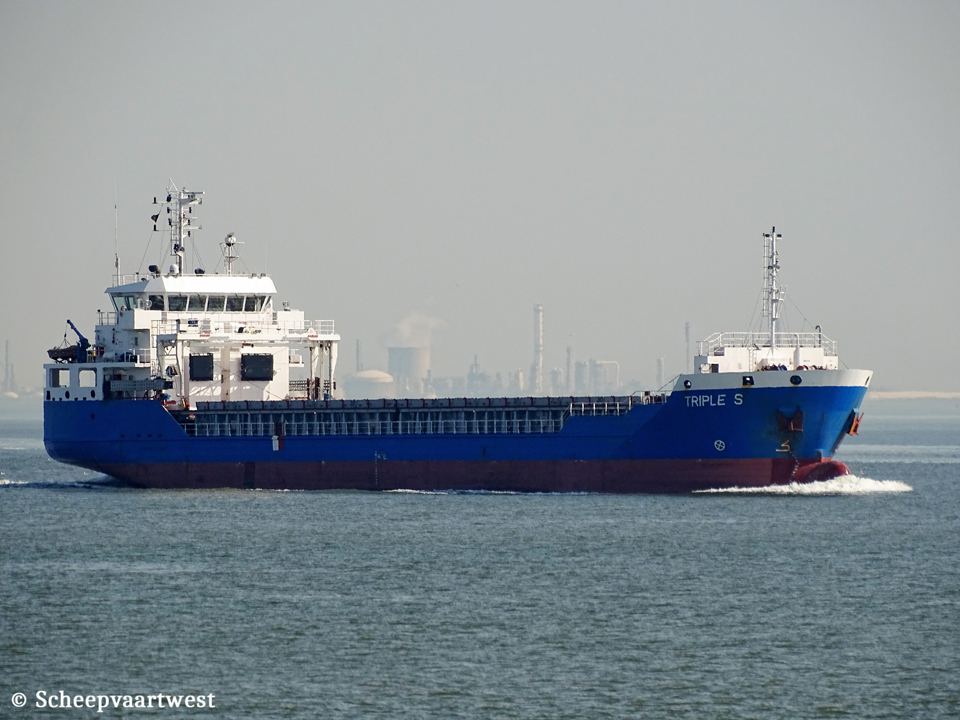

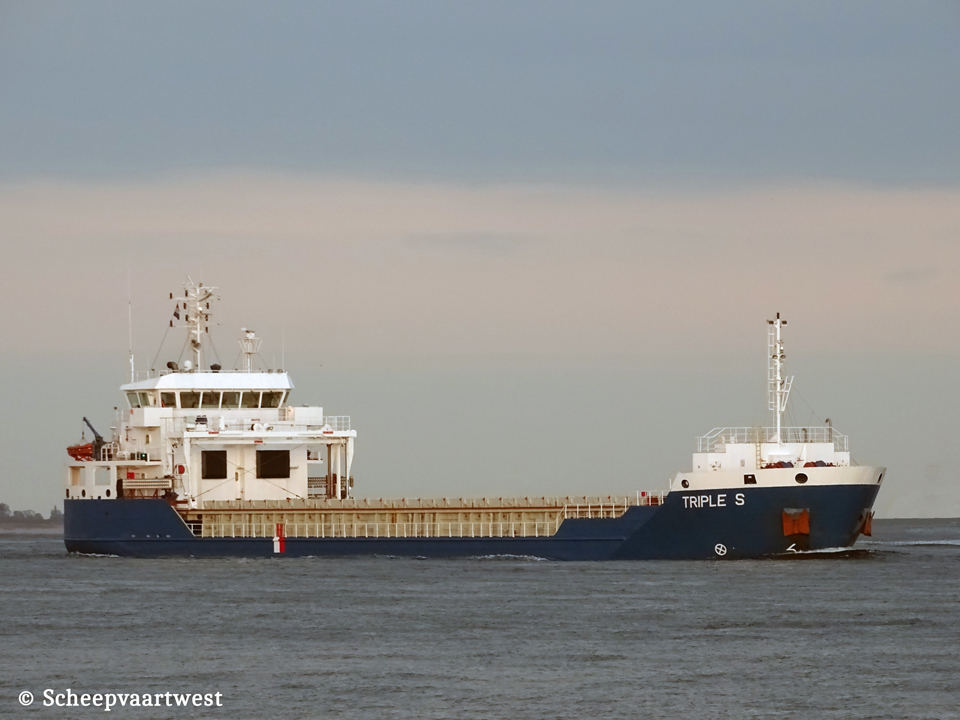

TRIPLE S |
|
Type |
Multi-purpose dry cargo and container carrier - Single-decker |
|
IMO-number |
9662382 |
|
Call sign |
V2QN7 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
3.845 t |
|
DWT |
5.245,44 t |
|
DWCC |
Summer: 4.950 t Winter: 4.785 t |
|
NT |
1.590 t |
|
Displacement |
7.029,62 t |
|
Number of 20ft containers |
In hold: 120 on deck: 70 Total: 190 |
|
Length |
89,97 m overall 84,95 m between perpendiculars |
|
Breadth |
15,40 m moulded |
|
Draught |
Summer: 6,13 m Winter: 6,00 m |
|
Air draft |
22,30 m in ballast |
|
Freeboard |
1.480 mm |
|
Depth |
7,61 m moulded |
|
Speed |
11,8 knots |
|
Built |
2013 |
|
Keel laid |
17/11/2008 |
|
Launch date |
21/08/2012 |
|
Delivery date |
06/02/2013 |
|
Builder |
Israel Shipyards Ltd. Haifga Israel |
|
Yard number |
2028 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkheads (can be put as part tweendeck at after end of hold) |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W Alpha 6L27/38 - 6cylinder 270 x 380 mm combustion engine Mcr 2.040 kW / 2.773 hp at 800 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
2x Main diesel generatorsets each 218 kW |
|
Bow thruster |
Yes |
|
Number of holds |
1x Box-shaped 54,60 x 12,60 x 8,40 m height, 53,60 m clear length with bulkheads aft |
|
Cargo hold capacity |
Bale/Grain: 198.216 ft³ |
|
Number of hatches |
1 54,60 x 12,60 m |
|
Max permitted loads |
Tanktop: 15,0 t/m³ Deck: 1,75 t/m² |
|
Tank capacities |
Lub oil: 12,20 m³ Hydraulic oil: 0,80 m³ Fresh water: 419,40 m³ Oil capacity: 277,80 m³ Ballast: 2.075,90 m³ |
|
Crew size |
10 |
|
Manager |
Muller Otto A. schiffahrt Hamburg Germany |
|
Registered owner |
Triple S Ltd. |
|
Latest data adjustment |
01 May 2023 |
