| Westerschelde 11 May 2017 |
|
Name |

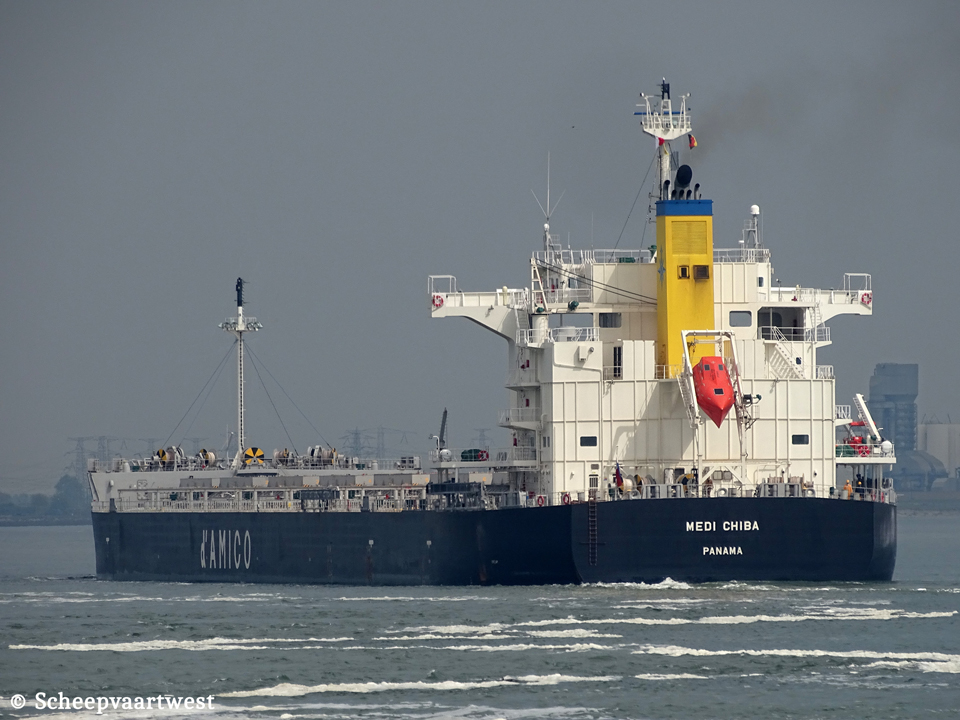

MEDI CHIBA |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading - Panamax |
|
IMO-number |
9781970 |
|
Call sign |
3FUD5 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GRT |
42.891 t |
|
DWT |
82.003 t |
|
NRT |
27.788 t |
|
Length |
228,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 14,49 m |
|
Moulded L x B x D |
224,50 x 32,26 x 20,01 m |
|
Registered L x B x D |
224,69 x 32,26 x 20,01 m |
|
Keel to mast end |
54,10 m |
|
Freeboard |
Summer: 5.587 mm |
|
Depth |
20,01 m moulded |
|
Speed |
Service: 14,5 knots Max: 16,0 knots |
|
Built |
2016 |
|
Keel laid |
30/09/2015 |
|
Launch date |
14/09/2016 |
|
Date of completion |
01/11/2016 |
|
Builder |
Oshima Shipbuilding Co., Ltd. Japan |
|
Yard number |
10835 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Kawasaki 6S60ME-C8 - 2 stroke single acting 6 cylinder 600 x 2.400 mm combustion engine Mcr 9.660 kW / 13.134 hp at 89,0 rpm Manufacturer: Kawasaki Heavy Industries Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 540 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Composite boiler - 0,69 MPa Evaporation: 2,60 t/h Manufacturer: Osaka Boiler Mfg. Co. Ltd. |
|
Generators |
3x Main diesel generatorsets each 550 kW |
|
Number of holds |
7 |
|
Cargo hold capacity |
Bale: 95.469 m³ Grain: 98.376 m³ |
|
Number of hatches |
7 |
|
Tank capacities |
Fuel oil: 2.535 m³ Fresh water: 416 m³ |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Phoenix Company Ltd. 13-12, Shinbashi 1-chome, Minato-ku Tokyo Japan |
|
Registered owner |
Baratta Shipping Ltd. Care of Phoenix Co. Ltd. 13-12, Shinbashi 1-chome, Minato-ku Tokyo Japan |
|
Latest data adjustment |
02 January 2023 |
