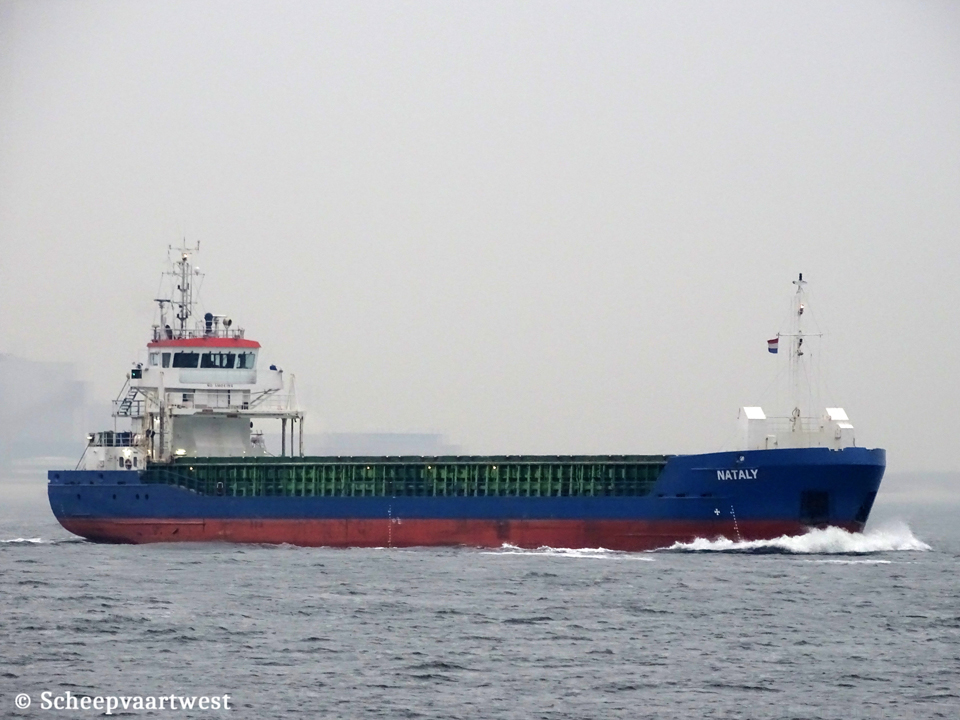

| Westerschelde 21 April 2017 |
|
Name |
NATALY |
|
Previous names |
07/2007 - 12/2016 Blue Dragon |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Damen Combi Freighter 3850 - Singledecker |
|
IMO-number |
9370288 |
|
Call sign |
5BRE5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2017 - 2021 Antigua & Barbuda, St. John’s - call sign: V2CE7 |
|
GT |
2.545 t |
|
DWT |
Summer: 3.864 t Winter: 3.737 t |
|
DWCC |
Summer: 3.550 t Winter: 3.600 t |
|
NT |
1.460 t |
|
Number of 20ft containers |
In hold: 113 On hatch: 68 Total: 181 |
|
Length |
88,60 m overall 84,99 m between perpendiculars |
|
Breadth |
12,52 m |
|
Draught |
Summer: 5,43 m |
|
Keel to mast end |
24,80 m |
|
Depth |
7,00 m to main deck |
|
Speed |
Service: 11,0 knots Max: 12,3 knots |
|
Built |
2007 |
|
Keel laid |
14/06/2006 |
|
Launch date |
30/08/2006 |
|
Date of completion |
05/07/2007 |
|
Builder casco |
ATVT Zavod Leninska Kuznya Kiev Ukraine |
|
Builder completion |
Damen Shipyard B.V. Bertgum The Netherlands |
|
Yard number |
9398 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Moveable grain bulkhead with six stowage positions |
|
Main engine |
1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm combustion engine 1.520 kW / 2.067 hp at 1.000 rpm Builder Caterpillar Motoren, Kiel - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Shaft generator |
1x 324 kVA |
|
Generators |
2x Scania D9 main diesel generatorsets each 175 kVA |
|
Emergency & harbour gen. |
1x Sisu/Valmet diesel generatorset 77 kVA |
|
Bow thruster |
1x Fixed pitch thruster 236 kW |
|
Number of holds |
1x Boxshaped hold narrowing fore and aft 61,66 x 10,12 x 8,43 m |
|
Cargo hold capacity |
Grain: 5.250 m³ / 185.400 ft³ |
|
Hold ventilation |
6x Electric driven |
|
Number of hatches |
1 62,70 x 10,10 m |
|
Hatch type |
Steel pontoon hatches with 1 gantry crane |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hatch: 1,60 t/m² |
|
Tank capacities |
Ballast approx: 1.340,00 m³ MGO approx: 210,00 m³ Potable water: 55,00 m³ Lubrication oil: 8,60 m³ Sewage: 12,00 m³ Dirty oil: 4,00 m³ Sludge: 4,00 m³ |
|
Accommodation |
For captain and crew of a total 08 persons with heating, ventilation and air-conditioning |
|
Manager |
Hermann Lohmann Bereederungen GmbH & Co. KG Seelandstraße 15 23569 Lübeck Germany |
|
Owner |
Grimpe Marine Consulting Bruchhausen-Vilsen Germany |
|
Previous names & owners |
07/2007 - 12/2016 Blue Dragon - Blue Dragon GmbH |
|
Renamed |
2021 Conformity Isle of Man / United Kingdom, Peel - Call sign: MJFJ3 Owner & manager: Faversham Ships Ltd. - United Kingdom |
|
Latest data adjustment |
02 December 2022 |
