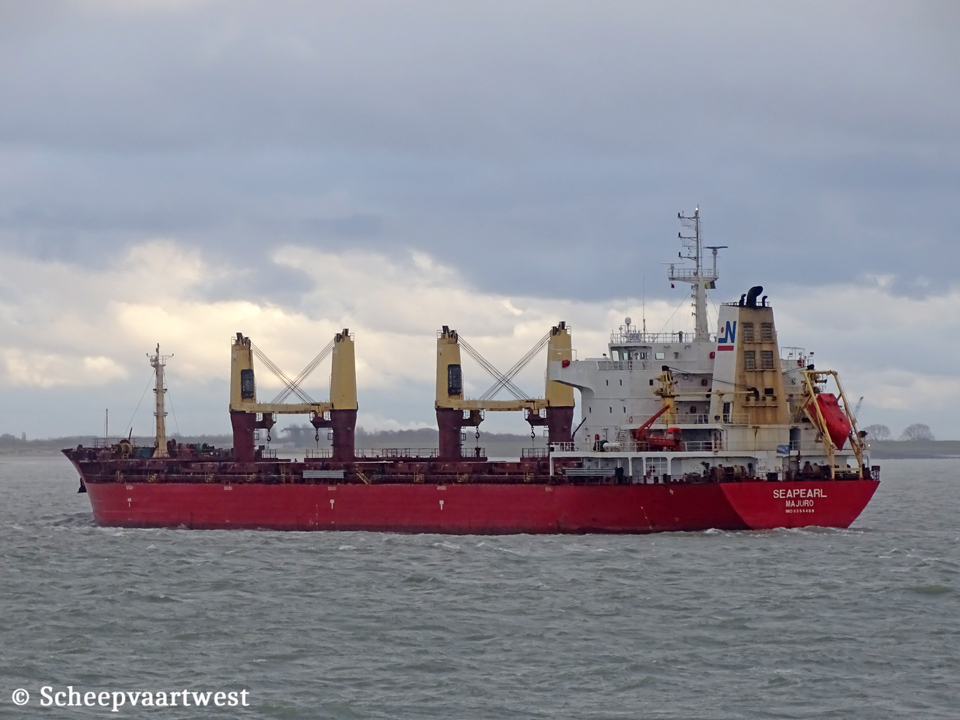

| Westerschelde 20 December 2019 |
|
Name |
SEAPEARL |
|
Previous names |
2013 - 2017 Siolver |
|
Type |
Bulk carrier - Handysize |
|
IMO-number |
9594468 |
|
Call sign |
V7FT5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2013 - 2017 Cyprus, Limassol - Call sign: 5BNC3 |
|
GT |
19.943 t |
|
DWT |
32.955,7 t |
|
NT |
11.325 t |
|
Length |
177,39 m overall 167,98 m between perpendiculars |
|
Breadth |
28,24 m |
|
Draught |
Summer: 10,20 m |
|
Keel to mast end |
44,83 m |
|
Depth |
14,60 m |
|
Speed |
14,2 knots |
|
Built |
2013 |
|
Keel laid |
28/09/2011 |
|
Launch date |
26/11/2011 |
|
Date of completion |
21/01/2013 |
|
Builder |
Yangfan Group Co., Ltd. Zhoushan China |
|
Yard number |
H2172 |
|
Hull material |
Shipbuilding steel (standard) - Higher tensile steel |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/STX 6S42MC7-01 2 stroke 6 cylinder 420 x 1.764 mm combustion engine 6.480 kW at 136,0 rpm Manufacturer: STX (Dalian) Shipbuilding Co. - China |
|
Propellers |
1x Fixed pitch propeller - aft at 136,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated Heating surface: 15,6 m² Heating surface: 184,0 m² Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. boiler |
|
Generators |
3x Yanmar 6EY18ALW main diesel generatorsets each 625 kVA |
|
Emergency generator |
1x Sisu 634 DSBG diesel generatorset 150 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS navigation 200 Ah 1x Battery for start emergency engine 200 Ah 1x Battery for UPS radio 200 Ah |
|
Compressed air receivers |
2x Receivers each 4.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 3.000 litres - 7,0 bar 1x Receiver 250 litres - 7,0 bar |
|
Number of holds |
5 Hold 1: 23,20 x 7,20 m forward / 20,20 m aft Hold 2: 25,60 x 20,20 m Hold 3: 25,60 x 20,20 m Hold 4: 25,60 x 20,20 m Hold 5: 24,00 x 20,20m forward / 6,90 m aft |
|
Cargo hold capacity |
Grain / Bulk: Hold 1: 6.790,3 / 6.192,8 m³ Hold 2: 9.073,3 / 8,274,8 m³ Hold 3: 9.076,1 / 8,277,4 m³ Hold 4: 9.076,3 / 8,277,6 m³ Hold 5: 8.195,8 / 7,474,6 m³ Total: 42.211,8 / 38,497,2 m³ |
|
Number of hatches |
5 Hatch 1: 14,40 x 15,20 m Hatch 2: 19,20 x 16,80 m Hatch 3: 19,20 x 16,80 m Hatch 4: 19,20 x 16,80 m Hatch 5: 19,20 x 16,80 m |
|
Hatch type |
MacGregor high stowing & folding, operated by external hydraulic cylinders |
|
Tank capacities |
Ballast: 18.267,64 m³ |
|
Anchor equipment |
3x Anchors weight each 6.900 kg Chain length: 603,00 m Diameter: 64 |
|
Cargo gear |
4x Deck cranes - SWL 30,0 t each |
|
Crew size |
25 |
|
ISM & commercial manager |
Navarone SA 6, Cheimarras Street, Marousi 151 25 Athens Greece |
|
Registered owner |
Sea Pearl Maritime SA Care of Navarone SA 6, Cheimarras Street, Marousi 151 25 Athens Greece |
|
Previous names & owners |
2013 - 2017 Silver - Almi Navigation Ltd. |
|
Latest data adjustment |
23 October 2020 |
