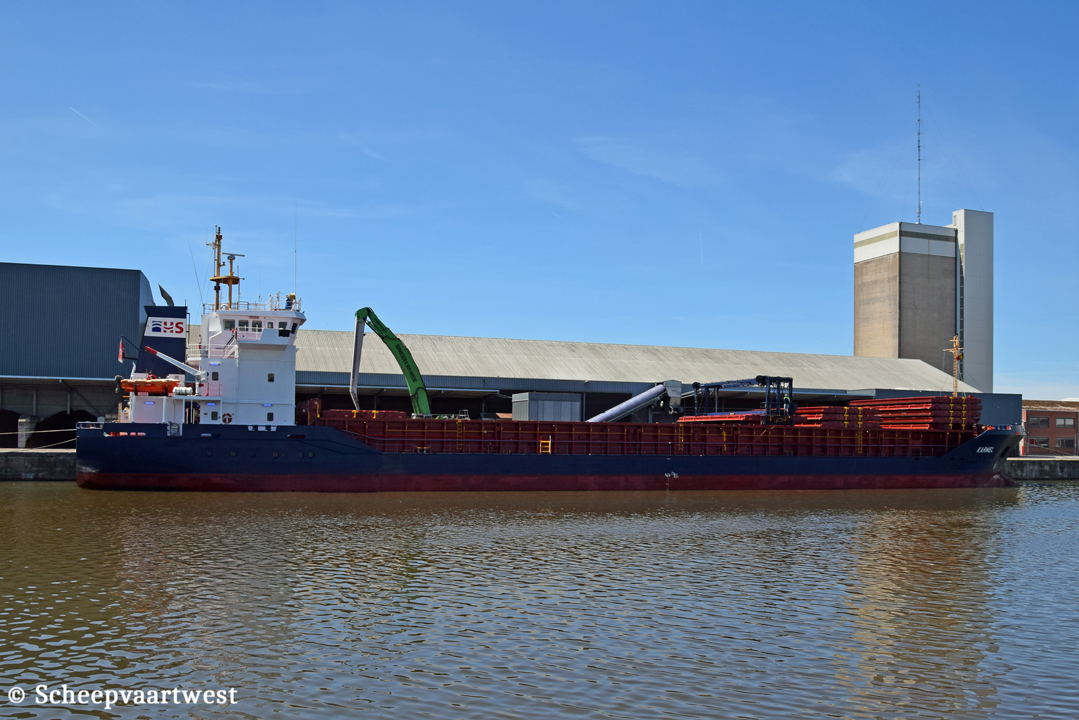

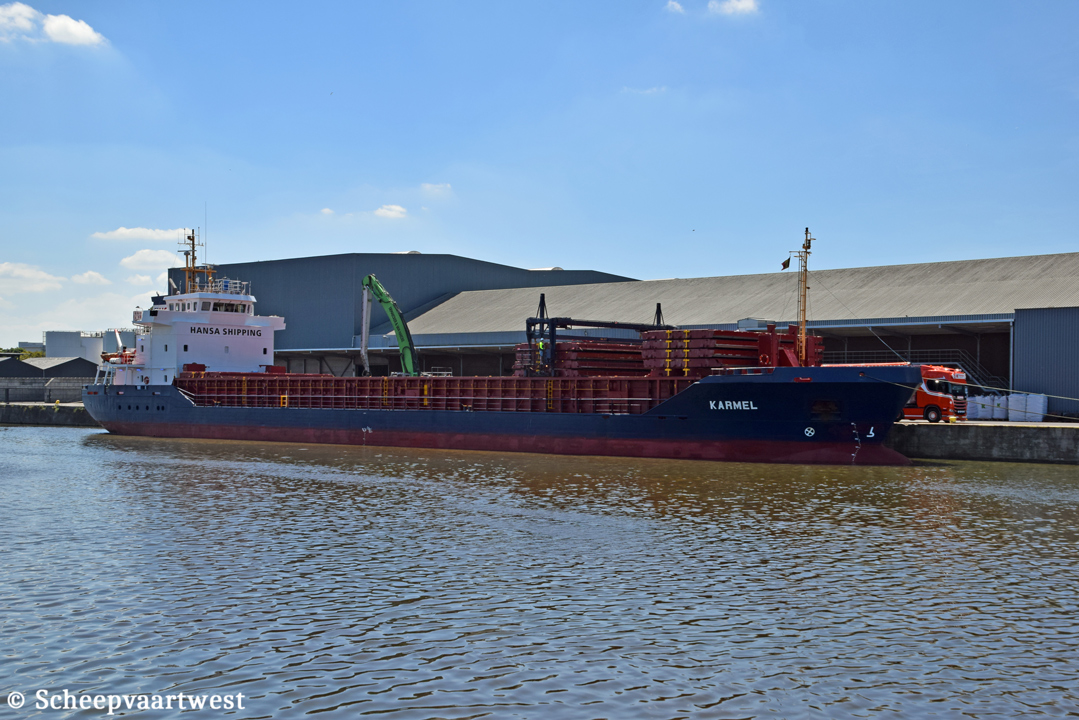

| Brugge 11 July 2022 |
 |
 |
 |
 |
|||
| Brugge 11/07/22 | Brugge 11/07/22 | Brugge 11/07/22 | Brugge 11/07/22 |
|
Name |
KARMEL |
|
Previous names |
2004 - 2011 Vindö |
|
Type |
Multi-purpose dry cargo ship, single decker |
|
IMO-number |
9290672 |
|
Call sign |
9HA2896 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2004 - 2011 Antigua & Barbuda, St. John's - Call sign: V2OM2 |
|
GT |
3.183 t |
|
DWT |
4.516 t |
|
NT |
1.765 t |
|
Number of 20ft containers |
216 |
|
Container capacity 14t |
171 |
|
Reefer capacity |
94 |
|
Length |
89,98 m overall 84,98 m between perpendiculars 85,19 m registered |
|
Breadth |
15,20 m registered |
|
Draught |
Summer: 5,25 m |
|
Keel to mast end |
31,50 m |
|
Forecastle |
8,37 m |
|
Bridge |
51,75 m |
|
Quarterdeck |
15,00 m |
|
Freeboard |
1.358 mm |
|
Depth |
6,60 m moulded |
|
Speed |
12,5 knots |
|
Built |
2004 |
|
Keel laid |
13/06/2002 |
|
Launch date |
13/12/2003 |
|
Date of completion |
29/01/2004 |
|
Builder |
Bodewes Shipyards B.V. Werfkade 22 9601 LG Hoogezand The Netherlands |
|
Yard number |
631 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
2 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke single acting 6 cylinder 255 x 400 mm combustion engine Mcr 1.850 kW / 2.515 hp at 750 rpm Year of manufacture: 2003 Manufacturer: Caterpillar Motoren GmbH & Co. KG Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 221 rpm |
|
Boilers |
1x Water heater, oil fired - 3,5 bar Heating surface: 7,0 m² |
|
Electric installations |
1x Plant 400/220 V - 175 kVA 1x Plant 400 V - 450 kVA 1x Plant 400 V - 175 kVA |
|
Shaft generator |
1x 450 kVA / 350 kW |
|
Generators |
2x Scania D9 95 M - 4 stroke 6 cylinder 115 x 144 mm diesel engines each Mcr 217 kW connected with generators each 150 kW / 400V/230 Volt 50 Hz |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 300 kW / 408 bhp, forward |
|
Number of holds |
1 61,50 x 12,65 x 8,42 m |
|
Cargo capacity |
Grain: 6.393 m³ / 225.700 ft³ |
|
Number of hatches |
1 61,50 x 12,65 m |
|
Anchor equipment |
3x Anchors weight each 2.280 kg Chain length: 467,50 m |
|
Tank capacities |
Ballast: 2.026 m³ |
|
Crew |
9 |
|
Manager |
Hansa Shipping OU Ahtri tn 12 10151 Tallinn Estonia |
|
Registered owner |
HS Karmel OU Care of Hansa Shipping OU Ahtri tn 12 10151 Tallinn Estonia |
|
Latest data adjustment |
28 July 2022 |
