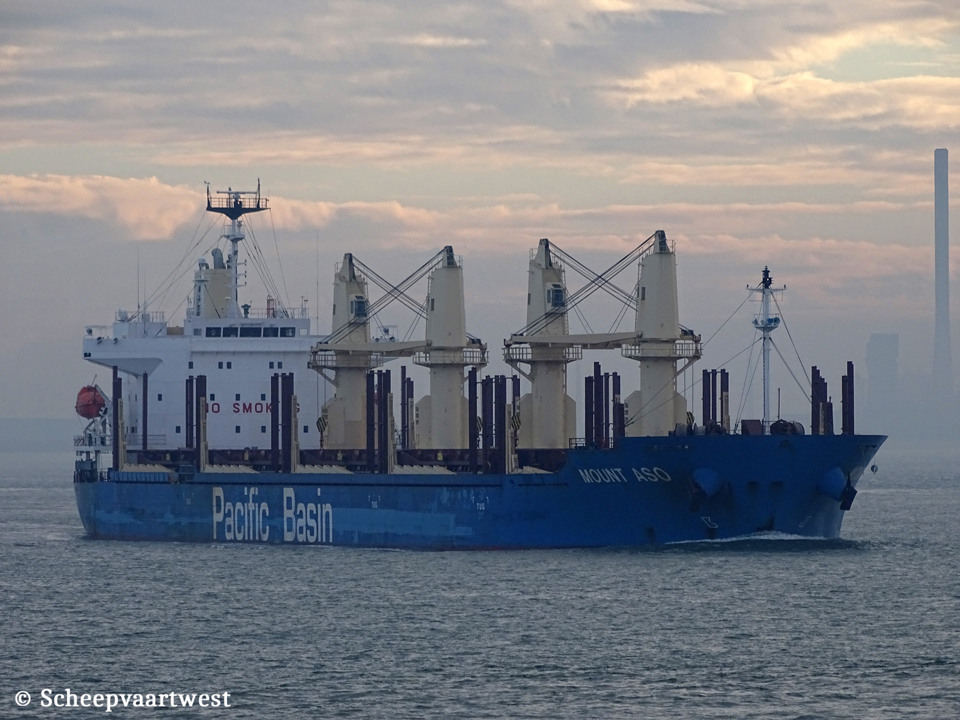

Mount Aso IMO 9763631 01
Westerschelde 23 November 2018

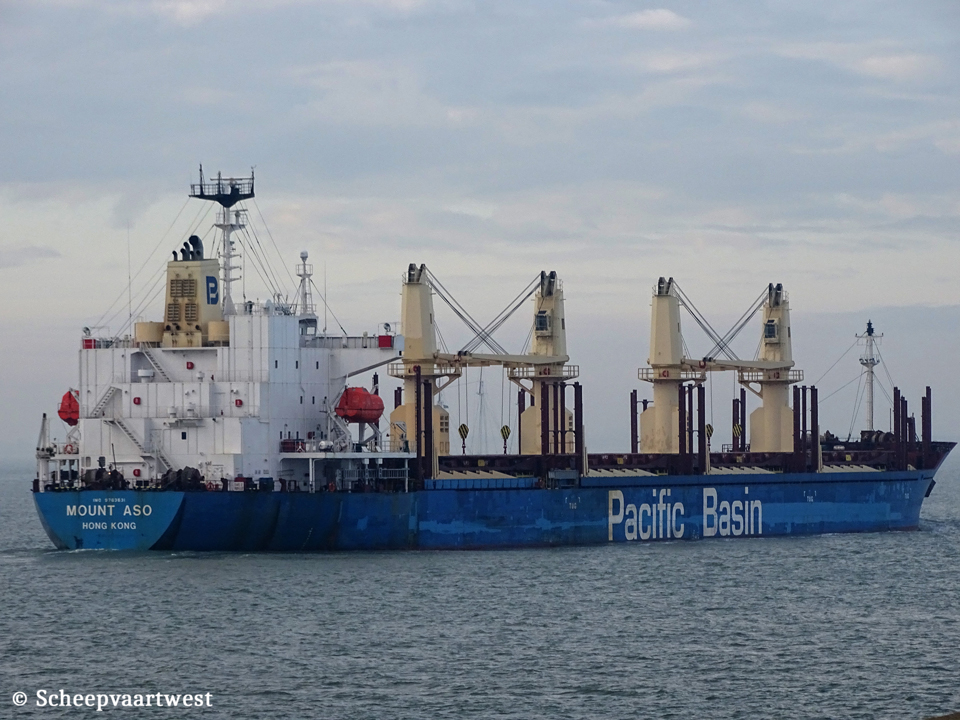

Mount Aso IMO 9763631 02
Westerschelde 23/11/18













Name

MOUNT ASO

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9763631

Call sign

VROV7

Flag

Hong Kong - China

Port of registry

Hong Kong

GRT

23.882 t

DWT

36.766 t

NRT

11.979 t

Length

183,00 m overall

175,70 m between perpendiculars

Breadth

29,50 m moulded

Draught

Summer: 10,37 m

Moulded L x B x D

175,70 x 29,50 x 15,00 m

Registered L x B x D

176,59 x 29,50 x 15,00 m

Freeboard

Summer: 4.688 mm

Depth

15,00 m moulded

Speed

14,5 knots

Built

2015

Keel laid

20/11/2013

Launch date

01/05/2015

Date of completion

29/10/2015

Builder

Minaminippon Shipbuilding Co., Ltd. Ozai Plant

Japan

Yard number

747

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Mitsui/MAN-B&W 5S50ME-B9 - 2 stroke 5 cylinder 500 x 2.214 mm combustion engine 6.370 kW / 8.661 hp at 104,5 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 500 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary Vertical boiler - 0,69 MPa

Evaporation: 2,31 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

4x Generatorsets total 1.786 kVA

Number of holds

5

Cargo hold capacity

Bale: 46.849 m³

Grain: 47.926 m³

Tank capacities

Fuel oil: 1.761,7 m³

Fresh water: 500,6 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

ISM & commercial manager

Pacific Basin Shipping HK Ltd.

31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Registered owner

Mount Aso Ltd.

Care of Pacific Basin Shipping (HK) Ltd , 31st Floor, One Island South, 2, Heung Yip Road, Wong Chuk Hang

Hong Kong

China

Latest data adjustment

13 July 2022
