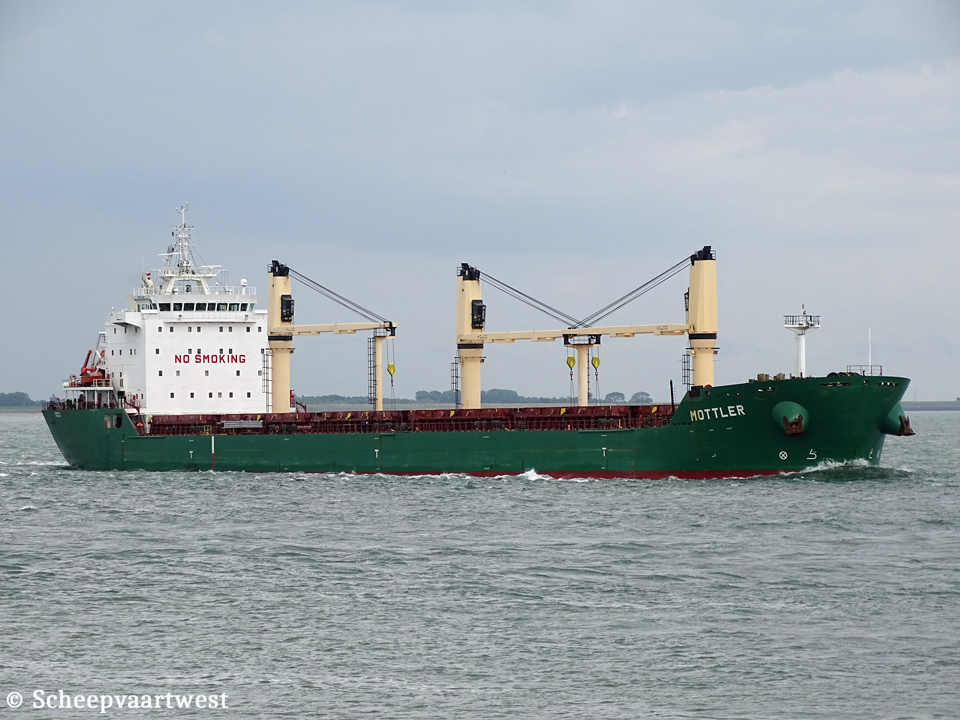

Mottler IMO 9477828 01

Westerschelde 19 June 2020



Name

MOTTLER

Type

Bulk carrier - Handysize

IMO-number

9477828

Call sign

5BQU2

Flag

Cyprus

Port of registry

Limassol

GT

19.814 t

DWT

Summer: 30.806,8 t

NT

10.208 t

Length

185,11 m overall

178,02 m between perpendiculars

Breadth

23,98 m extreme

23,70 m moulded

Draught

Summer: 10,40 m

Depth

14,60 m

Speed

14,0 knots

Built

2009

Keel laid

02/02/2009

Launch date

11/04/2009

Date of completion

29/10/2009

Builder

Shanhaiguan Shipbuilding Industry Co., Ltd.

Qinhuangdao

China

Yard number

SHG-022

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Single hull double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 x 1.932 mm combustion engine 8.280 kW

Reduced power: 7.200 kW at 118,0 rpm

Manufacturer: Yichang Marine Diesel Engine Co., Ltd.

Propellers

1x Fixed propeller - aft at 118,0 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar

Heating surface: 34,0 m²

Heating surface: 200,0 m²

Manufacturer: Qingdao (Qingdao-Seatech) Marine Boiler Works Ltd.

Electric installations

3x Plant 450 V - 850 kVA

1x Plant 450 V - 156 kVA

2x Plants, each 24 V - 200 Ah

4x Plants, each 24 V - 400 Ah

Generators

3x Yanmar 6S46MC-C main diesel generatorsets each 850 kVA

Emergency generator

1x 634 DSBG diesel generatorset 156 kVA

Batteries

4x Batteries for UPS lighting each 400 Ah

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 4.500 litres - 30,0 bar

1x Receiver 160 litres - 30,0 bar

1x Receiver 500 litres - 10,0 bar

1x Receiver 1.000 litres - 8,0 bar

Bow thruster

1x Transverse thruster 900 kW, forward

Number of holds

6

Hold 1: 19,20 x 14,20 x 20,00 m

Hold 2: 23,70 x 20,00 m

Hold 3: 21,40 x 20,00 m

Hold 4: 22,90 x 20,00 m

Hold 5: 21,40 x 20,00 ml

Hold 6: 20,00 x 19,20 x 6,40 m

Cargo hold capacity

Grain / Bale)

Hold 1: 4.662,8 / 4.579,1 m³

Hold 2: 7.675,2 / 7.475,6 m³

Hold 3: 7.400,4 / 7.218,1 m³

Hold 4: 6.241,6 / 6.217,7 m³

Hold 5: 7.397,2 / 7.219,3 m³

Hold 6: 5.257,7 / 5./201,1 m³

Total: 38.634,9 / 37/910,9 m³

Number of hatches

6

Hatch 1: 10,40 x 13,20 m

Hatch 2: 19,20 x 17,40 m

Hatch 3: 19,20 x 17,40 m

Hatch 4: 16,00 x 17,40 m

Hatch 5: 19,20 x 17,40 m

Hatch 6: 13,60 x 17,40 m

Hatch type

MacGregor high stowing & folding, operated by external hydraulic cylinders.

Tank capacities

Ballast: 15.632,9 m³

Anchor equipment

3x Anchors weight each 6.900 kg

Length: 605,00 m

Diameter: 64 mm

Cargo gear

3x Deck cranes - SWL 30,0 t each

Crew size

25

Manager

Navarone S.A.

6, Cheimarras Street

Marousi 151 25

Athens Greece

Registered owner

Tserico Shipping Ltd.

C/o Navarone SA

6, Cheimarras Street

Marousi 151 25

Athens Greece

Latest data adjustment

06 May 2021
