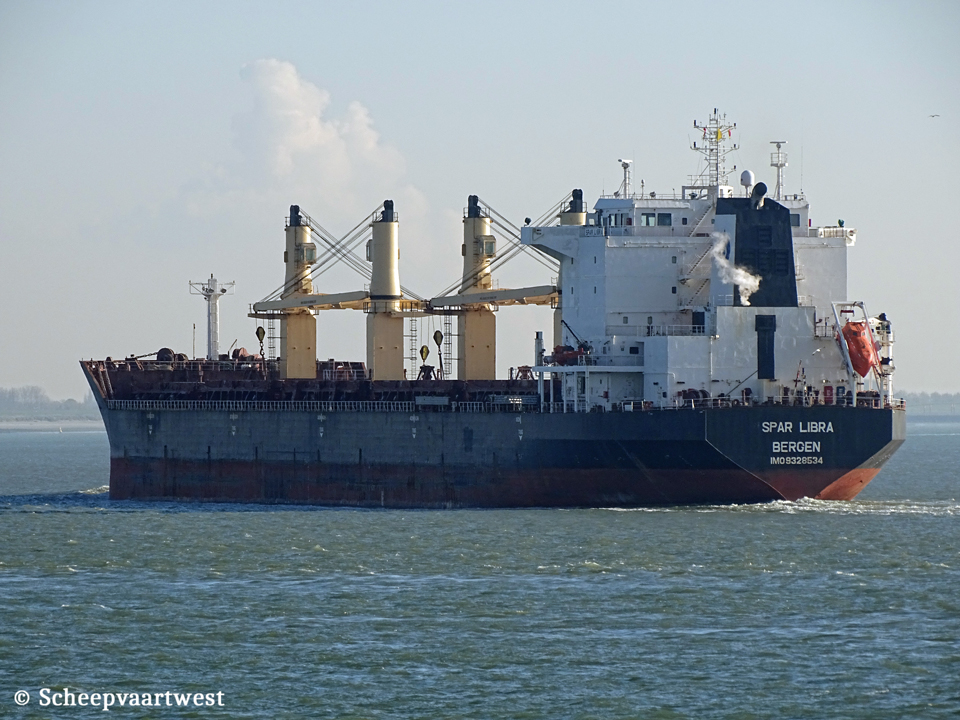

| Westerschelde 20 November 2019 |
|
Name |
SPAR LIBRA |
|
Previous names |
2006 - 2006 Arya Park 2006 - 2011 Bulk Navigator |
|
Type |
Bulk carrier - Supramax - Strengthened for heavy cargo loading |
|
IMO-number |
9328534 |
|
Call sign |
LAMX7 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
Previous flags |
2006 - 2011 Cyprus, Limassol - Call sign: C4JU2 |
|
GRT |
32.474 t |
|
DWT |
53.565 t |
|
NRT |
17.790 t |
|
Length |
189,99 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 12,56 m |
|
Moulded L x B x D |
183,05 x 32,26 x 17,50 m |
|
Keel to mast end |
45,00 m |
|
Freeboard |
Summer: 4.986 mm |
|
Depth |
17,50 m moulded |
|
Speed |
14,2 knots |
|
Built |
2006 |
|
Keel laid |
29/12/2004 |
|
Launch date |
26/01/2005 |
|
Date of completion |
26/04/2006 |
|
Builder |
Chengxi Shipyard Co., Ltd. Jiangyin China |
|
Yard number |
CX4213 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x HHM/MAN-B&W 6S50MC-C - 2 stroke 6 cylinder 200 x 2.000 mm combustion engine 9.480 kW / 12.890 bhp at 127,0 rpm Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 469 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,9 MPa Evaporation: 3,10 t/h Manufacturer: Saacke Qingdao Marine Boiler Co.,Ltd. |
|
Generators |
4x Diesel generatorsets total 2.706 kVA |
|
Number of holds |
5 |
|
Cargo hold capacity |
Grain: 65.752 m³ Bale: 64.000 m³ |
|
Number of hatches |
5 |
|
Tank capacities |
Fuel oil: 2.238 m³ Fresh water: 239 m³ |
|
Cargo gear |
4x Deck cranes - SWL 36,0 t each Grabs: 4x Mechanical |
|
Commerical manager |
Spar Shipping AS Kokstadflaten 30 5257 Kokstad Norway |
|
ISM manager |
Fleet Management Limited 27 Th Floor, South Island Place 8 Wong Chuk Hang Road Hong Kong China |
|
Registered owner |
Spar Shipping AS Kokstadflaten 30 5257 Kokstad Norway |
|
Latest data adjustment |
15 April 2022 |
