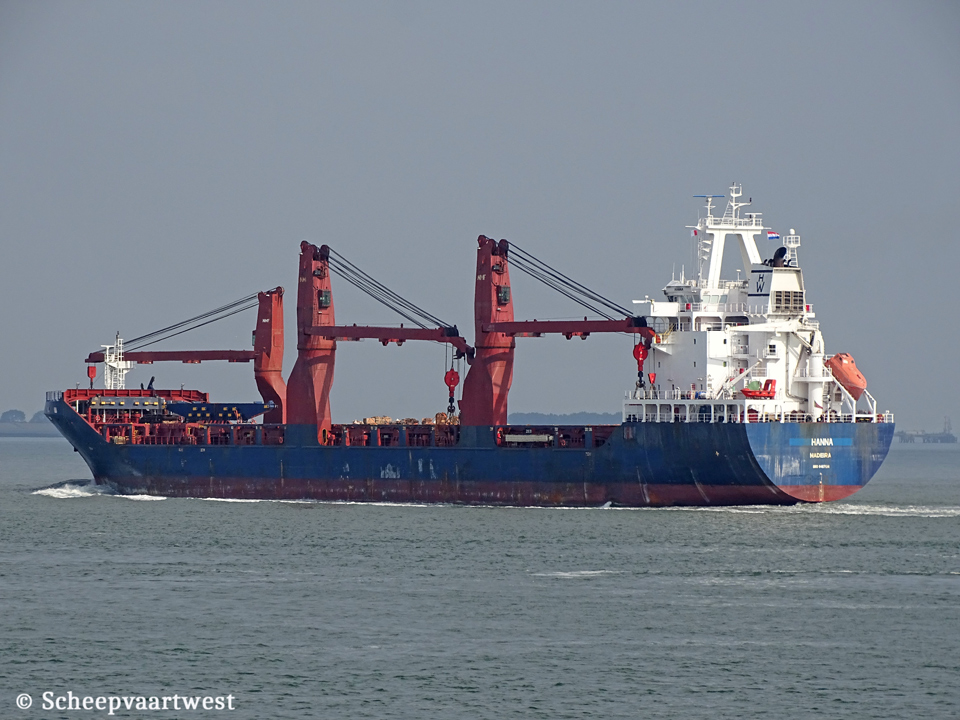

| Westerschelde 15 August 2020 |
|
Name |
HANNA |
|
Previous names |
2010 - 2011 Beluga Project 2011 - 2013 Baltic Winter 2013 - 2015 Rickmers Dubai 2015 - 2015 Thorco Wollow 2015 - 2020 Baltic Winter |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers - Heavy lift carrier |
|
IMO-number |
9467134 |
|
Call sign |
CQCT |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2011 - 2015 Liberia, Monrovia - Call sign: A8XF6 |
|
GT |
15.549 t |
|
DWT |
19.100 t |
|
NT |
6.089 t |
|
Number of 20ft containers |
On deck: 532 In hold: 487 Total: 1.019 |
|
Number of 40ft containers |
In hold: 212 + 63 TEU On deck: 213 + 106 TEU Total: 425 + 169 TEU |
|
Container capacity 14t |
646 |
|
Reefer plugs |
122 |
|
Length |
166,15 m overall 157,96 m between perpendiculars |
|
Breadth |
22,90 m |
|
Draught |
Summer: 9,80 m |
|
Keel to mast end |
45,62 m |
|
Freeboard |
4.118 mm |
|
Depth |
13,90 m moulded |
|
Speed |
Max: 16,3 knots |
|
Built |
2011 |
|
Date of completion |
09/2011 |
|
Builder |
Qingshan Shipyard Of China Changjiang National Shipping Group China |
|
Yard number |
20060323 |
|
Hull material |
Steel |
|
Movable bulkheads |
Adjustable bulkheads in multiple positions |
|
Main engine |
1x MAN-B&W 7L58/64CD - 2 stroke 7 cylinder 580 x 640 mm combustion engine 9.800 kW / 13.315 hp at 428 rpm Build: 06/2009 Builder: Main Diesel SE Stadtbachstrasse 1, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHM 54168TAO 130,00 m² - 9,0 bar |
|
Shaft generator |
1 |
|
Generators |
3x Caterpillar main diesel generatorsets each 738 kVA - 590 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 500 kVA - 400 kW - 611 hp |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
2 |
|
Cargo hold capacity |
Grain & bale: 23.720 m³ / 747.046 ft³ |
|
Deck |
113,30 x 18,00 m |
|
Floor space |
Under deck: 4.281 m² / 46.080 ft² On deck: 1.992 m² / 21.442 ft² |
|
Number of hatches |
2 |
|
Hatch cover type |
MacGregor hydraulic operated combined folding type |
|
Ma permitted loads |
Tanktop: 18,0 t/m² Tweendeck: 3,50 t/m² On hatch cover: 5,0 t/m² On pontoon covers: 8,0 t/m² (middle of hatch 2) |
|
Tank capacities |
HFO: 1.570 m³ Gas oil: 235 m³ Ballast: 9.600 m³ Fresh water: 192 m³ |
|
Cargo gear |
2x NMF deck crane - SWL 400 t each, portside 1x NMF deck crane - SWL 120t, starboard |
|
Commerical manager |
SAL Heavy Lift GmbH Brooktorkai 20 20457 Hamburg Germany |
|
Technical manager |
Reedereiverwaltung Heino Winter GmbH & Co. KG Hein-Saß-Weg 27 21129 Hamburg Germany |
|
Registered owner |
SAL Shipping UG (haftungsbeschraenkt) & Co. KG MS 'HANNA' Care of SAL Heavy Lift GmbH Brooktorkai 20 20457 Hamburg Germany |
|
Latest data adjustment |
13 February 2022 |
