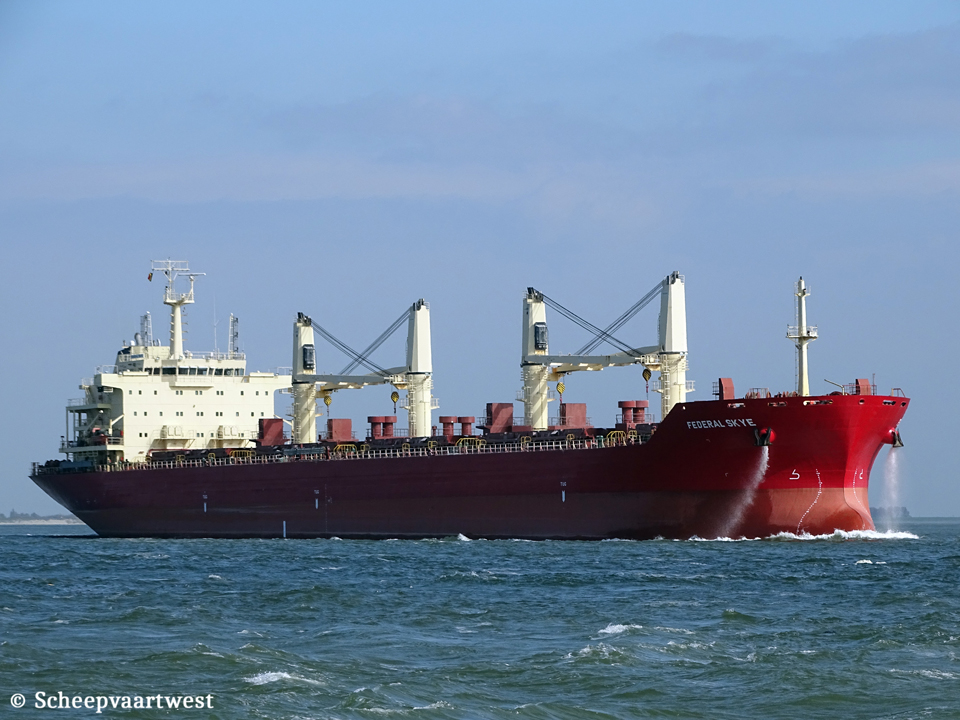

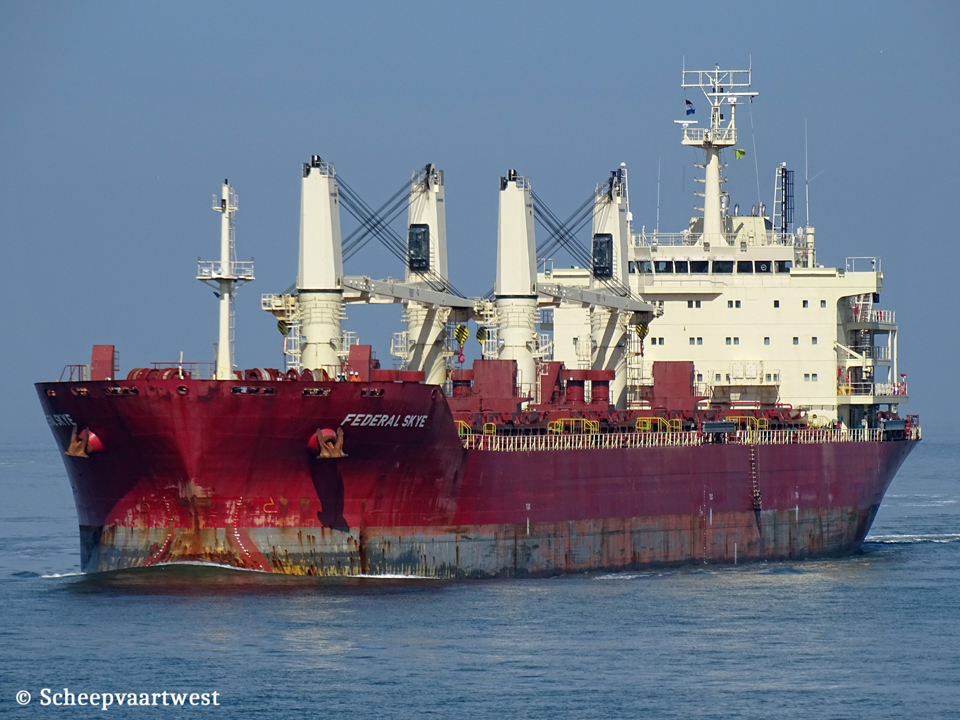

Federal Skye IMO 9606833 01
Westerschelde 13 September 2019



Name

FEDERAL SKYE

Type

Bulk carrier - Handysize

IMO-number

9606833

Call sign

V7WS9

Flag

Marshall Islands

Port of registry

Majuro

GRT

24.196 t

DWT

Summer: 37.140 t

Winter: 36.055 t

NRT

12.205 t

Panama: 20.144 t

Suez: 22.208 t

Length

189,99 m overall

183,00 m between perpendiculars

Breadth

28,31 m

Draught

Summer: 10,52 m

Winter: 10,30 m

Depth

15,20 m

Speed

14,5 knots

Built

2012

Keel laid

24/12/2010

Launch date

14/11/2011

Delivery date

13/04/2012

Builder

Zhejiang Ouhua Shipbuilding Co., Ltd.

China

Yard number

628

Hull material

Steel

Hull type

Single hull

Continuous decks

1

Main engine

1x Wärtsilä 6RTA48T - 2 stroke 6 cylinder 480 x 2.000 mm combustion engine 7.000 kW

Propellers

1x Fixed pitch propeller

Number of holds

5

Hold 1: 25,60 x 9,10 - 20,20 m

Hold 2: 28,80 x 20,20 m

Hold 3: 26,40 x 20,20 m

Hold 4: 28,80 x 20,20 m

Hold 5: 28,80 x 20,20 - 7,20 m

Cargo hold capacity

Grain / Bulk

Hold 1: 7.605 m³ / 7.400 m³

Hold 2: 10.757 m³ / 10.551 m³

Hold 3: 9.884 m³ / 9.683 m³

Hold 4: 10.757 m³ / 10.551 m³

Hold 5: 9/901 m³ / 9.746 m³

Total: 48.904 m³ / 47.931 m³

Hold ventilation

Mechanical ventilation

Number of hatches

Hatch 1: 16,00 x 15,00 m

Hatch 2: 22,40 x 18,00 m

Hatch 3: 19,20 x 18,00 m

Hatch 4: 22,40 x 18,00 m

Hatch 5: 22,40 x 18,00 m

Hatch type

Folding hydraulic

Max permitted loads

Tanktop:

Hold 1: 25,0 t/m²

Hold 2: 20,0 t/m²

hold 3: 25,0 t/m²

Hold 4: 20,0 t/m²

Hold 5: 25,0 t/m²

Tank capacities

IFO: 1.261 m³

MGO: 400 m³

Cargo gear

4x Electro hydraulic deck cranes - SWL 30,0 t each

Crew size

22

Commerical manager

Fednav Ltd.

Bureau 3500, 1000, rue de la Gauchetiere O

Montreal QC H3B 4W5

Canada

ISM Manager

Anglo-Eastern Ship Management Ltd.

17th Floor, Kingston International Centre, 19, Wang Chiu Road, Kowloon Bay, Kowloon

Hong Kong

China

Registered owner

Federal Cornwallis Ltd.

Care of Fednav Ltd.

Bureau 3500, 1000, rue de la Gauchetiere O

Montreal QC H3B 4W5

Canada

Latest data adjustment

28 December 2021
