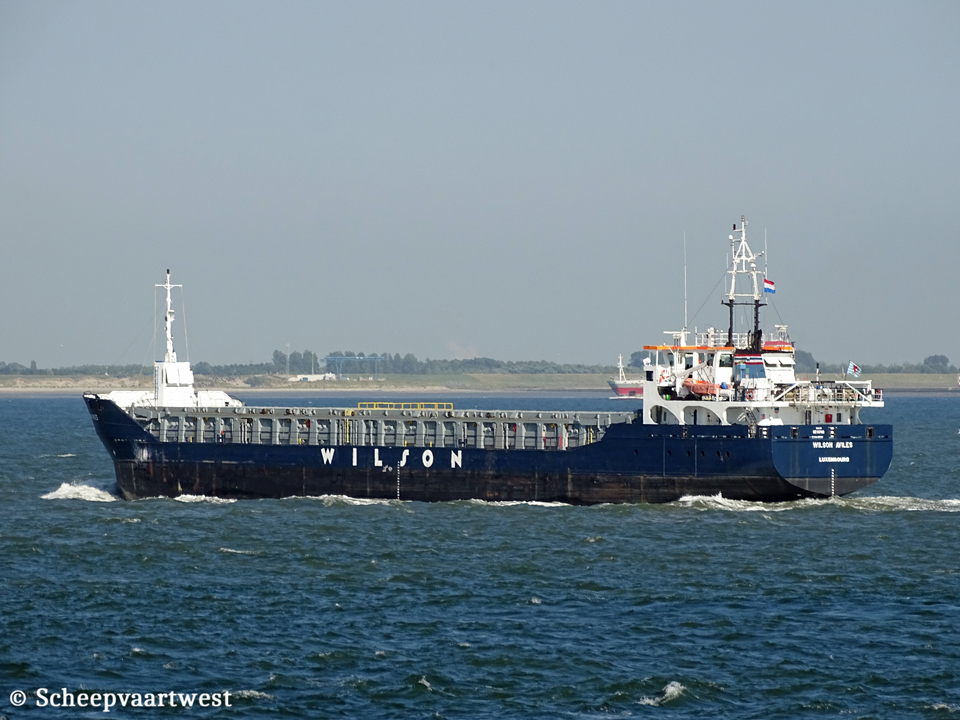

Westerschelde 30 June 2019 |
|
Name |
WILSON AVILES |
|
Previous names |
2008 build as: Hero Omken |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9313709 |
|
Call sign |
LXWB |
|
Flag |
G.D. Luxembourg |
|
Port of registry |
Luxenbourg City |
|
Previous flags |
Malta, Valletta - Call sign: 9HQT9 |
|
GT |
2.451 t |
|
DWT |
Summer: 3.606 t Winter: 3.486 t |
|
NT |
1.325 t |
|
Number of 20ft containers |
On deck: 20 |
|
Length |
88,30 m overall 84,60 m between perpendiculars |
|
Breadth |
12,50 m extreme 12,40 m moulded |
|
Draught |
Summer: 5,14 m Winter: 5,03 m |
|
Keel to top antenna |
Fwd / aft: 20,70 m / 23,60 m Fwd / aft: 12,90 m / 15,50 m lowered mast |
|
Air draft |
19,25 m |
|
Depth |
7,76 m moulded |
|
Speed |
10,5 knots |
|
Built |
2008 |
|
Keel laid |
27/08/2003 |
|
Launch date |
28/07/2008 |
|
Date of completion |
08/10/2008 |
|
Builder |
Slovenske Lodenice Komarno A.S. Slovakia |
|
Yard number |
2111 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x Movable bulkheads /9 different positions /4 different compartments |
|
Main engine |
1x Wärtsilä W6 L20 - 4 stroke 6 cylinder combustion engine 1.200 kW Manufacturer: Wärtsilä Finland Oy |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1(Hot water heater) |
|
Shaft generator |
1x 172 kW |
|
Generators |
1x Sisu 645 DSBIG main diesel generatorset 96 kW 1x Sisu 620 DSBIG main diesel generatorset 93 kW |
|
Emergency generator |
1x Sisu 420 DSRG diesel generatorset |
|
Bow thruster |
1x 130 kW |
|
Number of holds |
2 Hold 1: 24,70 x 10,10 x 7,80 m Hold 2: 31,40 x 10,10 x 7,80 m |
|
Cargo hold capacity |
Bale / Grain Hold 1: 1.969 m³ / 69.535 ft³ Hold 2: 2.487 m³ / 87.833 ft³ |
|
Number of hatches |
2 Hatch 1: 25,20 x 10,10 m Hatch 2: 31,75 x 10,10 m |
|
Hatch type |
TTS multifold crocodile |
|
Max permitted loads |
Deck/hatch cover: 1,6 t/m² Tanktop: 15,0 t/m² |
|
Tank capacities |
Ballast: 1.377,3 m³ MGO: 44 m³ IFO: 170 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 30 mm |
|
Crew size |
8 |
|
Manager |
Vertom Bereederungs GmbH & Co. KG Borgwardring 80 26802 Moormerland Germany |
|
Operator |
Wilson ASA Bradbenken 1 5835 Bergen Norway |
|
Registered owner |
Vertom-Bojen Schiffahrts MS "Hero Omken" GmbH & Co. KG |
|
Latest data adjustment |
03 May 2021 |
