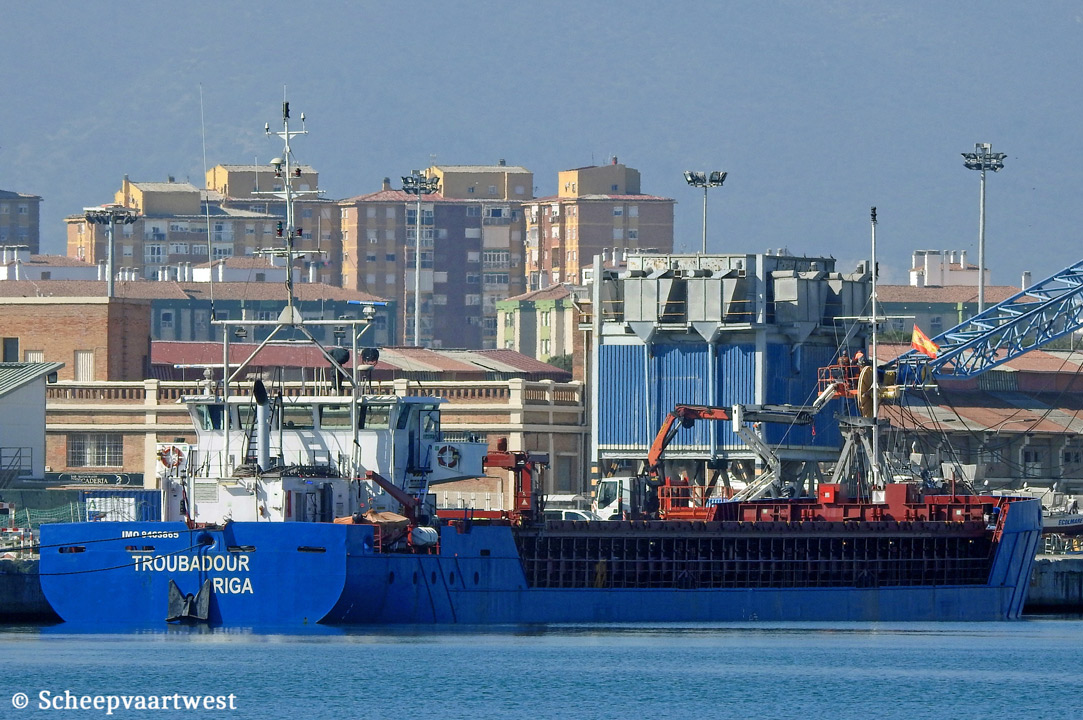

Malaga, Spain 11 March 2021 |
|
Name |
TROUBADOUR |
|
Previous names |
2011 - 04/2019 Hanoi |
|
Type |
General cargo dry ship - Container ship |
|
IMO-number |
9463865 |
|
Call sign |
YLOZ |
|
Flag |
Latvia |
|
Port of registry |
Riga |
|
Previous flags |
2011 - 04/2019 Gibraltar, Gibraltar - Call sign: ZDKA7 |
|
GT |
1.801 t |
|
DWT |
Summer: 2.570 t |
|
DWCC |
Summer: 2.538 t Winter: 2.455,51 t |
|
NT |
927 t |
|
Number of 20ft containers |
54 in hold |
|
Length |
87,50 m overall 84,30 m between perpendiculars |
|
Breadth |
11,30 m |
|
Draught |
Summer: 4,15 m 3,15 m in ballast |
|
Air draft |
18,50 m in ballast |
|
Freeboard |
1.258 mm |
|
Depth |
4,10 m |
|
Speed |
Service: 10,5 knots Max: 11,2 knots |
|
Built |
2011 |
|
Date of completion |
05/01/2011 |
|
Builder |
Thanh Long Shipbuilding Industry Co. Vietham |
|
Yard number |
9417 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
19 |
|
Movable bulkheads |
2x Movable grain bulkheads with 12 stowage positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M25 - 4 stroke 6 cylinder 200 x 300 mm combustion engine 1.140 kW / 1.549 hp at 1.000 rpm Build: 12/02/2008 Builder: Caterpillar Motoren Gmbh & Co., Kg - Germany |
|
Propellers |
1x Fixed pitch propeller - aft at 286 rpm |
|
Generators |
2x Diesel generatorsets each 137 kVA - 110 kW - 145 hp |
|
Emergency & harbour gen. |
1x Diesel generatorset 71 kVA - 57 kW - 349 hp |
|
Bow thruster |
1x 267 KW |
|
Number of holds |
1x Box shaped 56,70 x 9,30 x 6,50 m |
|
Cargo hold capacity |
Bale & Grain: 3.425 m³ - 119.546 ft³ |
|
Hold ventilation |
Electrically driven hold ventilation for 6 air changes per hour |
|
Number of hatches |
1 56,70 x 9,30 m |
|
Hatch type |
Steel pontoon hatches with hatch cover gantry crane |
|
Max permitted loads |
Tanktop: 12,0 t/m² |
|
Tank capacities |
MDO: 113 m³ Fresh water: 20 m³ Water ballast: 1.300 m³ |
|
Crew |
6 |
|
Registered owner |
Baltnautic Shipping Ltd. J. Janonio g. 20 Klaipėda 92251 Lithuania |
|
Latest data adjustment |
22 March 2021 |
