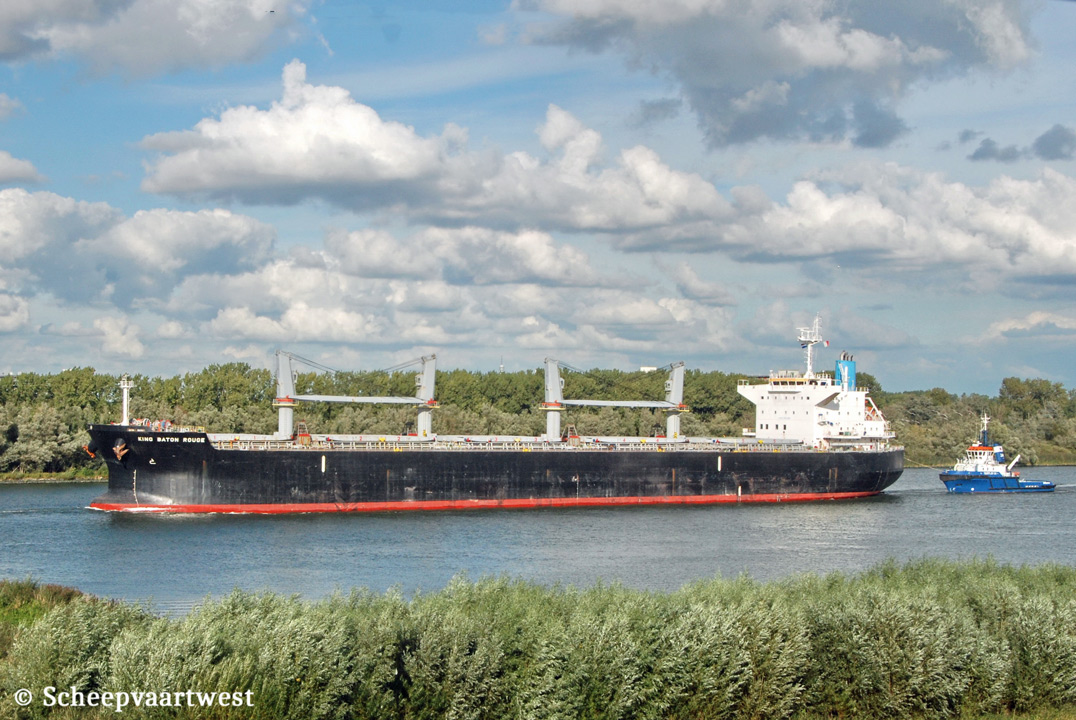

King Baton Rouge IMO 9643207 01

Spijkenisse, The Netherlands 06 September 2020



Name

KING BATON ROUGE

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9643207

Call sign

3FXC

Flag

Republic of Panama

Port of registry

Panama City

GT

31.882 t registered

DWT

55.884 t

NT

18.495 t registered

Length

189,90 m overall

Breadth

32,25 m moulded

Draught

Summer: 12,72 m

Moulded L x B x D

183,00 x 32,25 x 18,10 m

Registered L x B x D

183,61 x 32,25 x 18,10 m

Freeboard

Summer: 5.424 mm

Depth

18,10 m moulded

Speed

Max: 15,7 knots

Built

2014

Keel laid

20/12/2011

Launch date

14/02/2014

Date of completion

21/05/2014

Builder

Mitsui Engineering & Shipbuilding Co., Ltd. Chiba Shipyard

Ichihara

Japan

Yard number

1853

Hull material

Steel

Hull type

Single hull

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.390 kW at 99,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 500 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 6,0 bar

Evaporation: 2,74 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

4x Generatorsets total 2.050 kVA

Number of holds

5

Cargo hold capacity

Bale: 68.020 m³

Grain: 71.039 m³

Number hatches

5

Tank capacities

Fuel oil: 2.283 m³

fresh water: 343 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

Manager

Reitaku Kaiun Co., Ltd.

3496-1, Kinoura, Hakata-cho, Imabari-shi, Ehime-ken, 794-2305, Japan

Registered owner

Murakami Sekiyu Co. Ltd./ Tradewind Navigation S.A.

Japan

Latest data adjustment

17 February 2021
