Vlissingen 26 March 2019 |
|
Name |

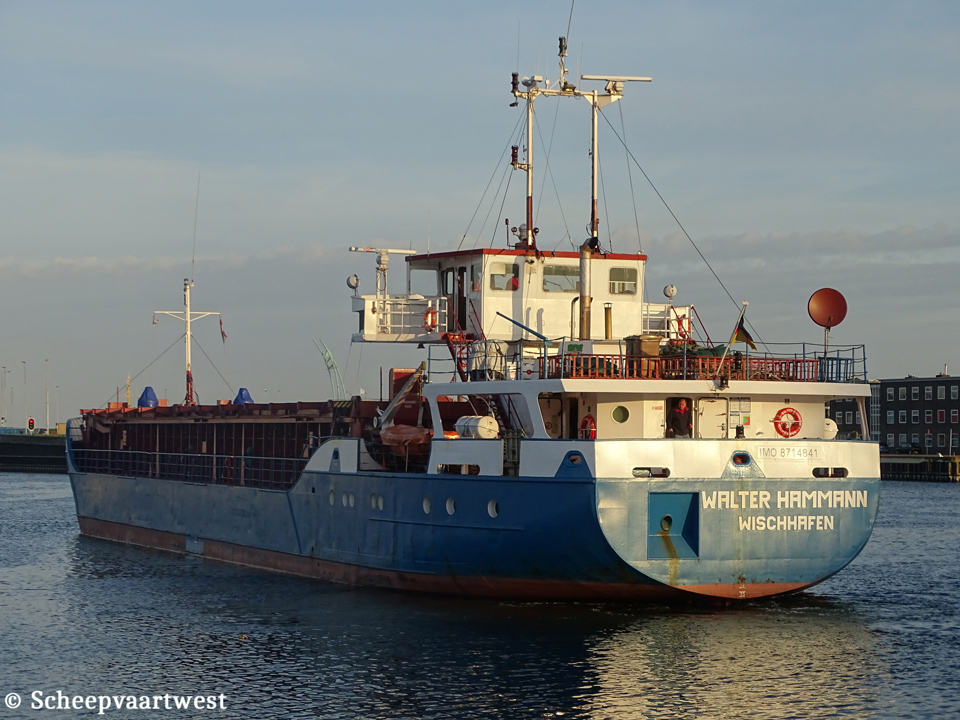

WALTER HAMMANN |
|
Type |
General cargo ship |
|
IMO-number |
8714841 |
|
Call sign |
DFVT |
|
Flag |
Germany |
|
Port of registry |
Wischhafen |
|
GT |
1.156 t |
|
DWT |
Summer: 1.323 t |
|
DWCC |
Summer/winter: 1.200 t |
|
NT |
346 t |
|
Number of 20ft containers |
Under deck: 30 On deck 20 Total: 50 |
|
Length |
58,75 m overall 55,20 m between perpendiculars |
|
Breadth |
11,65 m |
|
Draught |
Summer: 3,53 m |
|
Air draft |
10,00 m |
|
Depth |
5,50 m |
|
Speed |
9,5 knots |
|
Built |
1988 |
|
Keel laid |
11/04/1988 |
|
Launch date |
19/11/1988 |
|
Date of completion |
12/1988 |
|
Builder |
Kötter Werft GmbH Haren/Ems Germany |
|
Yard number |
82 |
|
Hull material |
Steel |
|
Movable bulkheads |
2x movable bulkheads (7 positions) |
|
Main engine |
1x MWM TBD 440 - 6K - 4 stroke 6 cylinder 230 x 720 mm combustion engine 750 kW / 978 hp at 250 rpm Build: 1986 Builder: Motorenwercke Mannheim AG - Germany |
|
Propellers |
1x Screw propeller solid |
|
Generators |
1x Diesel generatorset 33 kVA - 26 kW - 43 hp 1x Diesel generatorset 84 kVA - 67 kW - 102 hp |
|
Number of holds |
1 34,00 x 9,30 x 6,70 m |
|
Cargo hold capacity |
Grain: 78.291 ft³ Bale: 74.866 ft³ |
|
Hatch type |
Folding covers |
|
Max permitted loads |
Tanktop: 10,0 t/m² Hatch over: 1,0 t/m² |
|
Tank capacities |
Fuel: 911 m³ Ballast: 740 m³ |
|
Anchor equipment |
Length: 357,50 m |
|
Manager |
Karl Meyer Reederei GmbH & Co., KG Stader Str. 55-63 21737 Wischhafen Germany |
|
Operator |
Wilhelm E.F. Schmid GmbH Am Außenhafen 25805 Husum Gemany |
|
Registered owner |
Hammann & Prahm Reederei GmbH & Co KG ''MS Walter Hammann'' Stader Str. 55-63 21737 Wischhafen Germany |
|
Latest data adjustment |
03 December 2020 |
