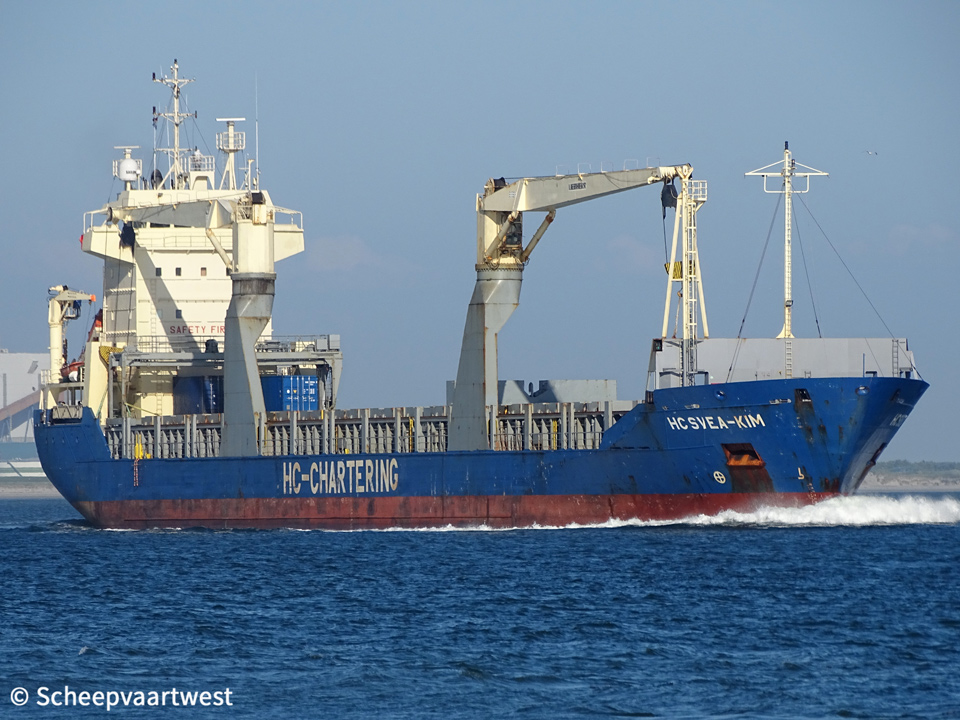

HC Svea Kim 01

Westerschelde 20 June 2018



Name

HC SVEA-KIM

Previous names

2000 - 08/2001 Katja

08/2001 - 05/2002 MSC Apapa

05/2002 - 02/2013 Katja

Type

Multi-purpose geared dry cargo ship strengthened for heavy cargo and equipped for carrying container

IMO-number

9235490

Call sign

V2BB

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

6.382 t

DWT

Summer: 8.961 t

NT

3.419 t

Number of 20ft containers

In hold: 262

On deck: 32

Total: 294

Reefer plugs

40

Length

129,45 m overall

123,08 m between perpendiculars

Breadth

15,85 m

Draught

Summer: 7,45 m

Depth

10,20 m

Speed

Max: 15,0 knots

Service: 13,0 knots

Built

2000

Builder casco

Damen Shipyard Galati

Romania

Builder completion

Damen Shipyards Hoogezand

The Netherlands

Yard number

810

Hull material

Steel

Main engine

1x MaK 9M43C - 9 cylinder combustion engine 4.320 kW at 600 rpm

Propellers

1x Controllable pitch propeller

Generators

2x Saab-Scania D12- 4 stroke 6 cylinder 127 x 154 mm diesel engine each 275 kW connected with generators

Bow thruster

400 kW

Number of holds

2x Boxshaped

Hold 1: 38,65 x 13,15 x 11,05 m

Hold 2: 52,19 x 13,15 x 11,05 m

Cargo hold capacity

Grain / bale: abt 451.144 ft³ / 12.775 m³

Without tweendeck:

Hold 1: abt 184.873 ft³ / 5.235 m³

Hold 2: abt 266.271 ft³ / 7.540 m³

With tweendecks:

Hold 1: abt 4.970,9 m³

Hold 2: abt 7.087,9 m³

Hold ventilation

Hold 1: 26.000 m³/hour x 2 pcs

Hold 2: 36.000 m³/hour x 2 pcs

Floor space

Total of abt 2.615 m² of which

Weatherdeck

Hold 1: 510 m²

Hold 2: 686 m²

Tweendeck

Hold 1: 346 m²

Hold 2 :686 m²

Tanktop

Hold 1: 477 m²

Hold 2: 667 m²

Tweendecks can be placed in hold 1 or 2 or as bulkheads

Deck strength

Tanktop load: abt 20 t/m²

Tweendeck load: abt 3,5 t/m²

Weatherdeck load: abt 1,75 t/m²

Cargo gear

2x Deck cranes starboardside mounted - SWL 60,0 t each

Crew size

12

Manager

HC-Chartering GmbH & Co. KG (Hanse Capital)

Breite Straße 61

22767 Hamburg

Germany

Registered owner

HC Svea-Kim Schifffahrts UG (Haftungsbeschrankt) Co., KG

c/o IMM Shipping GmbH & Co. KG

Breite Straße 61

22767 Hamburg

Germany

Latest data adjustment

28 October 2020
