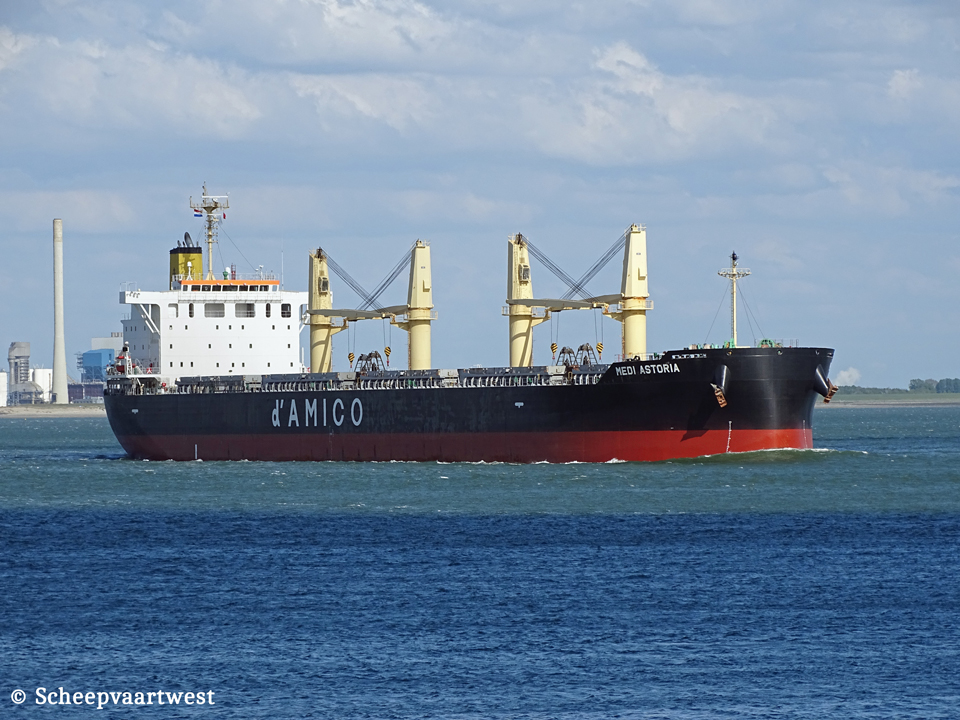

Medi Astoria IMO 9806770 03

Westerschelde 13 May 2020

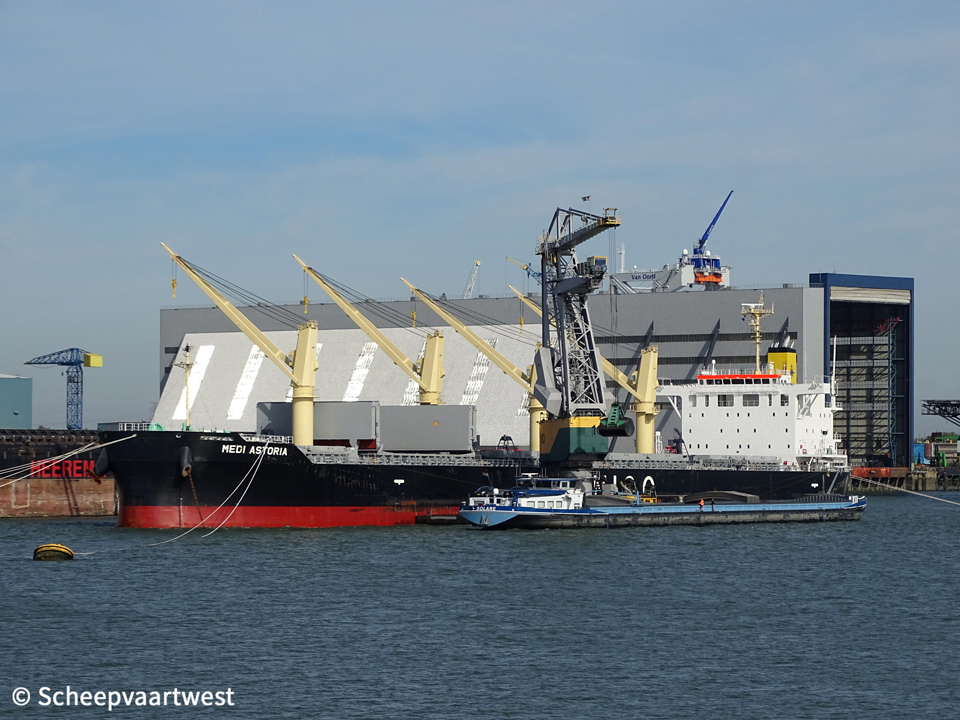

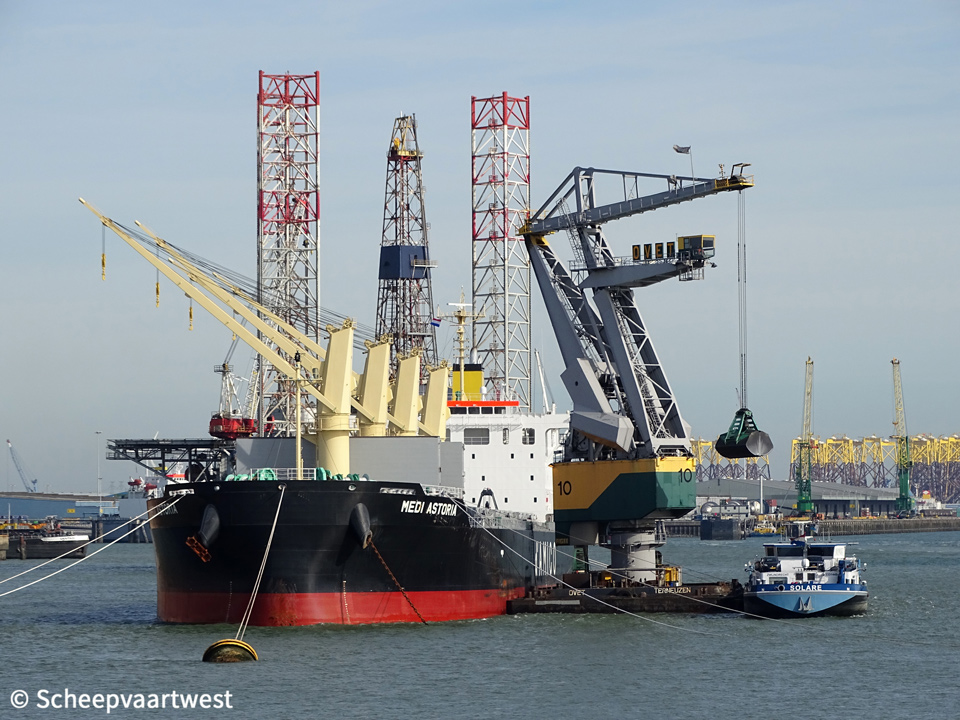

Medi Astoria 02   Medi Astoria 01
Vlissingen 12/10/18   Vlissingen 12/10/18


Name

MEDI ASTORIA

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9806770

Call sign

9V3075

Flag

Republic of Singapore

Port of registry

Singapore City

GT

35.024 t registered

DWT

61.228 t

NT

19.844 t registered

Length

199,92 m overall

Breadth

32,26 m moulded

Draught

Summer: 13,02 m

Moulded L x B x D

196,50 x 32,26 x 18,70 m

Registered L x B x D

196,50 x 32,26 x 18,70 m

Freeboard

5.729 mm

Depth

18,70 m moulded

Speed

Service: 14,5 knots

Max: 15,9 knots

Built

2017

Keel laid

15/10/2015

Launch date

29/11/2016

Date of completion

28/03/2017

Builder

Shin Kurushima Toyohashi Shipbuilding Co., Ltd.

Toyohashi

Japan

Yard number

3695

Hull material

Steel

Main engine

1x MAN-B&W/Mitsui 6S50ME-B9 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.880 kW at 99,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 515 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,18 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Main diesel generatorsets each 500 kW

Number of cargo holds

5

Cargo hold capacity

Bale: 74.277,32 m³

Grain: 77.476,58 m³

Tank capacities

Fuel oil: 2.653,6 m³

Fresh water: 354,6 m³

Cargo gear

4x Deck cranes - SWL 30,7 t each

Manager

Argo Navis Pte. Ltd.

6 Shenton way #35-01 OUE Downtown 2

068809 Singapore

Republic of Singapore

Registered owner

Grace Ocean Private Limited

6 Shenton way #35-01 OUE Downtown 2

068809 Singapore

Republic of Singapore

Latest data adjustment

04 July 2023
