Westerschelde 23 August 2018 |
 |
| Westerschelde 23/08/18 |
|
Name |

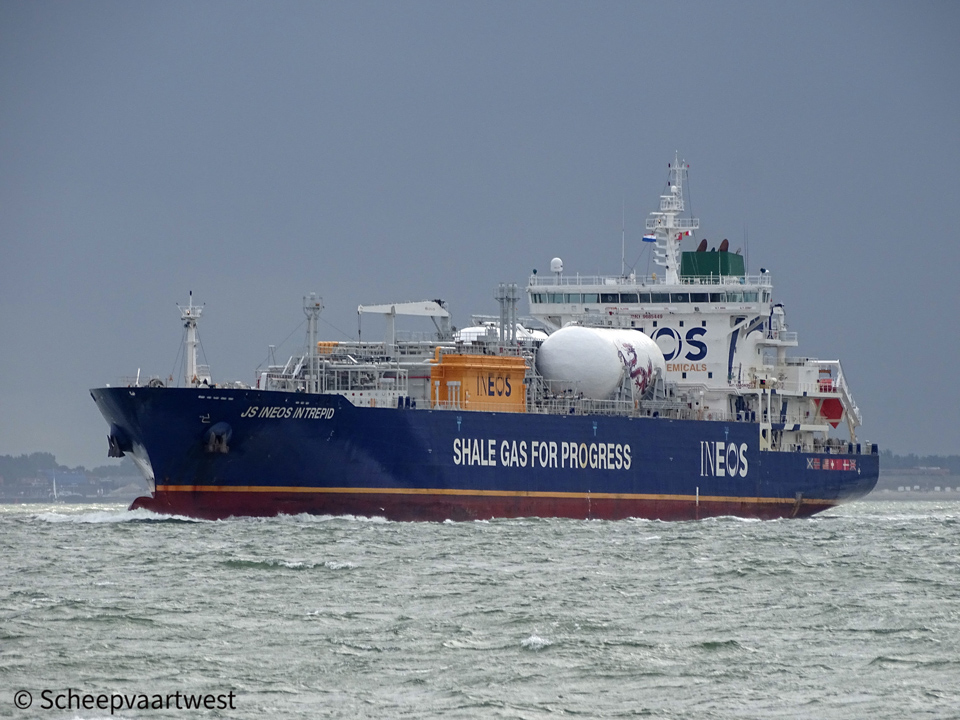

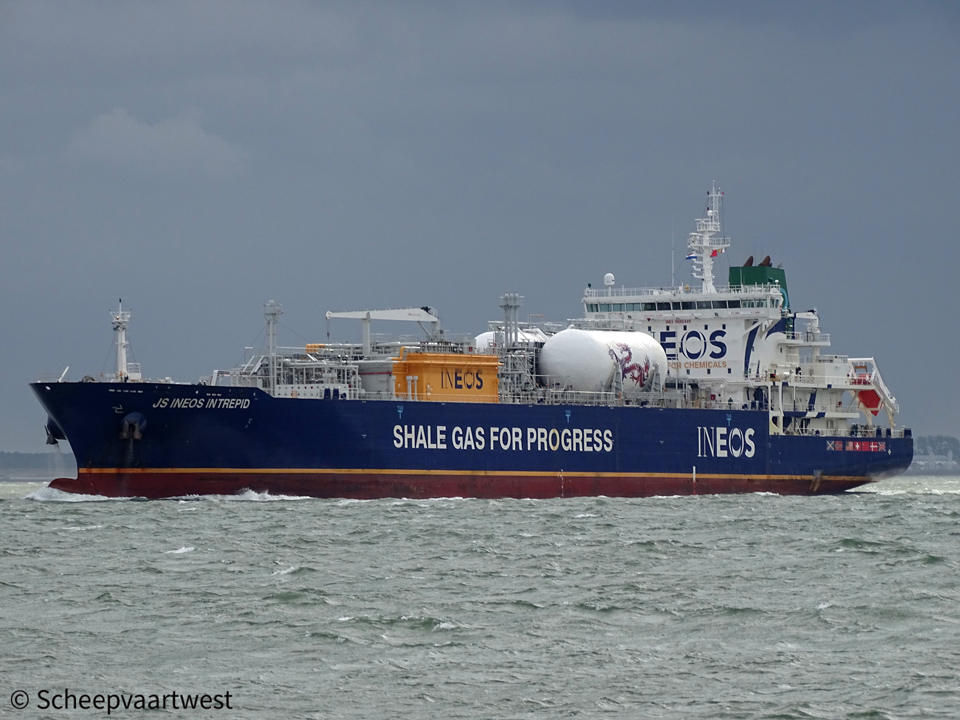

JS INEOS INTREPID |
|
Type |
Liquefied gas carrier - LNG/LPG tanker |
|
Transport type |
Semi-Refrigerated |
|
Main products |
Butane - Chemicals - Etylene - Liquefied natural gas - Vinyl-Chloride monomer |
|
IMO-number |
9685449 |
|
Call sign |
OWKN2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
22.887 t |
|
DWT |
Summer: 20.917,5 t |
|
NT |
6.866 t |
|
Light displacement |
11.170,4 t |
|
Loaded displacement |
32.087,9 t |
|
Length |
180,30 m overall 170,80 m between perpendiculars |
|
Breadth |
26,60 m extreme |
|
Draught |
Max: 9,40 m |
|
Keel to highest point |
46,50 m |
|
Air draft |
38,36 m normal ballast condition |
|
Freeboard |
5.411 mm |
|
Depth |
17,80 m |
|
Speed |
Max: 16,0 knots |
|
Built |
2015 |
|
Launch date |
20/01/2015 |
|
Date of completion |
15/10/2015 |
|
Builder |
Nantong Sinopacific Offshore & Engineering Co. Ltd. China |
|
Yard number |
S1017 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Watertight compartments |
6 |
|
Continuous decks |
1 |
|
Propelling type |
Diesel/Gas turbine |
|
Main engine |
2x Wärtsilä SL50DF Tire II - 4 stroke 6 cylinder 500 x 580 mm combustion engines total 11.700 kW at 514 rpm |
|
Propelling system |
1x Screw propeller controllable pitch |
|
Boilers |
1x CHO Aalborg 18,90 m² - 9,0 bar |
|
Shaft generator |
2x 2.250 kVA - 1.875 kW |
|
Generators |
2x Wärtsilä 6L20 DF main diesel generatorsets each 1.261 kVA - 1.009 kW - 1.435 hp at 1.200 rpm |
|
Emergency generator |
1x Diesel generatorset 188 kVA - 150 kW - 238 hp at 1.800 rpm |
|
Number of cargo tanks |
3 |
|
Cargo tanks capacity |
100% - 27.569,7 m³ 98% - 27.018,3 m³ |
|
Deck tank capacity |
100% - 2.2002,0 m³ 98% - 1.962,6 m³ |
|
Minimum temperature |
-104°C |
|
Pumps |
2x Wärtsilä Svanehøj AS DW 200/200-3K+1 cargo pumps each 300 m³/h 2x Wärtsilä Svanehøj AS NMB 150c booster pumps 500 m³/h 2x Centrifugal ballast pumps each 700 m³/h |
|
Manifolds |
Distance bridge front - mid point manifold: 96,40 m Distance bow to mid-point manifold: 92,00 m Distance from stern: 87,65 m Distance from manifold centerline: 3.750 mm |
|
Tank capacities |
HFO: 1.237 m³ MDO: 400,7 m³ LNG/ethane: 1.983,4 m³ |
|
Crew |
21 |
|
Commercial operator |
Evergas management A/S Copenhagen |
|
Technical operator |
Evergas Ship Management Pte. Ltd. |
|
Registered owner |
JASPE 2 SNC |
|
Latest data adjustment |
04 December 2018 |
