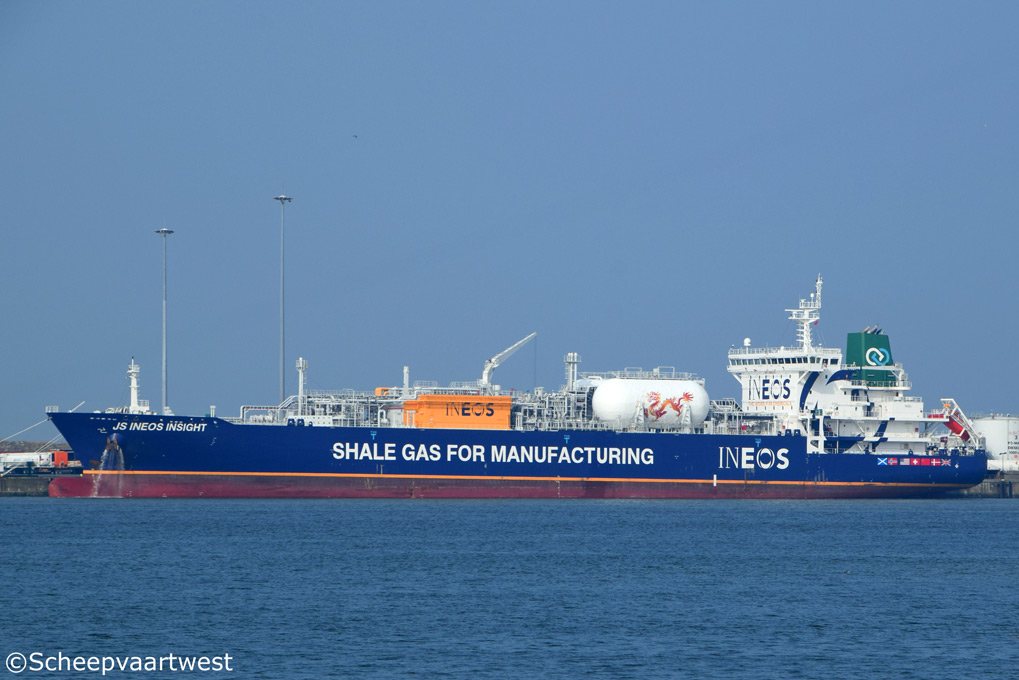

JS Ineos Insight 05
Zeebrugge 11 March 2016

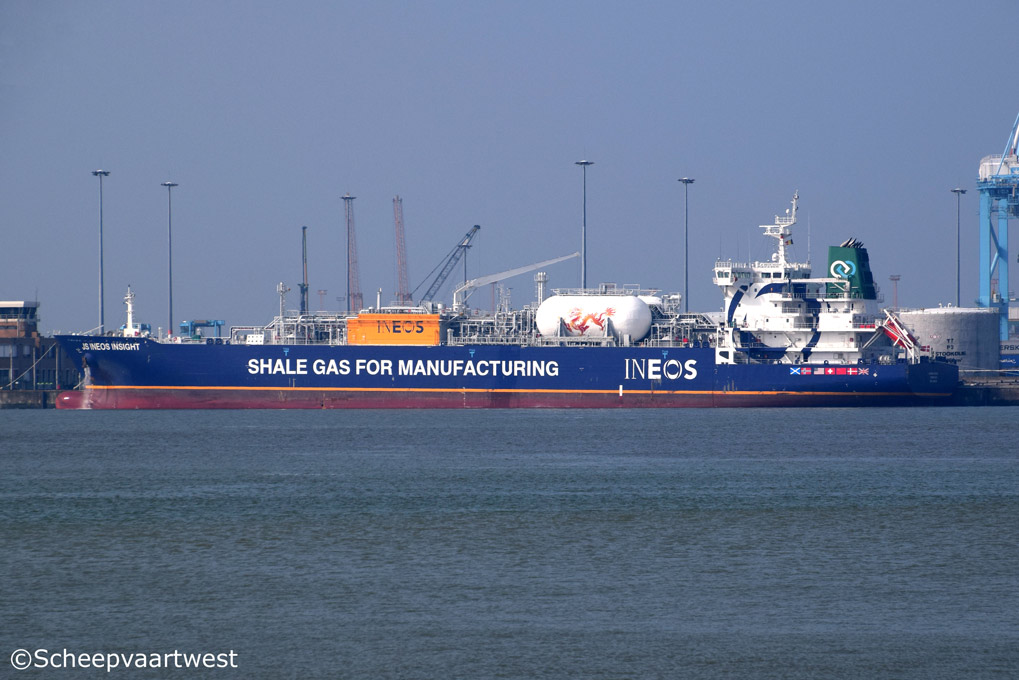

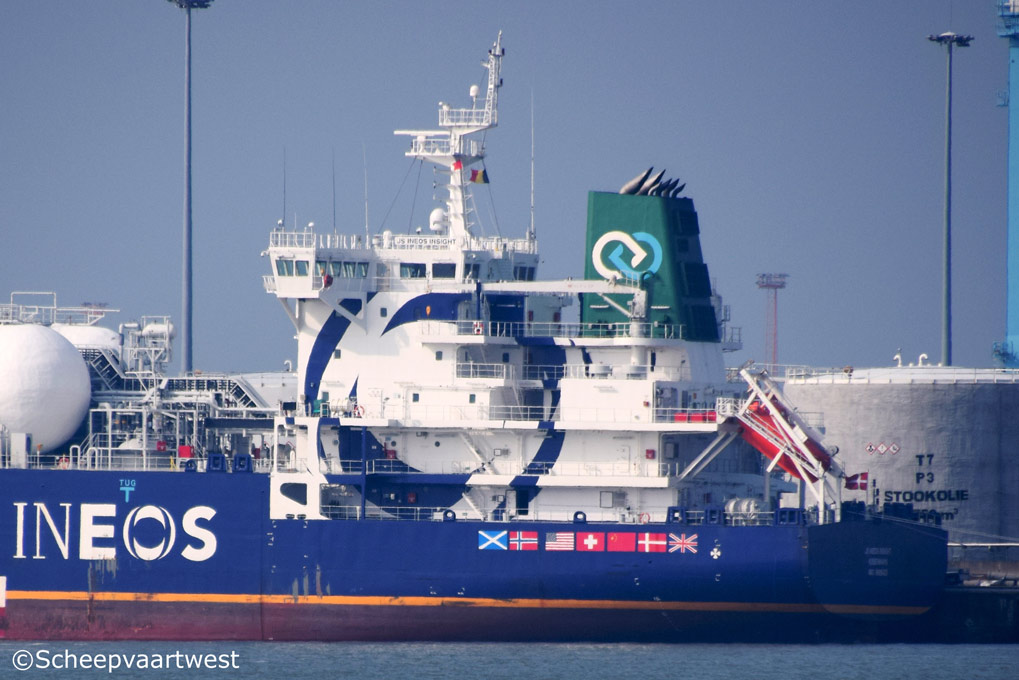

JS Ineos Insight 02   JS Ineos Insight 03
Zeebrugge 11/03/16 Zeebrugge 11/03/16



Name

JS INEOS INSIGHT

Type

Liquefied gas carrier - LNG Tanker

IMO-number

9685425

Call sign

OWFO2

Flag

Denmark

Port of registry

København

GT

22.887 t

DWT

20.917,9 t

NT

6.866 t

Displacement

Light ship: 11.170 t

Summer DWT: 32.087,9 t

Length

180,30 m overall

170,80 m between perpendiculars

Breadth

26,60 m extreme

Draught

Summer: 9,42 m

Air draft

38,36 m normal ballast

Keel to highest point

46,50 m

Depth

11,80 m extreme

Speed

16,0 knots

Built

2015

Keel laid

19.06.2014

Launch date

10.10.2014

Date of completion

28.05.2015

Builder

Nantong SinoPacific Offshore & Engineering
Qidong
Chine

Yard number

S1015

Hull material

Steel

Hull type

Double bottom

Main engine

2x Wärtsilä Type SL50DF Tire II - 4 stroke 6 cylinder diesel engine 5.850 kW total 11.700 kW

Propellers

Controllable pitch propeller

Shaft generator

2x Generators each 1.875 kW

Generators

2x Wärtsilä 6L20 DF generatorsets each 1.056 kW at 1.200 rpm

Emergency generator

1x Diesel generatorset 120 kW at 1.200 rpm

Cargo tanks capacity

100%: 27.566,07 m³

98%: 27.015,21 m³

Deck tanks capacity

100%: 2.000,65 m

98%: 1.960,39 m³

Pumps

2x Centrifugal ballast pump each 700 m³/h

2x Wärtsilä Svanehøj cargo pumps each 350 m³/h

2x Wärtsilä Svanehøj booster pumps each 500 m³/h

Manifolds

Distance bridge front - mid point manifold: 46,40 m

Distance bow to mid-point manifold: 92,00 m

Tank capacities

Fuel oil: 1.236 m³

Diesel oil: 400.8 m³

Fresh water: 254,5 m³

Ballast: 8.505 m³

Crew

21

Operator

Thome Ship Management Pte Ltd.
16 Raffles Quay, #43-01
Hong Leong Building

Singapore City
Republic of Singapore

Commercial operator

Evergas A/S
Kalvebod Brygge 39-41

1560 Copenhagen V

Denmark

Registered owner

SNC Multigas S1015

Latest data adjustment

20 March 2015
