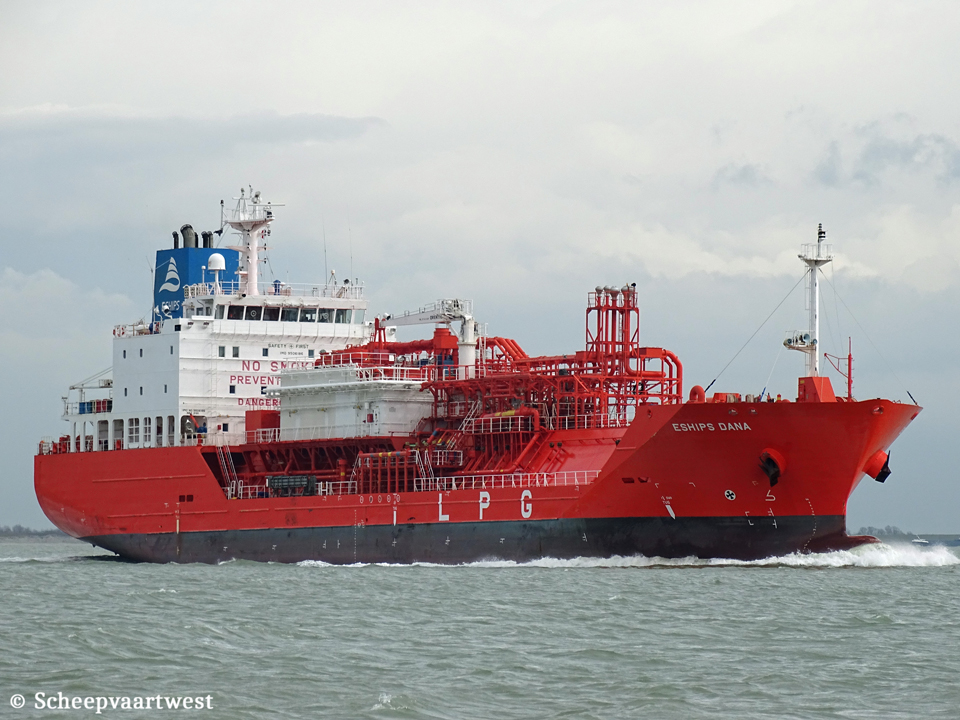

Westerschelde 17 April 2015 |
|
Name |
ESHIPS DANA |
|
Type |
Liquefied gas carrier |
|
IMO-number |
9506186 |
|
Call sign |
ZDJT6 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
GT |
7.267 t Suez: 7.727,03 t |
|
DWT |
Summer: 7.867,80 t |
|
NT |
2.181 t Suez: 5.742,78 t |
|
Length |
116,44 m overall 108,95 m between perpendiculars |
|
Breadth |
18,00 m |
|
Draught |
8,01 m |
|
Keel to masthead |
37,30 m |
|
Air draft |
Lightship: 34,10 m Normal ballast: 31,74 m At loaded summer deadweight: 29,30 m |
|
Freeboard |
Summer: 2,11 m Winter: 2,28 m Lightship: 6,91 m |
|
Depth |
10,10 m |
|
Speed |
14,6 knots |
|
Built |
2010 |
|
Keel laid |
19.10.2009 |
|
Launch date |
16.01.2010 |
|
Date of completion |
03.06.2010 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. |
|
Yard number |
B-5041 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W 6S35MC - 2 stroke 6 cylinder diesel engine 4.480 kW |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, composite Builder: KangRim |
|
Generators |
3x MAN 7L16/24 diesel generatorsets each 600 kW |
|
Emergency generator |
1x Cummins 6CT-8.3-D(M) diesel generatorset |
|
Bow thruster |
1x 455,62 kW / 611 hp |
|
Number of cargo tanks |
2 |
|
Cargo tank capacity 98% |
Tank 1: 3.210,256 m³ Tank 2: 3.210,654 m³ Total: 6.420,91 m³ |
|
Number of pumps |
2x Deepwell carg0 pumps each 350 m³/h 2x Centrifugal ballast pumps each 150 m³/h |
|
Manifold |
Bow to centre manifold: 55,40 m Stern to centre manifold: 61,00 m Distance bridge front to centre of manifold: 33,90 m Distance between cargo manifold centres: 4.200 mm Distance ships rail to manifold: 2.463 mm Distance manifold to ships side: 2.625 mm Top of rail to centre of manifold: 210 mm Distance main deck to centre of manifold: 3.200 mm |
|
Min temp |
-48°C |
|
Pressure |
5,5 bar |
|
Tank capacities |
Ballast capacity: 3.380 m³ Marine diesel oil: 83,90 m³ Fuel oil: 509,10 m³ |
|
Anchor equipment |
Length: 515,50 m Diameter: 48,00 mm |
|
Lifting equipment |
1x Crane - SWL 3,0 t midship Outreach of crane: 6,00 m |
|
Manager |
Anglo-Eastern Shipmanagement (S) Pte. Ltd. |
|
Owner |
Eships |
|
Registered owner |
Eships LPG 1 Ltd. |
|
Latest data adjustment |
20 November 2016 |
