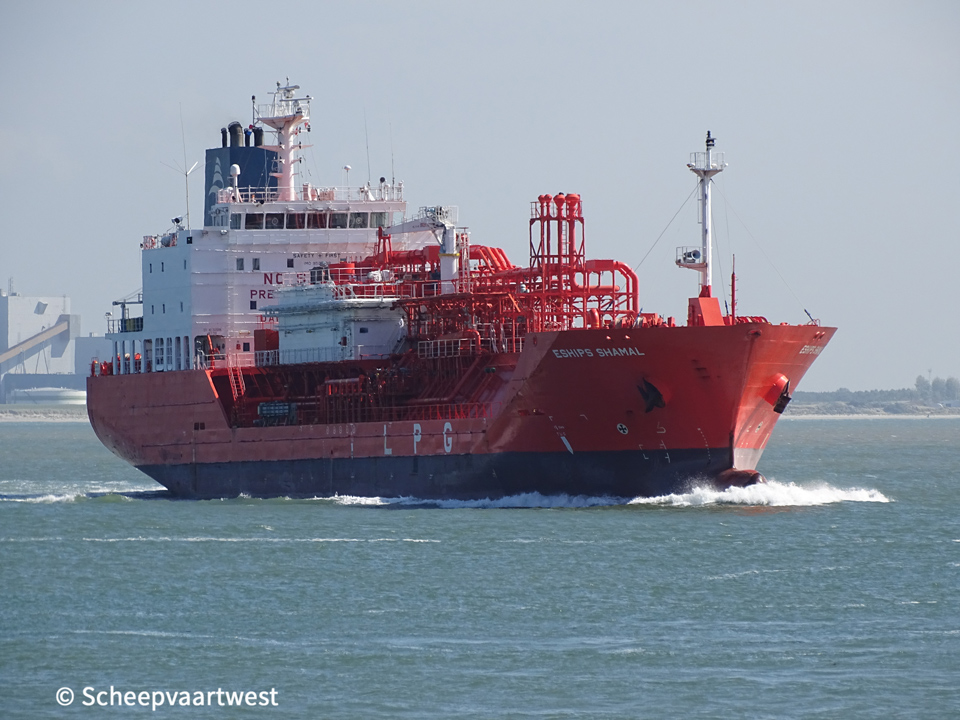

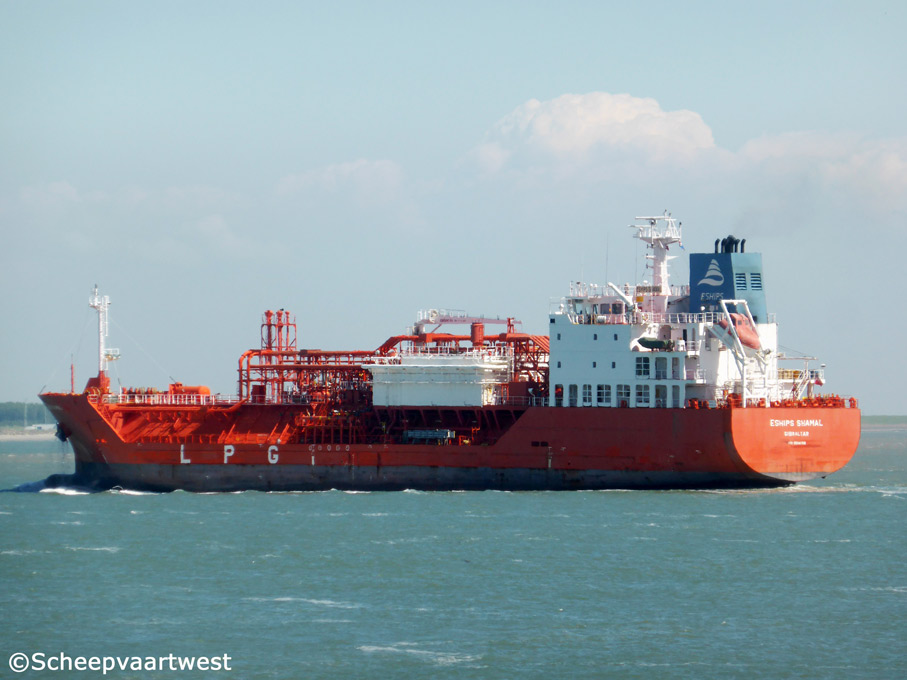

Westerschelde 19 October 2020 |
 |
 |
 |
 |
 |
 |
|||||

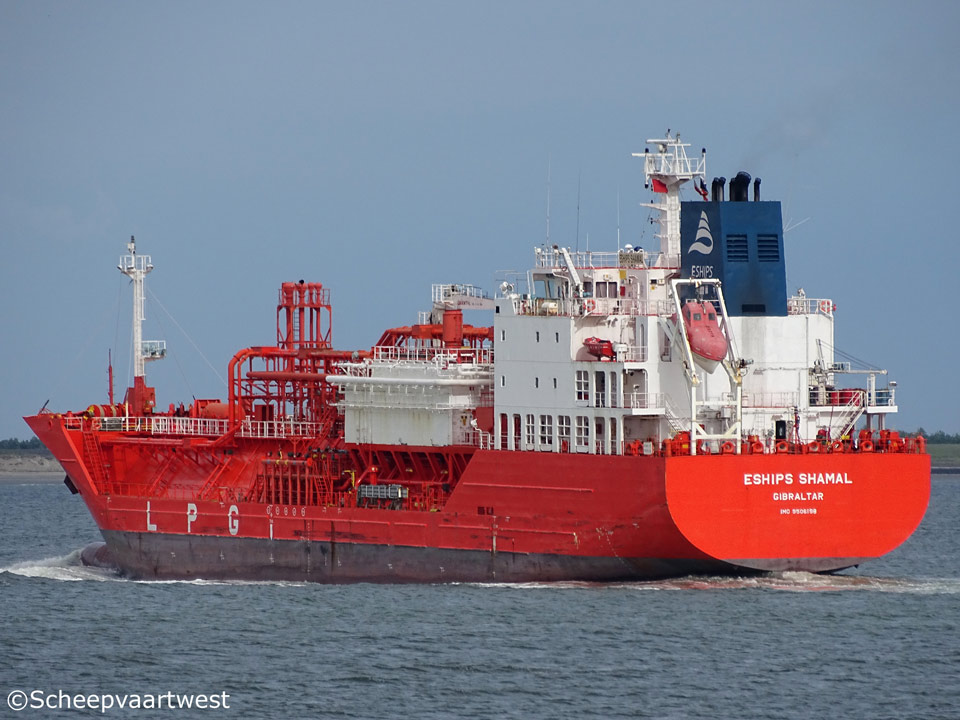

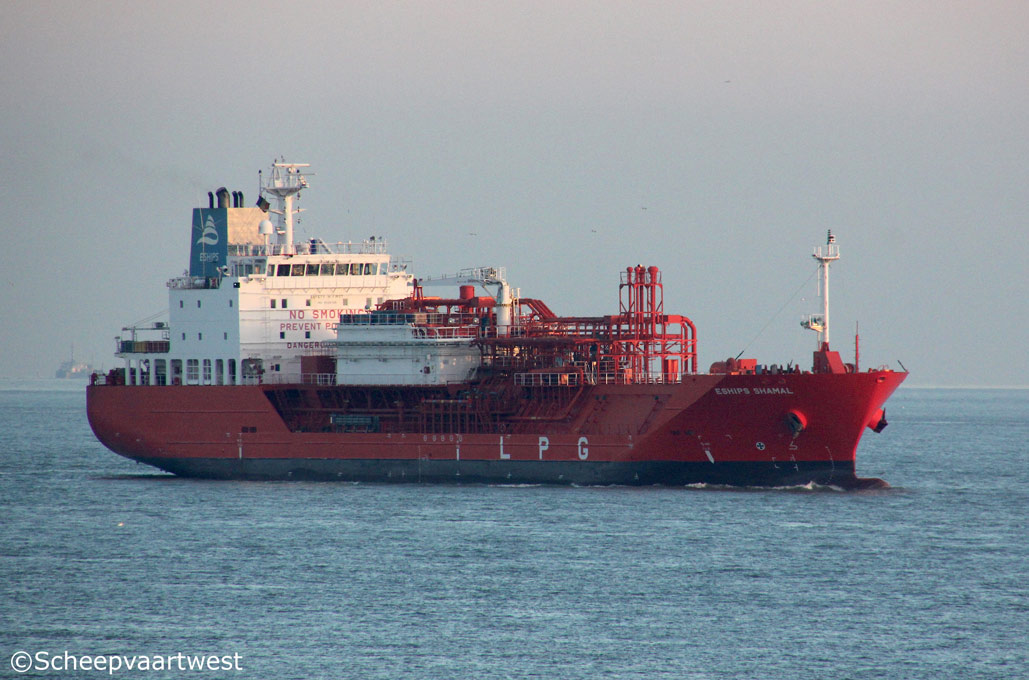

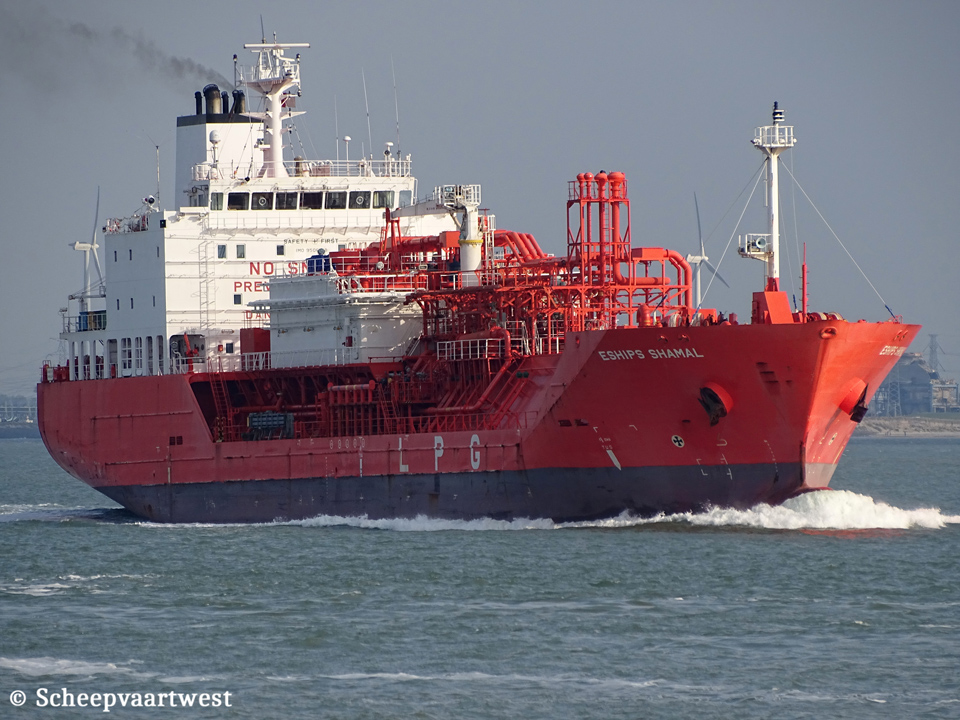

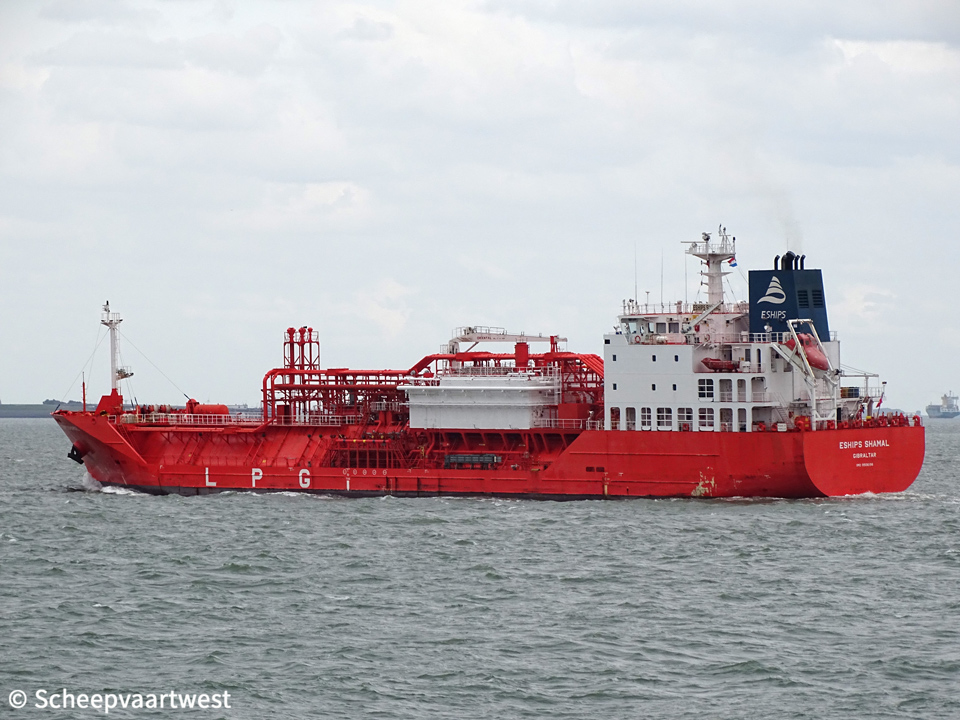

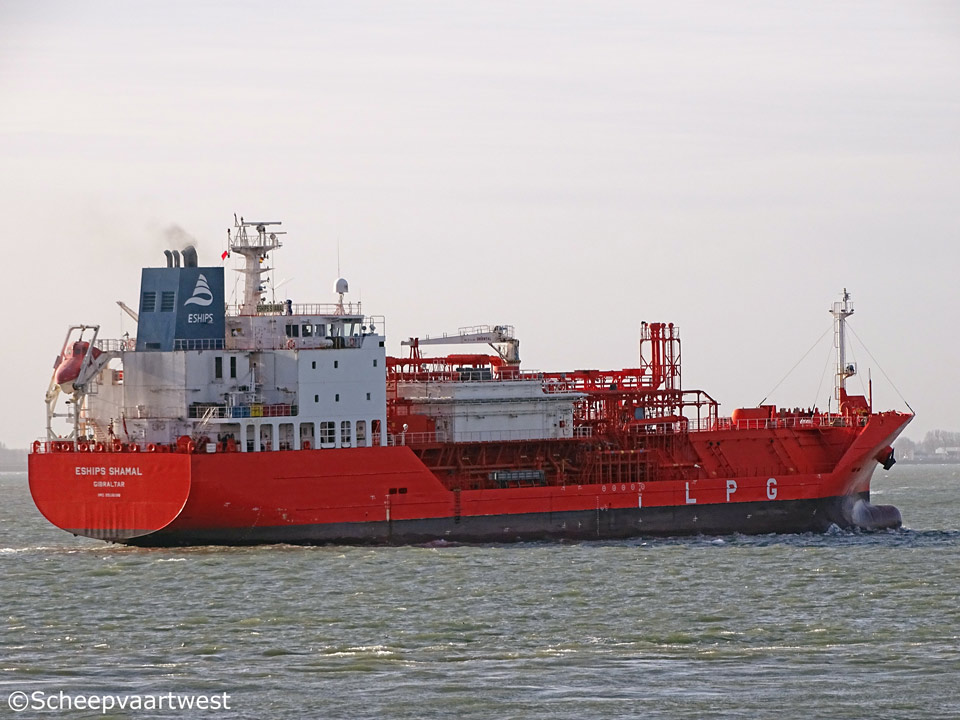

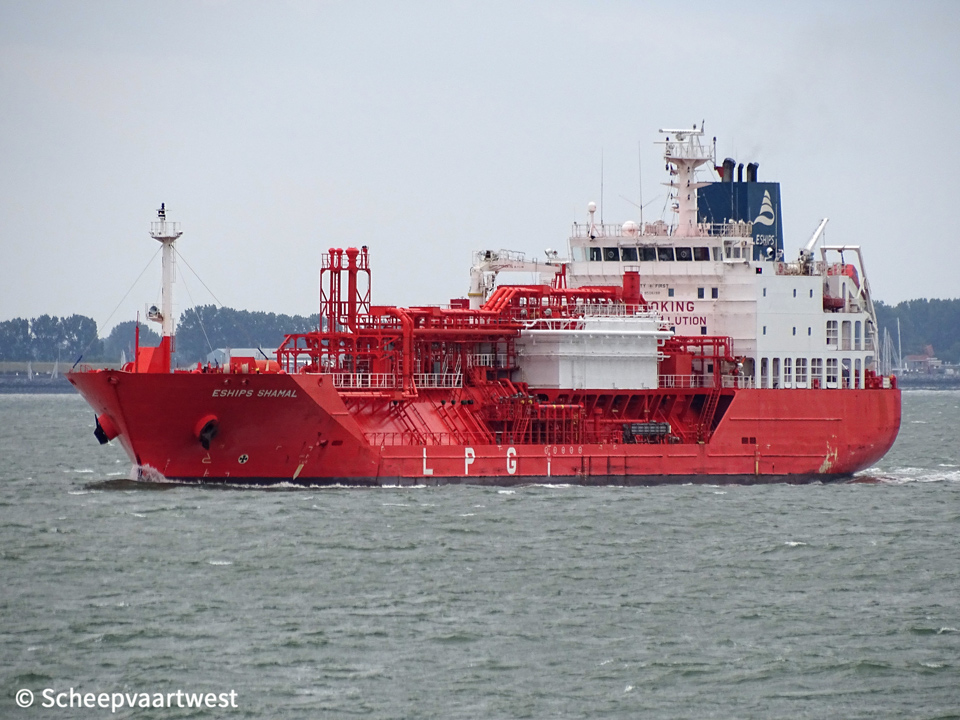

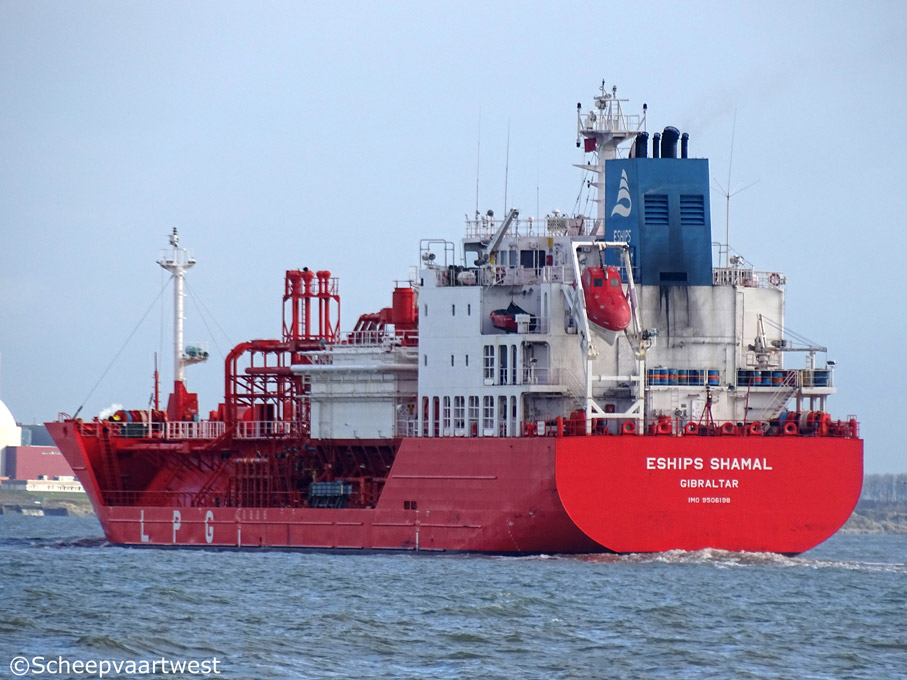

| Westerschelde 21/05/15 | Westerschelde 25/11/15 | Westerschelde 21/01/16 | Westerschelde 12/01/17 | Westerschelde 03/06/17 | Westerschelde 12/09/19 |
 |
 |
 |
||

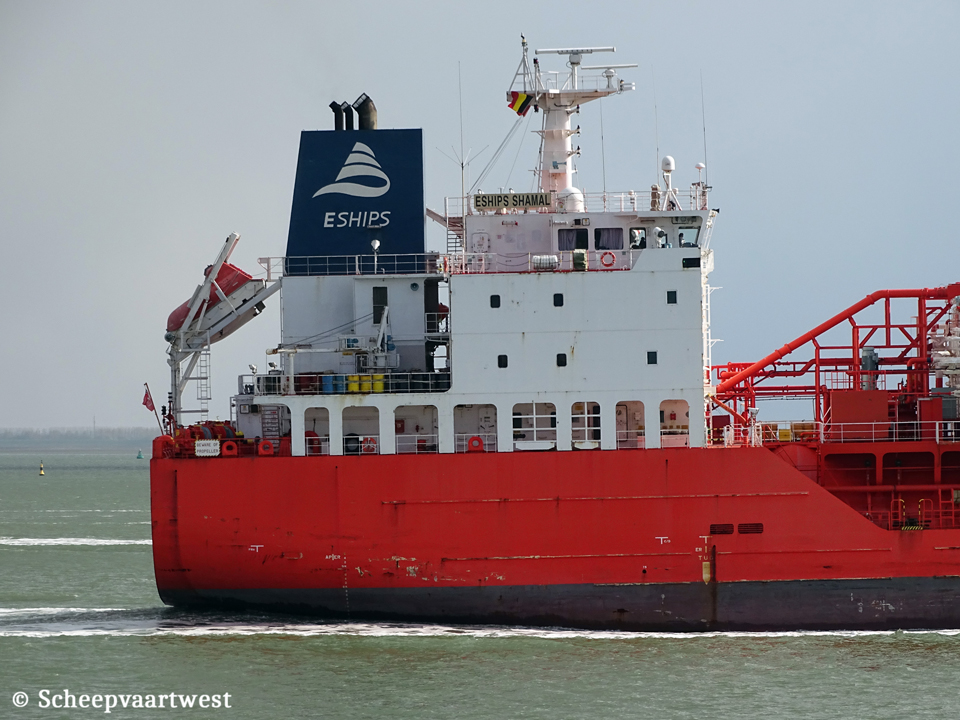

| Westerschelde 11/08/19 | Westerschelde 11/08/19 | Westerschelde 13/04/19 |
|
Name |
ESHIPS SHAMAL |
|
Type |
Liquefied gas carrier - LPG |
|
IMO-number |
9506198 |
|
Call sign |
ZDJT9 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
2010 - 2010 Marshall Islands, Majuro |
|
GT |
7.267 t Suez: 7.727,03 t |
|
DWT |
Summer: 7.879,6 t Winter: 7.561,0 t |
|
NT |
2.181 t Suez: 5.742,78 t |
|
Displacement |
Summer: 11.987,1 t Winter: 11.680,2 t |
|
Length |
116,40 m overall 108,97 m between perpendiculars |
|
Breadth |
18,02 m extreme |
|
Draught |
Summer: 8,01 m Winter: 7,83 m Lightship: 3,20 m |
|
Keel to masthead |
37,30 m |
|
Air draft |
Lightship: 34,10 m Normal ballast: 31,74 m At loaded summer deadweight: 37,30 m |
|
Freeboard |
Summer: 2,11 m Winter: 2,28 m Lightship: 6,91 m |
|
Depth |
10,10 m moulded |
|
Speed |
Max: 14,60 m / Eco: 13,0 knots ballast Max: 14,60 m / Eco: 12,5 knots laden |
|
Built |
2010 |
|
Keel laid |
18/01/2010 |
|
Launch date |
14/04/2010 |
|
Date of completion |
02/08/2010 |
|
Builder |
STX Offshore & Shipbuilding Co., Ltd. Pusan South Korea |
|
Yard number |
B-5043 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S35MC7 - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine Mcr 4.440 kW / 6.037 hp at 173,0 rpm Manufacturer: MAN Diesel A/S - Denmark |
|
Propellers |
1x Fixed pitch propeller - aft at 173,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite MC4701P39 Builder: KangRim |
|
Generators |
3x MAN 7L16/24 - 4 stroke 7 cylinder 160 x 240 mm diesel engines each Mcr 660 kW connected with generators each 600 ekW Builder: MAN Diesel & Turbo SE |
|
Emergency generator |
1x Cummins 6CT-8.3-D(M) diesel generatorset |
|
Bow thruster |
1Retract. directional thruster 450 kW / 612 bhp, forward |
|
Number of cargo tanks |
2 |
|
Total cubic capacity 98% |
Tank 1: 3.210,25 m³ Tank 2: 3.210,65 m³ Total: 6.420,91 m³ |
|
Number of pumps |
2x Deepwell cargo pumps each 350 m³/h 2x Centrifugal ballast pumps each 150 m³/h |
|
Manifolds |
Bow to centre manifold: 55,40 m Stern to centre manifold: 61,00 m Distance bridge front to centre of manifold: 33,90 m Distance between cargo manifold centres: 4.200 mm Distance ships rail to manifold: 2.463 mm Distance manifold to ships side: 2.625 mm Top of rail to centre of manifold: 210 mm Distance main deck to centre of manifold: 3.200 mm |
|
Min. temp |
-48°C |
|
Pressure |
5,5 bar |
|
Tank capacities |
Ballast capacity: 3.380 m³ Marine diesel oil: 83,90 m³ Fuel oil: 509,10 m³ |
|
Anchor equipment |
Length: 515,50 m Diameter:48 mm |
|
Lifting equipment |
1x Crane - SWL 3,0 t midship Outreach of crane: 6,00 m |
|
Crew size |
14 |
|
Technical operator |
V.Ships France SAS 34 Place Viarme 44000 Nantes France |
|
Commercial operator |
CSSA Chartering and Shipping Services SA. LPG Operations Department, World Trade Centre 1 1215 Geneva 15 Airport Switzerland |
|
Owner |
Eships Emirates Ship Investment Company Abu Dhabi United Arab Emirates |
|
Registered owner |
Eships LPG 2 Limited Trust company complex Ajeltake Road, AjeltakeIsland Majuro Marshall Island |
|
Renamed |
11/2020 Tristar Shamal Gibraltar - Call sign: ZDJT9 Owner: Eships Lpg 2 Ltd. Manager: V Ships France S.A.S. |
|
Latest data adjustment |
18 August 2022 |
