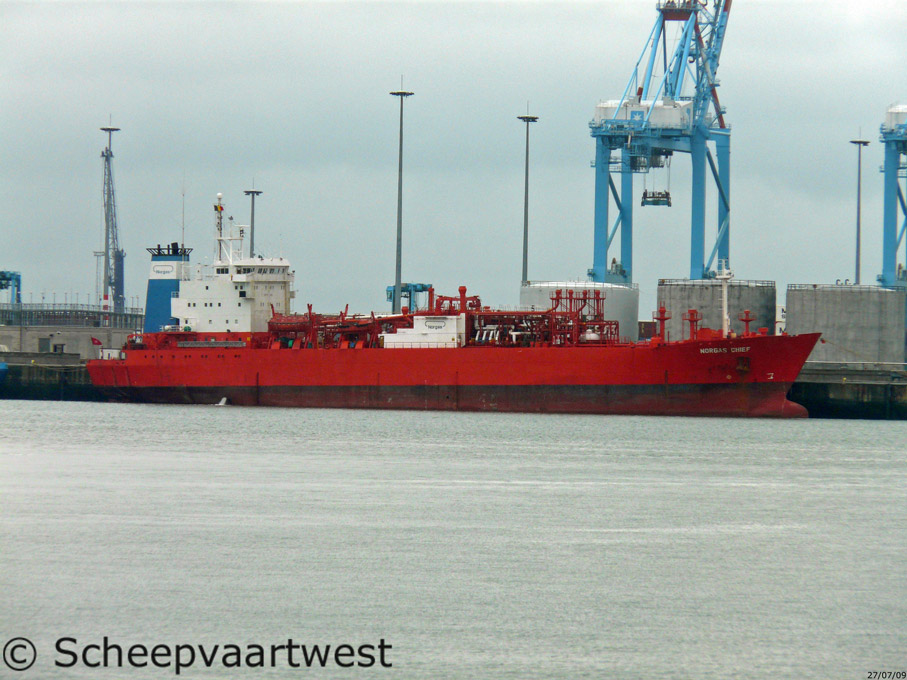

Norgas Chief - IMO 8124515

Name

NORGAS CHIEF

Previous name

1983 - 05.07.1988 Einar Tambarskjelve

Type

Liquefied gas tanker

LNG tanker

IMO-number

8124515

Call sign

VRYH3

Flag

China

Previous flags

17.02.1985 Norway

05.07.1988 Liberia

Port of registry

Hong Kong

GT

7.791 t

DWT

Summer: 8.378 t

NT

2.338 t

Length

119,56 m overall

109,60 m between perpendiculars

111,19 m registered

Breadth

19,02 m over all

Draught

Summer: 8,31 m

Bow to bridge

91,33 m

Keel to masthead

42,50 m

Freeboard

Summer: 3.009 mm

Depth

11,30 m moulded

Speed

15,0 knots

Built

1983

Keel laid

24.07.1982

Launch date

30.11.82

Date of completion

20.06.1983

First movement

10.06.1983

Builder

Schichau Unterweser AG
Werftstr. 2
27576 Bremerhaven
Federal Republic of Germany

Yard number

2285

Hull type

Single hull

Watertight bulkheads

8

Continuous decks

1

Main engine

1x MAK 6 M 601 - 4 stroke single acting 6 cylinder 580 x 600 mm diesel engine - 6.000 kW

Starter type: Compressed air direct

Year of manufacture: 1982

Manufacturer: MaK Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating surface: 19,5 m²

1x Steam boiler, exhaust gas heated - 9,0 bar
Heating surface: 144,0 m²

Year of Manufacture: 1982

Manufacturer: Aalborg Boilers A/S
9100 Aalborg
Kingdom of Denmark

Electric installations

1x 440/220 V - 1.800 kVA

1x 440 V - 1.800 kVA

1x 440 V - 169 kVA

Shaft generator

1x 1.800 kVA

Generators

2x Main diesel generatorsets each 900 kVA

Emergency generator

1x Diesel generatorset 169 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

Bow thruster

1x Transverse thruster forward

Number of cargo tanks

4

Cargo capacity

8.070 m³

Tank capacities

Water ballast: 1.935 m³

Fuel oil: 705 m³

Min. temp

-104 °C

Pressure

5,0 bar

Anchor equipment

3x Anchors weight each 4.320 kg

Chain Length: 550 m

Crew

24

Manager

Norgas Carriers AS
Karenslyst Alle 8b
0212 Oslo
Norway

Operator

Norgas A.S.

Owner

I.M. Skaugen Marine Services Pte. Ltd.
78 Shenton Way #17-03 Kippo Centre
Singapore 079120
Republic of Singapore

Scrapped

20/05/2013 Alang - India
