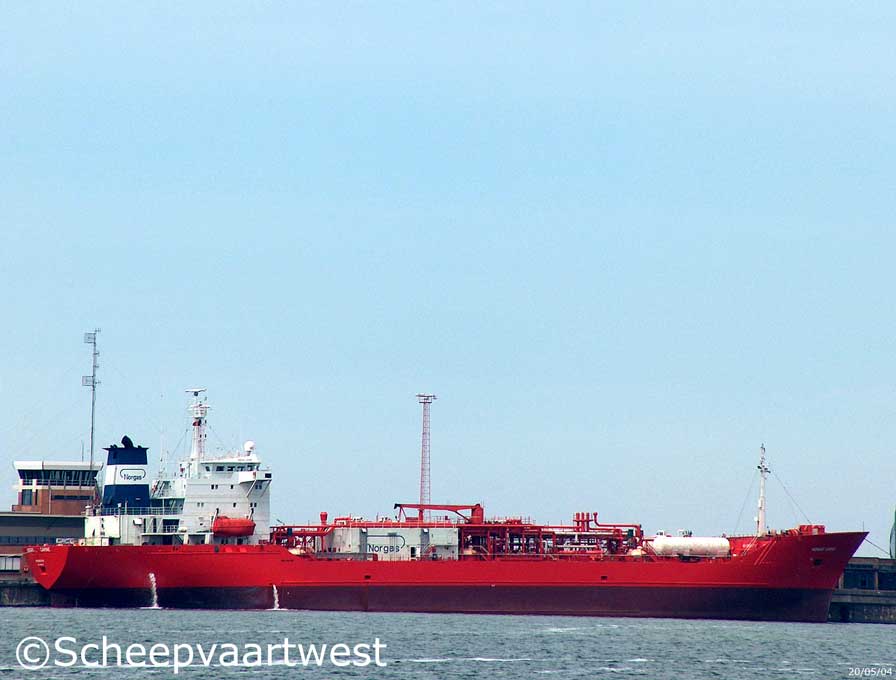

| Zeebrugge 20 May 2004 |
|
Name |
NORGAS CARINE |
|
Previous names |
1989 - 1996 Teviot |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8803381 |
|
Call sign |
9VCK8 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore |
|
GT |
7.296 t |
|
DWT |
Summer: 9.422 t |
|
NT |
2.201 t |
|
Length |
132,20 m overall |
|
Breadth |
17,80 m registered |
|
Draught |
Summer: 8,60 m |
|
Forecastle |
15,20 m |
|
Freeboard |
3.313 mm |
|
Depth |
11,90 m |
|
Speed |
18,5 knots |
|
Purpose |
To degas |
|
Built |
1989 |
|
Keel laid |
15.04.1988 |
|
Launch date |
01.01.1988 |
|
Date of completion |
05.1989 |
|
Builder |
Heinrich Brand Schiffswerft GmbH & Co. KG |
|
Yard number |
229 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 4 RTA 58 - 2 stroke single acting 4 cylinder 580 x 1.700 mm diesel engine - 6.380 kW at 127 rpm |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
Thermal oil heater, oil fired - 10,0 bar |
|
Electric installations |
1x Plant 440/220 V - 2.745 kVA |
|
Generators |
3x Main diesel generatorsets each 915 kVA |
|
Emergency generator |
1x Diesel generatorset 105 kVA |
|
Compressed air receivers |
2x Receivers each 3.800 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - forward |
|
Number of cargo tanks |
3 |
|
Cargo capacity |
8.328 m³ |
|
Largest cargo tank |
3.019 m³ |
|
Min. temperature |
-104°C |
|
Anchor Equipment |
3x Anchors weight each 3.780 kg |
|
Manager |
Norgas Carriers AS |
|
Operator |
Norgas Carriers AS |
|
Owner |
I.M. Skaugen Marine Services Pte. Ltd. |
