| Westerschelde 06 November 2011 |
 |
 |
 |
 |
 |
 |
|||||

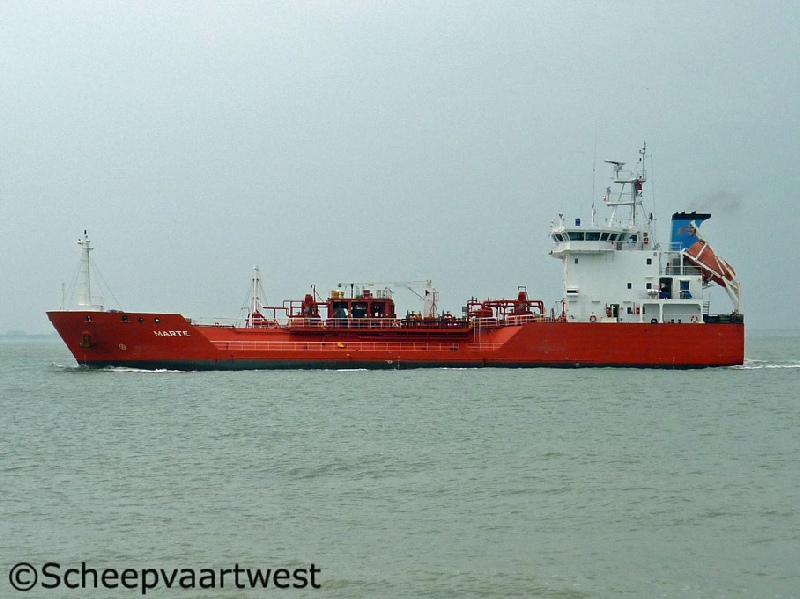

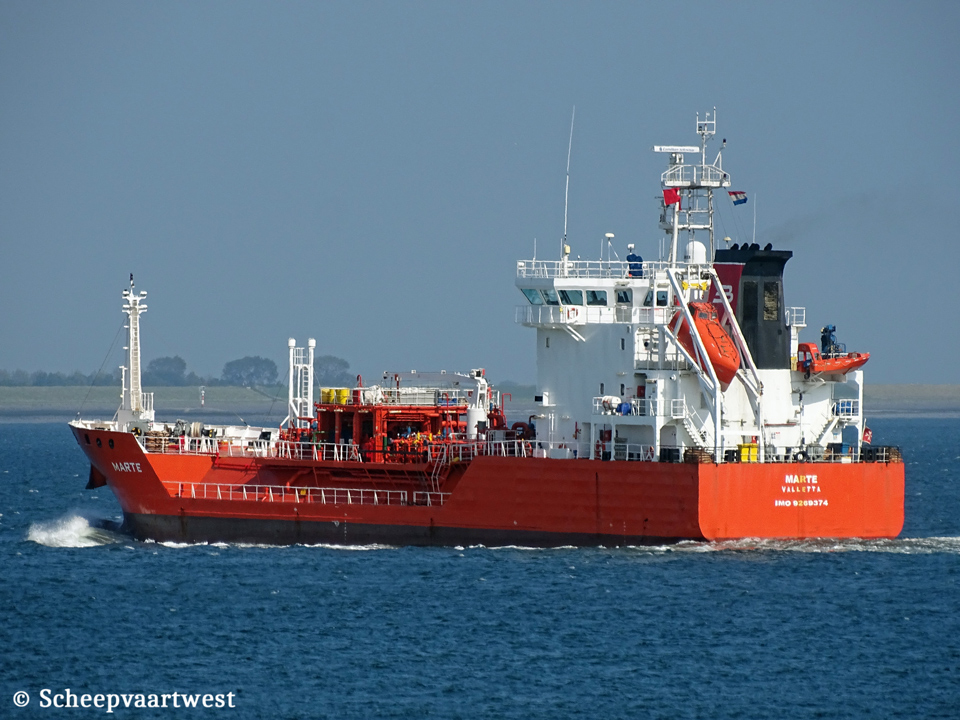

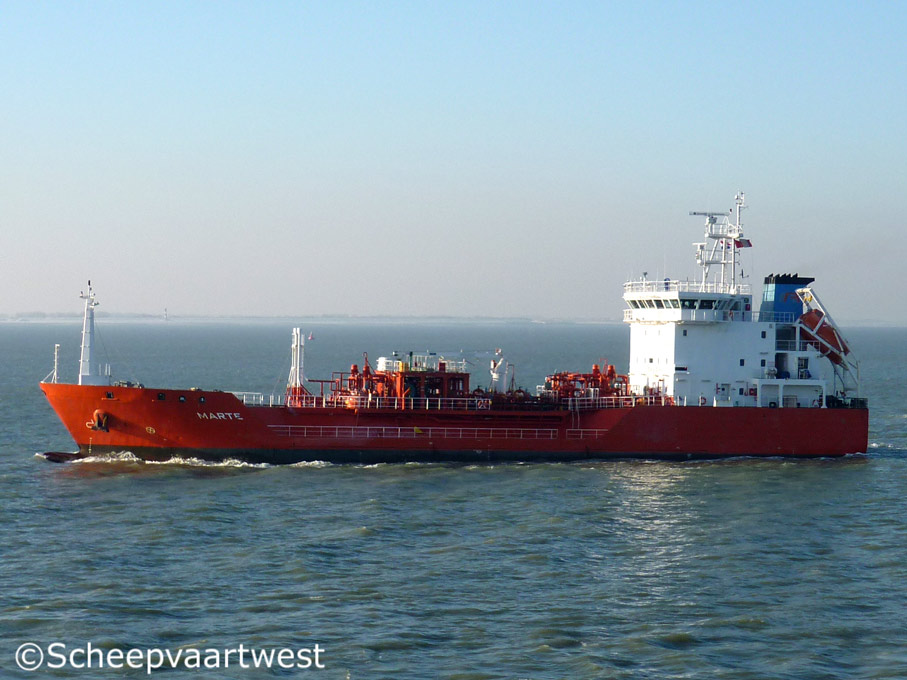

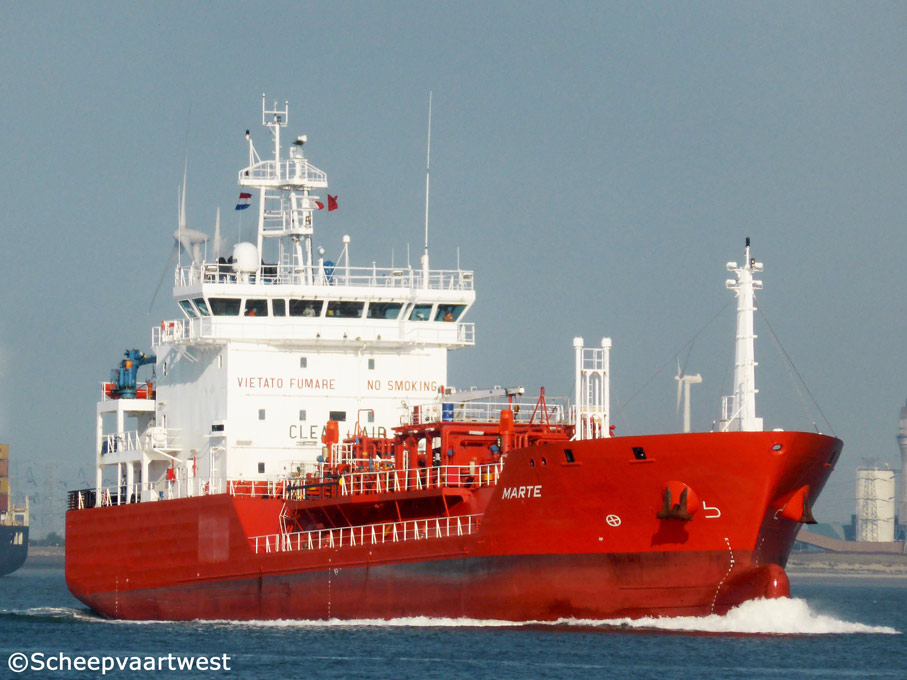

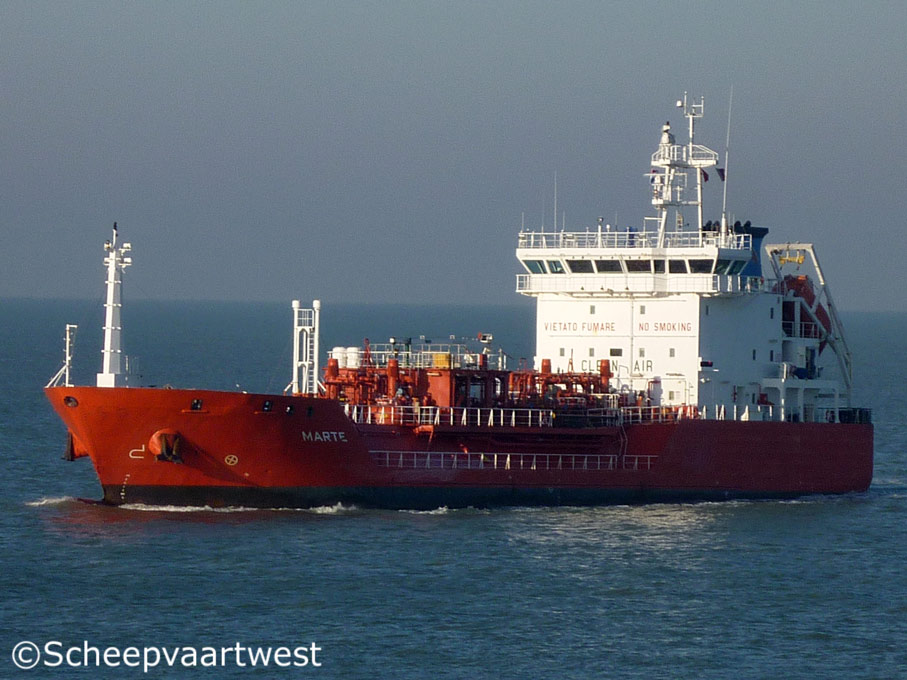

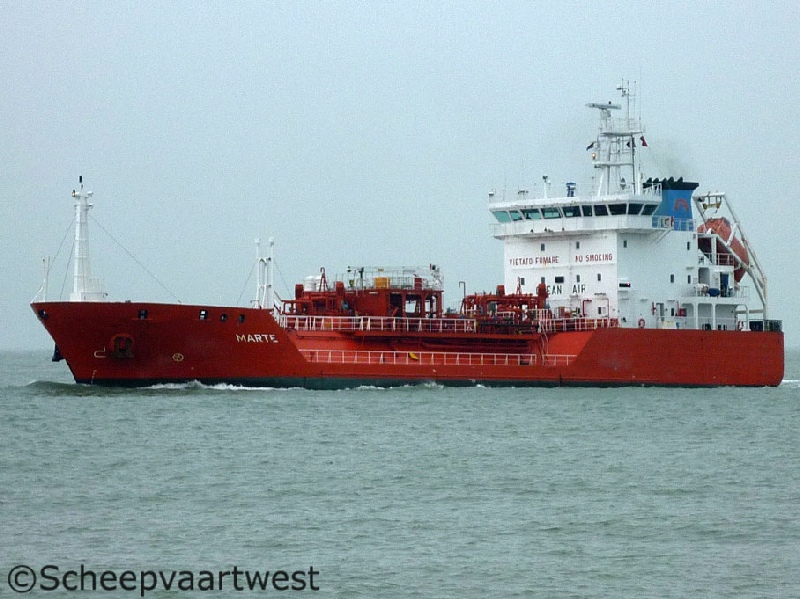

| Westerschelde 06/11/11 | Zeebrugge 18/04/09 | Westerschelde 07/02/12 | Westerschelde 07/02/12 | Westerschelde 22/07/14 | Westerschelde 26/06/19 |
|
Name |
MARTE |
|
Previous names |
2004 - 06/2004 Taygete Star |
|
Type |
Liquefied gas tanker |
|
IMO-number |
9269374 |
|
Call sign |
9HA2059 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
Italy, Genova - Call sign: IBSR |
|
GT |
2.708 t |
|
DWT |
LPG draft: 2.466 t VCM draft: 3.090 t |
|
NT |
820 t |
|
Length |
74,94 m overall 69,70 m between perpendiculars 68,59 m registered |
|
Breadth |
14,14 m moulded |
|
Draught |
Summer: 6,49 m |
|
Bow to bridge |
56,40 m |
|
Keel to masthead |
33,40 m |
|
Freeboard |
1.009 mm |
|
Depth |
7,50 m |
|
Speed |
LPG draft: 13,0 knots (max.: 4 Bft) Ballast draft: 13,5 knots (max.: 4 Bft) |
|
Loadline |
Deadweight (lightship): 2.020 t Deadweight (normal ballast): 1.020 t Deadweight (segregated ballast): 1.020 t Displacement (normal ballast): 3.040 t Displacement (segregated ballast): 3.040 t Displacement (summer): 5.100 t Draft (lightship): 2,80 m Draft (normal ballast): 3,98 m Draft (segregated ballast): 3,98 m Draft (summer): 6,49 m Draught aft (normal ballast): 5,40 m Draught fore (normal ballast): 2,40 m Freeboard (lightship): 4,70 m Freeboard (normal ballast): 3,52 m Freeboard (segregated ballast): 3,52 m Freeboard (summer): 1,01 m FWA (summer draft): 134,0 mm TPC Immersion (summer draft): 9,56t |
|
Built |
2004 |
|
Keel laid |
27/03/2003 |
|
Launch date |
01/07/2004 |
|
Date of completion |
26/08/2004 |
|
First movement |
03/09/2004 |
|
Builder |
Cantiere Navale De Poli Venezia Italy |
|
Yard number |
197 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
Diesel-electric: 4x Yanmar 6N21AL-SV – 4 stroke 6 cylinder combustion diesel engine 3.824 kW / 5.200 hp at 1.000 rpm |
|
Electrical propulsion engine |
ASI Robicon - 2x each 1.050 kW at 720 rpm |
|
Propelling system |
2x Schottel, Azimuthal STP 1010 LS |
|
Generator |
4x Diesel generatorsets each 800 kW |
|
Bow thruster |
1 x 300 kW |
|
Min. tank temperature |
-48°C |
|
Max. tank pressure |
12,0 bar |
|
Min. tank pressure |
-0,3 bar |
|
Cargo segregation |
2 |
|
Cargo capacity |
Tank 1: 1.393 m³ Tank 2: 1.546 m³ Total: 2.940 m³ |
|
Number of pumps |
2x Deepwell cargo pumps each 250 m³/h 1x Booster pump 250 m³/h |
|
Loading rate |
680 m³/h |
|
Discharging rate |
1.000 m³/h |
|
Cargo heater |
125 m³/h |
|
Tank capaciteis |
Ballast 664 m³ |
|
Manifolds |
Distance from stern: 32,00 m |
|
Crew |
13 |
|
Manager |
Maritime Performances (de Poli tankers BV) Barendrecht The Netherlands |
|
Operator |
Anthony Veder Van Vollenhovenstraat 3 3016 BE Rotterdam The Netherlands |
|
Owner |
Maritime Performances BV 2993LE Barendrecht The Netherlands |
|
Registered owner |
Island Ocean Marine S.A. |
|
Renamed |
2019 B Gas Neptune Malta, Valetta - Call sign: 9HA2059 Registered owner: Bergshav Shipping Ltd. Manager: B-GAS A/S, Copenhagen - Denmark |
|
Latest data adjustment |
28 July 2021 |
