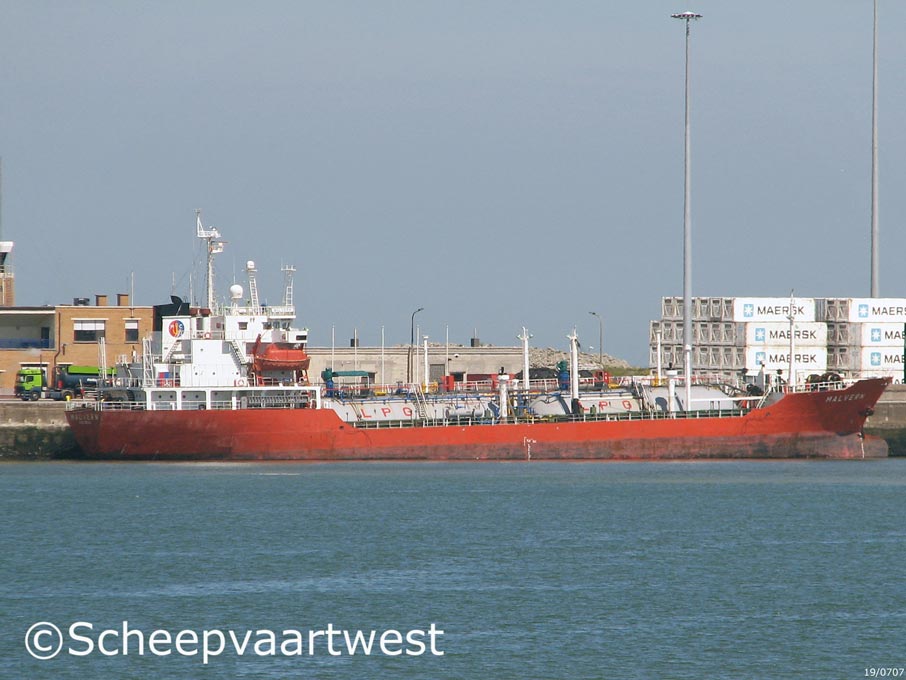

| Zeebrugge 19 July 2007 |
|
Name |
MALVERN |
|
Type |
Liquefied gas tanker |
|
IMO-number |
8818001 |
|
Call sign |
C6PU2 |
|
Flag |
Bahamas |
|
Previous flag |
Republic of Panama |
|
Port of registry |
Nassau |
|
GT |
3.368 t registered Suez: 3609,44 t Panama: 3704,46 t |
|
DWT |
4.148 t |
|
NT |
1.011 t |
|
Length |
99,10 m overall |
|
Breadth |
15,80 m moulded |
|
Moulded L x B x D |
92,00 x 15,80 x 7,30 m |
|
Registered L x B x D |
92,00 x 15,80 x 7,30 m |
|
Draught |
Summer: 5,678 m |
|
Keel to masthead |
31,00 m |
|
Bow to bridge |
77,15 m |
|
Parallel body length |
41,00 m normal ballast 52,00 m summer deadweight 37,00 m light ship |
|
Freeboard |
Summer: 1.658 mm |
|
Depth |
7,30 m registered |
|
Speed |
Service: 12,7 knots Trial: 14,8 knots |
|
Built |
1990 |
|
Keel laid |
08.08.1989 |
|
Launch date |
31.10.1989 |
|
Date of completion |
20.01.1990 |
|
Builder |
Kurinoura Dockyard |
|
Yard number |
S275 |
|
Hull type |
Double bottom |
|
Main engine |
1x Mitsubishi 6UEC37LA. - 2 stroke single acting 6 cylinder 370 c 880 mm diesel engine - 2.427 kW / 3.300 hp at 195,0 rpm Manufacturer: Akasaka Diesels Ltd. |
|
Number of screws |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 0,90 t/h Manufacturer: Miura |
|
Generators |
3x Main diesel generatorsets each 605 kVA |
|
Cargo capacity |
3.206 m³ |
|
Tank capacities |
Fuel oil: 458 m³ Fresh water: 209 m³ Water ballast: 1.410 m³ |
|
Manifolds |
Bridge front - mid pt. Manifold: 29,95 m Bow to mid-point manifold: 47,20 m Stern to mid-point manifold: 52,40 m |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GMBH & Co. KG |
|
Owner |
Sphinx Limited |
|
Previous owner |
MC Shipping |
|
Registered Owner |
Beteiligungsgesellschaft LPG Tankerflotte MBH & CO. KG |
