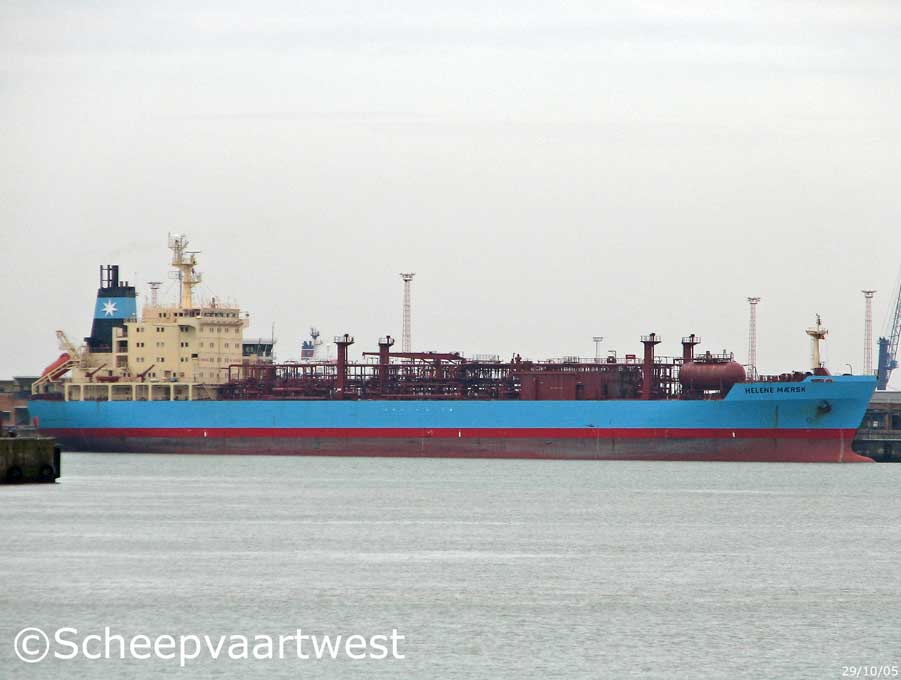

| Zeebrugge 29 October 2005 |
|
Name |
HELENE MAERSK |
|
Type |
Liquefied Gas Tanker |
|
IMO-number |
9034705 |
|
Call sign |
OXPQ5 |
|
Flag |
Denmark |
|
Port of registry |
Copenhagen |
|
GT |
18.360 t registered |
|
DWT |
19.750 t |
|
NT |
5.508 t registered |
|
Length |
159,98 m overall |
|
Breadth |
25,63 m |
|
Draught |
Summer: 10,92 m |
|
Freeboard |
5.513 mm |
|
Depth |
16,40 m |
|
Speed |
18,0 knots |
|
Built |
1993 |
|
Keel laid |
21.08.1992 |
|
Launch date |
12.12.1992 |
|
Date of completion |
09.03.1993 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. |
|
Yard number |
776 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MAN Burmeister & Wain 7L.60MC - 2 stroke single acting 7 cylinder 1.600 x 1.944 mm diesel engine - 13.395 kW / 18.200 hp at 123 rpm |
|
Number of screws |
1x Screw propeller solid at 123 rpm |
|
Boilers |
1x CHM Aalborg 68,70 m² - 8,1 bar |
|
Electrical installation |
Power voltage:440 V |
|
Generators |
3x Diesel generatorsets each 1.225 kVA - 980 kW - 1.425 hp |
|
Number of tanks |
8x Pressurised cylindrical gas tanks |
|
Cargo volume |
20.682 m³ |
|
Minimum temperature |
-48,0°C |
|
Fuel capacity |
2.930,60 m³ |
|
Owner |
A.P.Møller-Mærsk A/S |
|
Renamed |
01.09.2006 Arctic Gas |
